WDGA 58B CANopen LIFT galv. isolation

Absolute shaft encoder, magnetic, CANopen LIFT WDGA 58B;
with connector D-SUB, 9-pin;
Galvanic isolation;
Clamping flange;
Housing: Ø 58 mm

16/32-bit Single-turn/Multi-turn;
Shaft: Ø 6 mm, Ø 8 mm, Ø 10 mm, Ø 3/8";
Communication Profile according to CiA 301
Application Profile CANopen Lift CiA 417;
binary code

Data sheetGeneral technical data absolute encoders CANopen (PDF 627 kB)
Drehgeber WDGA58B CANLIFT galv
Highlights
  • EnDra® maintenance-free and environmentally friendly
  • CANopen LIFT, SSingle-turn/Multi-turn
  • Communication Profile according to CiA 301
  • Application Profile CANopen Lift CiA 417
  • Single-turn/Multi-turn (16 bit / 32 bit)
  • Future-oriented technology with 32 Bit processor
  • 2-colour-LED as indicator for operating condition and error message appropriate CiA 303-3
  • High shaft load up to 220 N radial, 120 N axial
Product details

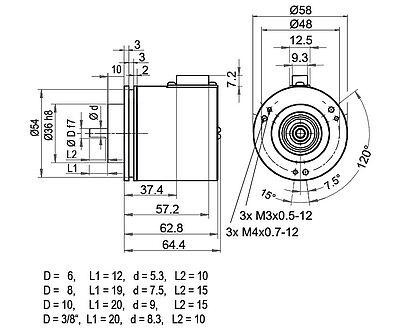

Flange
clamping flange
Housing
Ø 58 mm
steel case chrome-plated, magnetic shielding
Resolution
Single-turn Resolution

65,536 steps/360° (16 bit)

Multi-turn Resolution

up to 32 bit

Shaft
Ø 6 mm
Advice: Attention: No option AAO = full IP67 version
Shaft length: L: 12 mm
Max. Permissible shaft loading radial: 125 N
Max. Permissible shaft loading axial: 120 N
Ø 8 mm
Advice: Attention: No option AAO = full IP67 version
Shaft length: L: 19 mm
Max. Permissible shaft loading radial: 125 N
Max. Permissible shaft loading axial: 120 N
Ø 10 mm
Shaft length: L: 20 mm
Max. Permissible shaft loading radial: 220 N
Max. Permissible shaft loading axial: 120 N
Ø 9.525 mm, Ø 3/8"
Advice: Attention: No option AAO = full IP67 version
Shaft length: L: 20 mm, L: 0.787 in
Max. Permissible shaft loading radial: 220 N, 22.434 kp
Max. Permissible shaft loading axial: 120 N, 12.237 kp
Max. operating speed
8000 rpm
Power supply
10 VDC up to 32 VDC
Current consumption: typ. 100 mA
Power consumption: max. 1 W
Operating temperature
-40 °C up to +85 °C [-40 °F up to +176 °F]
Storage temperature
-40 °C up to +100 °C [-40 °F up to +212 °F]
Protection class
Housing: IP65, IP67; shaft sealed: IP65 (SE9: max. IP40)
Advice

Configuration software
 Software download

Manual WDGA CANopen
 Manual WDGA CANopen

STEP viewer / STEP data:

Your desired STEP file is not listed:
Request STEP file here

Description
CB5axial, 5-pin, shield connected to encoder housing
Assignments
(+) Vcc2
GND3
CANHigh4
CANLow5
CANGND shield1
STEP viewer / STEP data:

Your desired STEP file is not listed:
Request STEP file here

Description
CC5radial, 5-pin, shield connected to encoder housing
Assignments
(+) Vcc2
GND3
CANHigh4
CANLow5
CANGND shield1
STEP viewer / STEP data:

Your desired STEP file is not listed:
Request STEP file here

Description
DB5axial, 5-pin, shield connected to encoder housing
Assignments
Female connectorM12x1, 5-pin
(+) Vcc2
GND3
CANHigh4
CANLow5
CANGND shield1
ConnectorM12x1, 5-pin
(+) Vcc2
GND3
CANHigh4
CANLow5
CANGND shield1
STEP viewer / STEP data:

Your desired STEP file is not listed:
Request STEP file here

Description
SE9radial, 9-pin, shield connected to encoder housing (IP40)
Assignments
ConnectorD-SUB
(+) Vcc9
GND6
CANHigh7
CANLow2
CANGND shield3
n. c.1, 4, 5, 8
STEP viewer / STEP data:

Your desired STEP file is not listed:
Request STEP file here

Description
L2axial, shield connected to encoder housing
Assignments
(+) VccBN
GNDWH
CANHighGN
CANLowYE
CANGND shieldshield
STEP viewer / STEP data:

Your desired STEP file is not listed:
Request STEP file here

Description
L3radial, shield connected to encoder housing
Assignments
(+) VccBN
GNDWH
CANHighGN
CANLowYE
CANGND shieldshield
