WK22
Helical coupling WK22
for encoder with shaft Ø 6 mm.
![WK22 Kupplung Drehgeber WK22 Kupplung Drehgeber](/fileadmin/_processed_/4/8/csm_WK22_Kupplung_Drehgeber_d57aea79b1.jpg)
Max. operating speed
8000 rpm
Max. torque
60 Ncm
Max. offset of shafts radial
±0.25 mm
Max. offset of shafts axial
±0.4 mm
Max. offset of shafts angular
±3.5°
Torsion spring stiffness
9 Nm/rad
Radial spring stiffness
40 N/mm
Moment of inertia
6.7 gcm²
Max. clamping torque
80 Ncm
Weight
13 g
Material
Aluminium chromised
Order number(s)
WK220606
Helical coupling: Ø d1 = 6 mm, Ø d2 = 6 mm
Customs information:
Customs tariff number:
90319000
Country of origin:
Germany

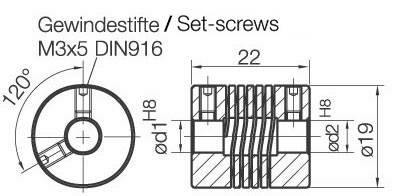

All dimensional specifications in mm
![Z WK22 coupling encoder Z WK22 coupling encoder](/fileadmin/pim/WA/Zeichnungen/Zubehoer/en/Z_WK22_coupling_encoder.jpg)
