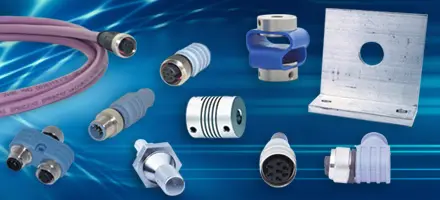

Zubehör Drehgeber
Accessories

Encoder configurator

Configure your encoder and generate the specific data sheet.

With our step-by-step process, you will find a rotary encoder type in our range that suits your specific needs.

Wachendorff Automation offers you rugged industrial components and intelligent system solutions for the highly accurate measurement of distance and direction. The rugged industrial quality of Wachendorff-manufactured encoders is backed up by a 5 year warranty.

Your application will determine the solution - we are flexible and equipped to deal with every requirement:

  • Incremental or absolute encoders
  • Optical or magnetic encoders
  • Rugged industrial components
  • Intelligent system solutions
  • Standard or customer solution
  • Single items, large or small production runs


There are already more than 2.500 Wachendorff-customer solutions in use worldwide. We look forward to working with you to determine the optimal solution for your application and deliver this on-schedule. We are true experts.

Put us to the test! You will be inspired by our skilled and dedicated personal advice.

Quality


Noise immunity

Signal reliability is assured thanks to an EMV concept which is specifically designed for the most extreme conditions of use.


Top-class protection

Our encoders have an optimal degree of protection for your application – up to IP67 + IP69K. Thanks to carefully selected materials and sealing elements, we are able to achieve resistance to salt-water, foodstuffs and oil.


Very high permissible bearing loads

The optimally designed bearing package ensures very high load capability of the shaft.


Rugged industrial encoders

For simulating environmental effects during type and endurance testing, we use our own vibration shaker, our own climatic chambers and a test rig for checking IP protection.


Preventative maintenance

At least 1000 hours before the WDG encoder might fail due to LED light performance, an early warning output switches.


Non-stop operation

Our careful choice of components guarantees a long service life for the WDG encoders, for example our LEDs still shine brightly and reliably after more than 11 years of operation.


Connection safety

All encoders with HTL outputs can be wired in complete safety - it does not matter if the connections are reversed, even on a long-term basis.
