MRA500KH

Measuring wheels MRA500KH

Circumference 500 mm,
Surface finish: Synthetic (Polyurethan, even)
Fields of application: greased metal, steal profiles, painted surfaces, plastic, paper, pasteboard, wood, textiles, wire, leather.
For encoder with shaft Ø 10 mm or Ø 12 mm.

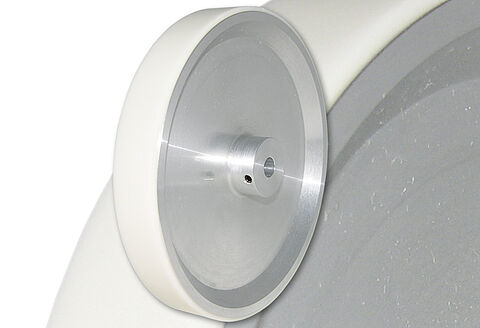

MRA500KH Messrad Drehgeber
Circumference
500 mm
Surface finish
Synthetic (Polyurethan, even)
Moment of inertia
15.3 x 10³ gcm²
Wheel body material
Aluminum
Standard bore-hole
Ø 10 mm
Ø 12 mm
Width
25 mm
Operating temperature
-30 °C up to +80 °C
Weight
700 g
Order number(s)
MRA500KH10
Measuring wheel, bore-hole Ø 10 mm
MRA500KH12
Measuring wheel, bore-hole Ø 12 mm
All dimensional specifications in mm
Z MRA500 measuring wheel encoder
