MR200KG

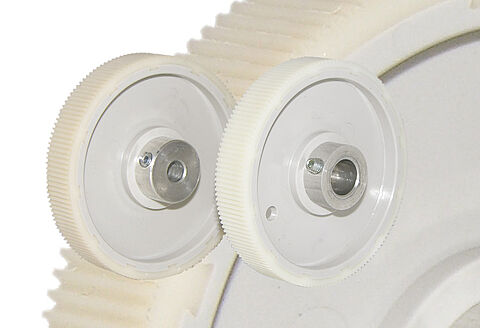

Measuring wheels MR200KG

Circumference 200 mm,
Surface finish: Synthetic (Hytrel, fluted)
Fields of application: Plastic, painted surfaces, paper, pasteboard, wood, metal, textiles.
For encoder with shaft Ø 6 mm or 10 mm.

MR200KG Messrad Drehgeber
Circumference
200 mm
Surface finish
Synthetic (Hytrel, fluted)
Hardness/Shore A
85 up to 90
Wheel body material
Plastic
Standard bore-hole
Ø 6 mm
Ø 10 mm
Width
12 mm
Operating temperature
-10 °C up to +70 °C
Weight
35 g
Order number(s)
MR200KG06
Measuring wheel, bore-hole Ø 6 mm
MR200KG10
Measuring wheel, bore-hole Ø 10 mm
All dimensional specifications in mm
Z MR200 measuring wheel encoder
