ST27

Jointed coupling ST27

for encoder with shaft Ø 6 mm or 10 mm

ST27 Kupplung Drehgeber
Max. operating speed
10000 rpm
Max. torque
100 Ncm
Max. offset of shafts radial
±0.1 mm
Max. offset of shafts axial
±0.3 mm
Max. offset of shafts angular
±0.5°
Torsion spring stiffness
18 Nm/rad
Moment of inertia
79 gcm²
Max. clamping torque
188 Ncm
Weight
25 g
Material

Hub: Aluminium
Adapter: POM

Order number(s)
ST270606
Jointed coupling: Ø d1 = 6 mm, Ø d2 = 6 mm
ST270610
Jointed coupling: Ø d1 = 6 mm, Ø d2 = 10 mm
ST271010
Jointed coupling: Ø d1 = 10 mm, Ø d2 = 10 mm
Customs information:
Customs tariff number:
90319000
Country of origin:
Germany

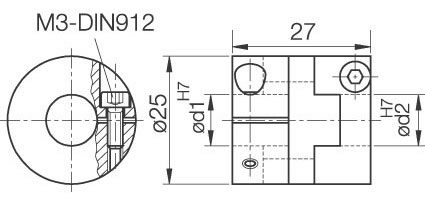

All dimensional specifications in mm
Z ST27 coupling encoder
