WDGDH10000

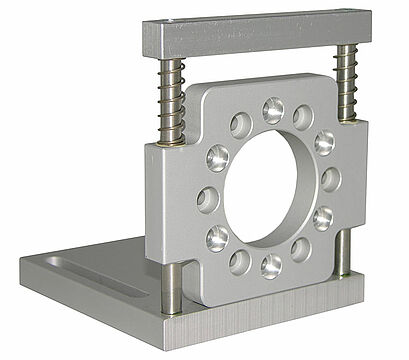

Linear equilization shaft encoder holder for encoder types 58B, 58D, 58K, 58N and 58T

for lenght determination

 STEP download WDGDH10000.stp

DH10000
Highlights
  • Installation from above
  • Adjustable prestresing force 25 N
  • Can be combined with the measuring wheels
    (MRA200KH, MRA200KG, MRA200NG) of 200 mm circumference
Spring travel

Spring travel:
25 N = 8.4 mm

Gewicht
approx. 300 g
Order number(s)
WDGDH10000
Linear equalization shaft encoder holder

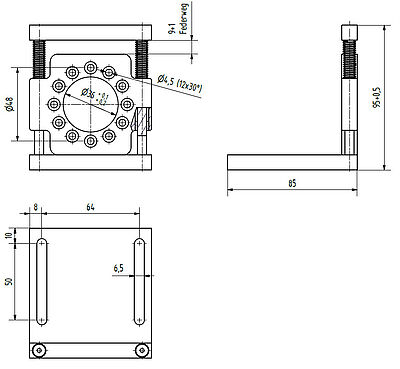

All dimensional specifications in mm
Z LMSLA12
