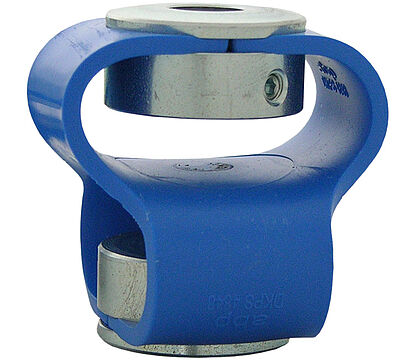

Double loop coupling DSK48

for encoder with shaft Ø 10 mm, 12 mm or 14 mm.
No moving parts, thermally and electrically insulating, smooth running, maintenance-free.
Good resistance to
Gasoline, oil, benzene, toluene, aromatic and non aromatic hydrocarbons, alcohols, glycols, solvents and many chemicals.

DSK48 Kupplung Drehgeber
Max. operating speed
3000 rpm
Max. torque
200 Ncm
Max. offset of shafts radial
±3.0 mm
Max. offset of shafts axial
±4.0 mm
Max. offset of shafts angular
±12°
Torsion spring stiffness
28 Nm/rad
Radial spring stiffness
7 N/mm
Moment of inertia
106 gcm²
Max. clamping torque
100 Ncm
Weight
85 g
Material

flange: steel galvanized
conecting element: polyurethane

Operating temperature
-30 °C up to +80 °C
Order number(s)
DSK481010
double loop coupling: Ø d1 = 10 mm, Ø d2 = 10 mm
DSK481012
double loop coupling: Ø d1 = 10 mm, Ø d2 = 12 mm
DSK481212
double loop coupling: Ø d1 = 12 mm, Ø d2 = 12 mm
DSK481414
double loop coupling: Ø d1 = 14 mm, Ø d2 = 14 mm
All dimensional specifications in mm

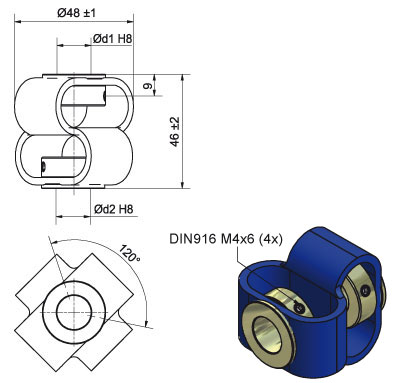

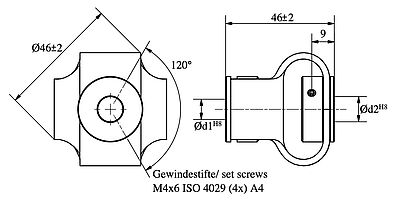

Z DSK48 coupling encoder
