Spring disc coupling FSK22

for encoder with shaft Ø 6 mm, 10 mm or 12 mm.

FSK22 Kupplung Drehgeber
Max. operating speed
12000 rpm
Max. torque
60 Ncm
Max. offset of shafts radial
±0.3 mm
Max. offset of shafts axial
±0.4 mm
Max. offset of shafts angular
±2.5°
Torsion spring stiffness
30 Nm/rad
Radial spring stiffness
45 N/mm
Moment of inertia
35 gcm²
Max. clamping torque
120 Ncm
Weight
30 g
Material

Flange: Aluminium, anodised
Membran: Polyamid 6.6, fiberglass reinforced

Order number(s)
FSK220606
Spring disc coupling: Ø d1 = 6 mm, Ø d2 = 6 mm
FSK220610
Spring disc coupling: Ø d1 = 6 mm, Ø d2 = 10 mm
FSK221010
Spring disc coupling: Ø d1 = 10 mm, Ø d2 = 10 mm
FSK221012
Spring disc coupling: Ø d1 = 10 mm, Ø d2 = 12 mm
FSK221212
Spring disc coupling: Ø d1 = 12 mm, Ø d2 = 12 mm
All dimensional specifications in mm

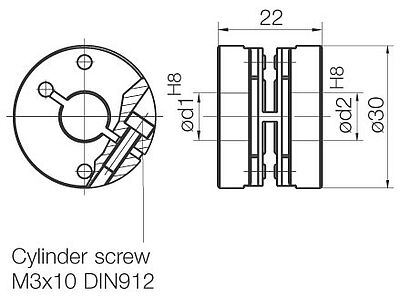

Z FSK22 coupling encoder
