WDGMA5005x

Spring-loaded arm for encoder types
58B, 58D, 58K, 58N and 58T

Highlights
  • Variable installation from below, from above, horizontal, vertical
  • Adjustable prestresing force: 5 N  up to 30 N (in steps of 5 N)
  • Can be combined with all measuring wheels of 200 mm and 500 mm circumference
  • Available in two loading directions
Spring travel

Spring travel at tension:
  5 N = 90°
20 N = 80°
...
30 N = 40°

Gewicht
approx. 550 g
Order number(s)
WDGMA50050
Load direction anti-clockwise
WDGMA50052
Load direction clockwise
Customs information:
Customs tariff number:
90319000
Country of origin:
Germany

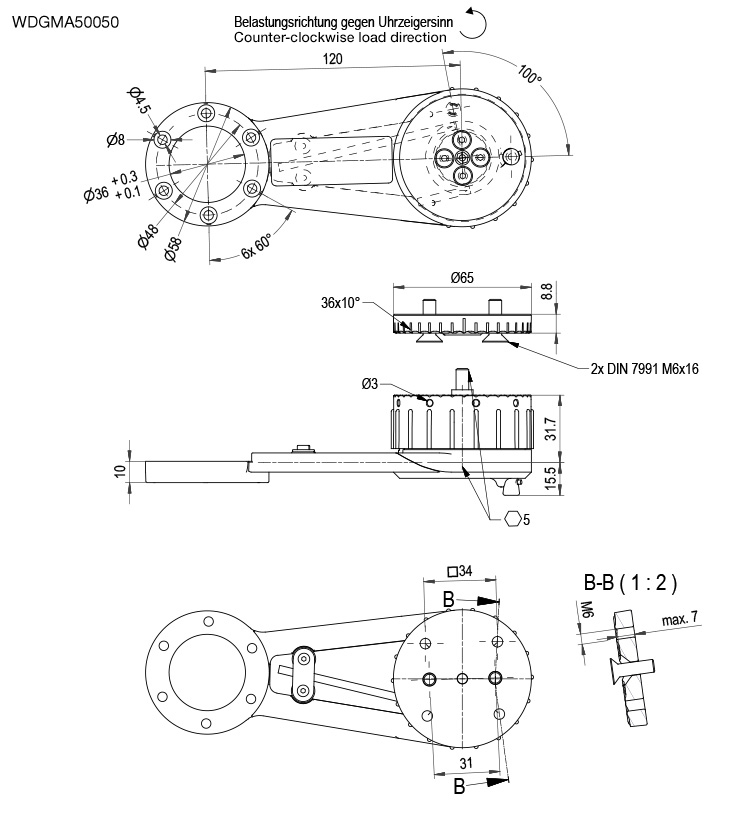

All dimensional specifications in mm
