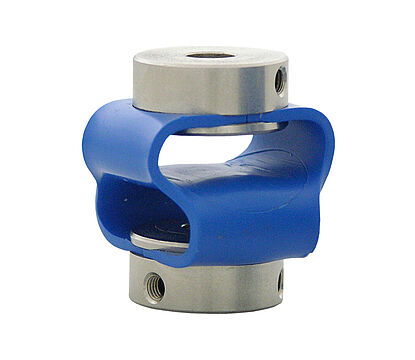

Double loop coupling DSK29

for encoder with shaft Ø 6 mm, 8 mm or 10 mm.
No moving parts, thermally and electrically insulating, smooth running, maintenance-free.
Good resistance to
Gasoline, oil, benzene, toluene, aromatic and non aromatic hydrocarbons, alcohols, glycols, solvents and many chemicals.

DSK29 Kupplung Drehgeber
Max. operating speed
3000 rpm
Max. torque
50 Ncm
Max. offset of shafts radial
±2.0 mm
Max. offset of shafts axial
±2.0 mm
Max. offset of shafts angular
±10°
Torsion spring stiffness
13 Nm/rad
Radial spring stiffness
13 N/mm
Moment of inertia
41 gcm²
Max. clamping torque
100 Ncm
Weight
33 g
Material

flange: steel galvanized
conecting element: polyurethane

Operating temperature
-30 °C up to +80 °C
Order number(s)
DSK290606
double loop coupling: Ø d1 = 6 mm, Ø d2 = 6 mm
DSK290610
double loop coupling: Ø d1 = 6 mm, Ø d2 = 10 mm
DSK290810
double loop coupling: Ø d1 = 8 mm, Ø d2 = 10 mm
DSK290808
double loop coupling: Ø d1 = 8 mm, Ø d2 = 8 mm
DSK291010
double loop coupling: Ø d1 = 10 mm, Ø d2 = 10 mm
All dimensional specifications in mm

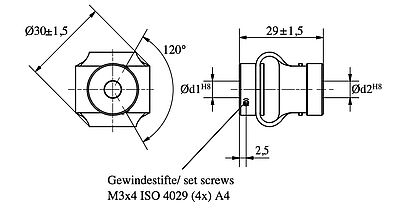

Z DSK29 coupling encoder
