Helical coupling WK24

for encoder with shaft Ø 6 mm, 8 mm, 10 mm or 12 mm.

 STEP-Download WK240610

WK24 Kupplung Drehgeber
Max. operating speed
8000 rpm
Max. torque
100 Ncm
Max. offset of shafts radial
±0.3 mm
Max. offset of shafts axial
±0.5 mm
Max. offset of shafts angular
±4°
Torsion spring stiffness
20 Nm/rad
Radial spring stiffness
60 N/mm
Moment of inertia
22.2 gcm²
Max. clamping torque
120 Ncm
Weight
26 g
Material

Aluminium chromised

Order number(s)
WK240606
Helical coupling: Ø d1 = 6 mm, Ø d2 = 6 mm
WK240608
Helical coupling: Ø d1 = 6 mm, Ø d2 = 8 mm
WK240610
Helical coupling: Ø d1 = 6 mm, Ø d2 = 10 mm
WK240808
Helical coupling: Ø d1 = 8 mm, Ø d2 = 8 mm
WK241010
Helical coupling: Ø d1 = 10 mm, Ø d2 = 10 mm
WK241212
Helical coupling: Ø d1 = 12 mm, Ø d2 = 12 mm
Customs information:
Customs tariff number:
90319000
Country of origin:
Germany
All dimensional specifications in mm

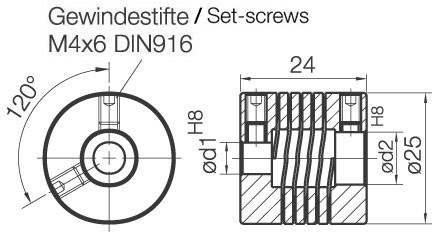

Z WK24 coupling encoder
