MRA200GR10
Measuring wheel MRA200GR10
Circumference: 200 mm,
Surface finish: O-ring 3,5 mm, material NBR70
Fields of application: Wood, painted surfaces, paper, plastics.
For encoders with shaft Ø 10 mm.
Illustration similar
Circumference
200 mm
Surface finish
NBR70
Hardness/Shore A
70
Wheel body material
Aluminum
Standard bore-hole
Ø 10 mm
Width
O-ring 3.5 mm
Operating temperature
-40 °C up to +80 °C
Weight
48 g
Order number(s)
MRA200GR10
Measuring wheel, bore-hole Ø 10 mm

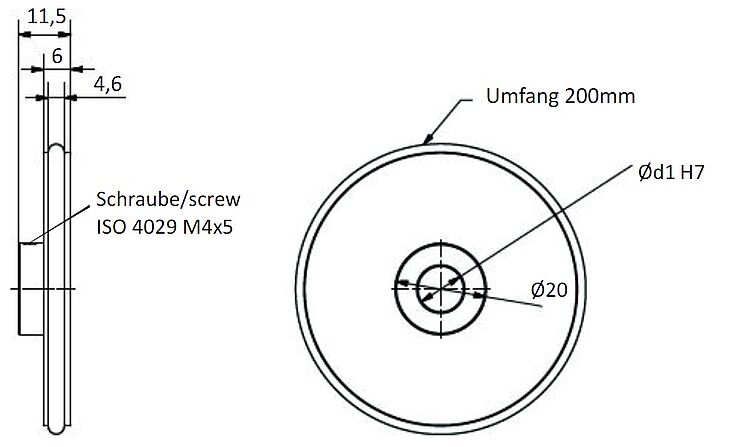

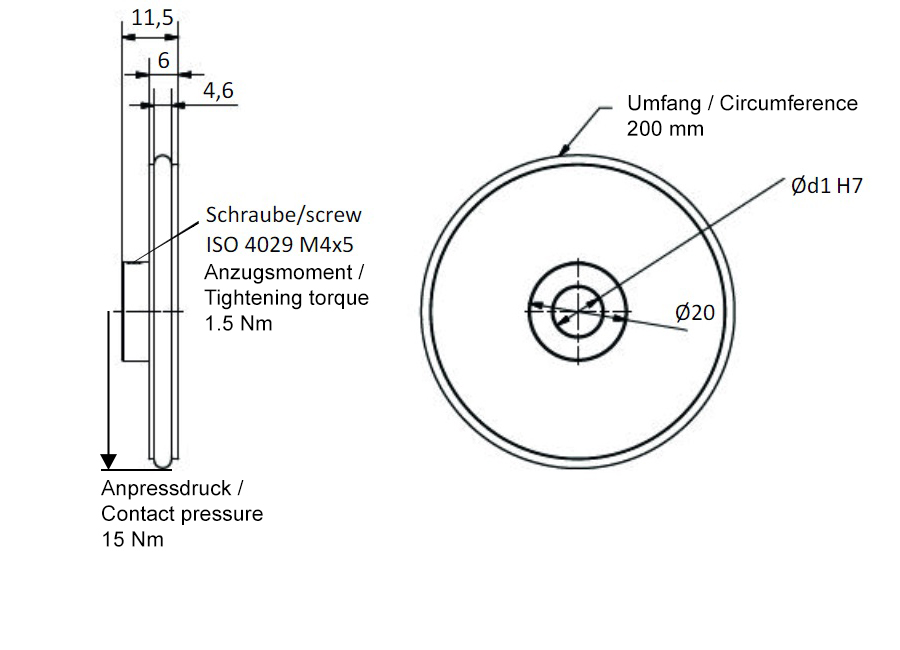

All dimensional specifications in mm
