MRA200KR

Measuring wheels MRA200KR

Circumference 200 mm,
Surface finish: Metal, knurled
Fields of application: Pasteboard, wood, textiles, rubber, soft plastic.
For encoder with shaft Ø 6 mm, Ø 10 mm or Ø 12 mm.

 STEP file MRA200KR06 bore-hole Ø 6 mm

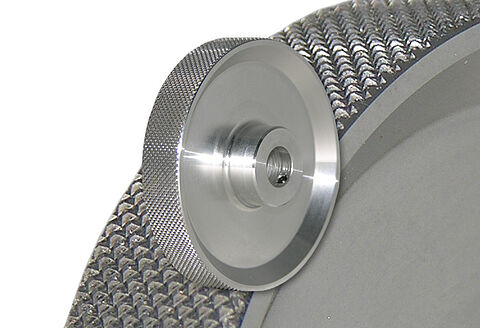

MRA200KR Messrad Drehgeber
Circumference
200 mm
Surface finish
Metal, knurled
Moment of inertia
3 x 10³ gcm²
Wheel body material
Aluminum
Standard bore-hole
Ø 6 mm
Ø 10 mm
Ø 12 mm
Width
12 mm
Operating temperature
-30 °C up to +180 °C
Weight
60 g
Order number(s)
MRA200KR06
Measuring wheel, bore-hole Ø 6 mm
MRA200KR10
Measuring wheel, bore-hole Ø 10 mm
MRA200KR12
Measuring wheel, bore-hole Ø 12 mm

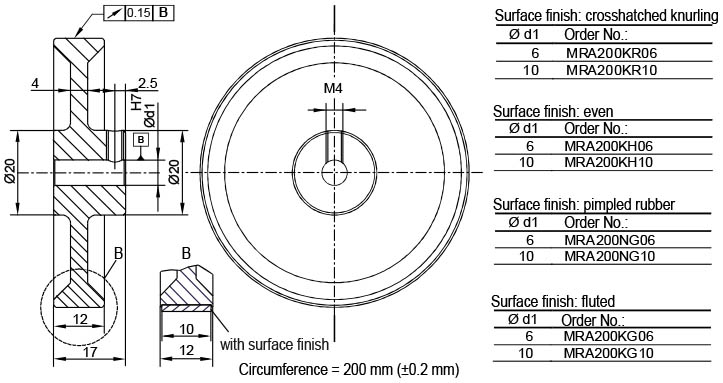

All dimensional specifications in mm
Z MRA200 measuring wheel encoder
