Double loop coupling DSK38

for encoder with shaft Ø 6 mm, 8 mm, 10 mm or 12 mm.
No moving parts, thermally and electrically insulating, smooth running, maintenance-free.
Good resistance to
Gasoline, oil, benzene, toluene, aromatic and non aromatic hydrocarbons, alcohols, glycols, solvents and many chemicals.

external link STEP-Datei DSK380606

DSK38 Kupplung Drehgeber
Max. operating speed
3000 rpm
Max. torque
150 Ncm
Max. offset of shafts radial
±2.5 mm
Max. offset of shafts axial
±3.0 mm
Max. offset of shafts angular
10°
Torsion spring stiffness
25 Nm/rad
Radial spring stiffness
15 N/mm
Moment of inertia
104 gcm²
Max. clamping torque
200 Ncm
Weight
48 g
Material

flange: steel galvanized
conecting element: polyurethane

Operating temperature
-30 °C up to +80 °C
Order number(s)
DSK380610
double loop coupling: Ø d1 = 6 mm, Ø d2 = 10 mm
DSK380612
double loop coupling: Ø d1 = 6 mm, Ø d2 = 12 mm
DSK380808
double loop coupling: Ø d1 = 8 mm, Ø d2 = 8 mm
DSK380810
double loop coupling: Ø d1 = 8 mm, Ø d2 = 10 mm
DSK380812
double loop coupling: Ø d1 = 8 mm, Ø d2 = 12 mm
DSK381010
double loop coupling: Ø d1 = 10 mm, Ø d2 = 10 mm
DSK381012
double loop coupling: Ø d1 = 10 mm, Ø d2 = 12 mm
DSK381212
double loop coupling: Ø d1 = 12 mm, Ø d2 = 12 mm
DSK380606
double loop coupling: Ø d1 = 6 mm, Ø d2 = 6 mm
All dimensional specifications in mm

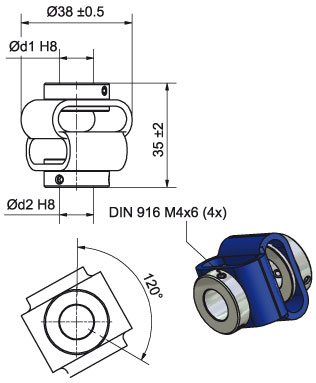

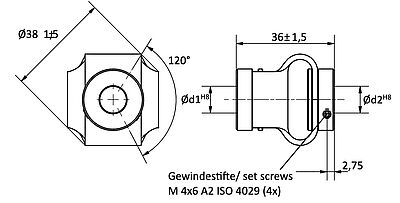

Z DSK38 coupling encoder
