Shaft Encoder incremental, magnetic,
resolution up to 16384 ppr,

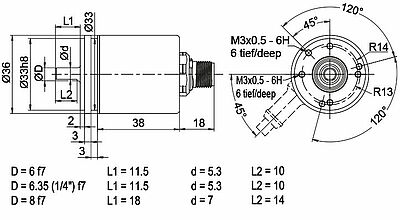

Servo flange: Ø 36 mm
Shaft: Ø 6 mm, Ø 1/4", Ø 8 mm,
Signal shape: square-wave.
- Due to high quality electronics any number of pulses up to 16384
- Protection class IP67, at shaft input IP65
- High output frequency up to 1 MHz
- Reverse polarity protection and short-circuit protection at 4.75 VDC to 32 VDC
Shaft length: L: 11.5 mm
Max. Permissible shaft loading radial: 80 N
Max. Permissible shaft loading axial: 50 N
Shaft length: L: 11.5 mm
Max. Permissible shaft loading radial: 80 N
Max. Permissible shaft loading axial: 50 N
Shaft length: L: 18 mm
Max. Permissible shaft loading radial: 50 N
Max. Permissible shaft loading axial: 50 N
Current consumption: typ. 80 mA
Set zero pulse:
Set: SET = +UB for 2 s
Deaktivate: SET = GND
Environmental data
ESD (DIN EN 61000-4-2):
8 kV
Burst (DIN EN 61000-4-4):
2 kV
includes EMC:
DIN EN 61000-6-2
DIN EN 61000-6-3
Vibration:
(DIN EN 60068-2-6)
50 m/s2 (10 Hz up to 2000 Hz)
Shock:
(DIN EN 60068-2-27)
1000 m/s2 (6 ms)
Design:
According DIN VDE 0160
Duty information
Customs tariff number:
90318020
Country of origin:
Germany
| Description | ABN inv. poss. | |
|---|---|---|
| L2 | axial, shield connected to encoder housing | ● |
| L2 | L2 | L2 | L2 | |
| Circuit | M11, M12 | M13, M14 | N11, N12 | N13, N14 |
| GND | WH | WH | WH | WH |
| (+) Vcc | BN | BN | BN | BN |
| A | GN | GN | GN | GN |
| B | YE | YE | YE | YE |
| N | GY | GY | GY | GY |
| SET | - | PK | - | PK |
| A inv. | RD | RD | - | - |
| B inv. | BK | BK | - | - |
| N inv. | VT | VT | - | - |
| Shield | flex | flex | flex | flex |
| Description | ABN inv. poss. | |
|---|---|---|
| L3 | radial, shield connected to encoder housing | ● |
| L3 | L3 | L3 | L3 | |
| Circuit | M11, M12 | M13, M14 | N11, N12 | N13, N14 |
| GND | WH | WH | WH | WH |
| (+) Vcc | BN | BN | BN | BN |
| A | GN | GN | GN | GN |
| B | YE | YE | YE | YE |
| N | GY | GY | GY | GY |
| SET | - | PK | - | PK |
| A inv. | RD | RD | - | - |
| B inv. | BK | BK | - | - |
| N inv. | VT | VT | - | - |
| Shield | flex | flex | flex | flex |
| Description | ABN inv. poss. | |
|---|---|---|
| K1 | radial, shield not connected (IP40) | ● |
| K1 | K1 | K1 | K1 | |
| Circuit | M11, M12 | M13, M14 | N11, N12 | N13, N14 |
| GND | WH | WH | WH | WH |
| (+) Vcc | BN | BN | BN | BN |
| A | GN | GN | GN | GN |
| B | YE | YE | YE | YE |
| N | GY | GY | GY | GY |
| SET | - | PK | - | PK |
| A inv. | RD | RD | - | - |
| B inv. | BK | BK | - | - |
| N inv. | VT | VT | - | - |
| Shield | flex | flex | flex | flex |
| Description | ABN inv. poss. | |
|---|---|---|
| SB5 | axial, 5-pin, Connector connected to encoder housing | - |
| SB8 | axial, 8-pin, Connector connected to encoder housing | ● |
| SB12 | axial, 12-pin, Connector connected to encoder housing | ● |
| Description | ABN inv. poss. | |
|---|---|---|
| SC5 | radial, 5-pin, Connector connected to encoder housing | - |
| SC8 | radial, 8-pin, Connector connected to encoder housing | ● |
| SC12 | radial, 12-pin, Connector connected to encoder housing | ● |
1-16384 PPR
Please extend the standard order code with a three figure number, specifying the cable length in decimetres.
Example: 5 m cable = 050
Female connector KI-5-67:
Suitable for encoder with sensor connector outlet SB5 and SC5, 5 pin, IP67
Ready-made shielded connection cable with female cable connector straight,
shield connected.
Female connector KIA-5-67:
Suitable for encoder with sensor connector outlet SB5 and SC5, 5 pin, IP67
Ready-made shielded connection cable with female cable connector angular,
shield connected.
Female connector KI-8-67:
Suitable for encoder with sensor connector outlet SB8 and SC8, 8 pin, IP67
Ready-made shielded connection cable with female cable connector straight,
shield connected.
Female connector KIA-8-67:
Suitable for encoder with sensor connector outlet SB8 and SC8, 8 pin, IP67
Ready-made shielded connection cable with female cable connector angular,
shield connected.
Female connector KI-12-67:
Suitable for encoder with sensor connector outlet SB12 and SC12, 12 pin, IP67
Ready-made shielded connection cable with female cable connector straight,
shield connected.
Female connector KIA-12-67:
Suitable for encoder with sensor connector outlet SB12 and SC12, 12 pin, IP67
Ready-made shielded connection cable with female cable connector angular,
shield connected.
Helical coupling WK24
for encoder with shaft Ø 6 mm, 8 mm, 10 mm or 12 mm.
Bellows coupling BK29
for encoder with shaft Ø 6 mm, 8 mm, 10 mm or 12 mm*.
Max. offset of shafts radial: ± 0,25 mm or ± 0,30 mm*
Torsion spring stiffness: 150 Nm/rad or 130 Nm/rad*
Double loop coupling DSK29
for encoder with shaft Ø 6 mm, 8 mm or 10 mm.
No moving parts, thermally and electrically insulating, smooth running, maintenance-free.
Good resistance to
Gasoline, oil, benzene, toluene, aromatic and non aromatic hydrocarbons, alcohols, glycols, solvents and many chemicals.
Double loop coupling DSK38
for encoder with shaft Ø 6 mm, 8 mm, 10 mm or 12 mm.
No moving parts, thermally and electrically insulating, smooth running, maintenance-free.
Good resistance to
Gasoline, oil, benzene, toluene, aromatic and non aromatic hydrocarbons, alcohols, glycols, solvents and many chemicals.
Measuring wheels MR200KR
Circumference 200 mm,
Surface finish: Metal, knurled
Fields of application: Pasteboard, wood, certain textiles.
For encoder with shaft Ø 6 mm or 10 mm.
Measuring wheels MRA200KR
Circumference 200 mm,
Surface finish: Metal, knurled
Fields of application: Pasteboard, wood, textiles, rubber, soft plastic.
For encoder with shaft Ø 6 mm, Ø 10 mm or Ø 12 mm.
Measuring wheels MR200KH
Circumference 200 mm,
Surface finish: Synthetic (Hytrel, even)
Fields of application: Plastic, painted surfaces, paper, pasteboard, wood, metal, textiles.
For encoder with shaft Ø 6 mm or 10 mm.
Measuring wheels MRA200KH
Circumference 200 mm,
Surface finish: Synthetic (Polyurethan, even)
Fields of application: greased metal, steal profiles, painted surfaces, plastic, paper, pasteboard, wood, textiles, wire, leather.
For encoder with shaft Ø 6 mm, Ø 10 mm or Ø 12 mm.
Measuring wheels MR200NG
Circumference 200 mm,
Surface finish: Synthetic (pimpled rubber)
Fields of application: Textiles.
For encoder with shaft Ø 6 mm or 10 mm.
Measuring wheels MRA200NG
Circumference 200 mm,
Surface finish: Synthetic (pimpled Polyurethan)
Fields of application: rough textiles, carpet, cable measuring, fleece, paper, pasteboard, wood, plastic.
For encoder with shaft Ø 6 mm, Ø 10 mm or Ø 12 mm.
Measuring wheels MR200KG
Circumference 200 mm,
Surface finish: Synthetic (Hytrel, fluted)
Fields of application: Plastic, painted surfaces, paper, pasteboard, wood, metal, textiles.
For encoder with shaft Ø 6 mm or 10 mm.
Measuring wheels MRA200KG
Circumference 200 mm,
Surface finish: Synthetic (Polyurethan, fluted)
Fields of application: metal ungreased, painted surfaces, plastic, paper, pasteboard, wood, textiles, glas, floor coverings.
For encoder with shaft Ø 6 mm, Ø 10 mm or Ø 12 mm.
