Cross switcher and splitter

for incremental encoder signals

Data sheet

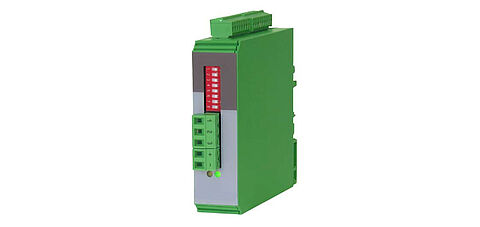

WDG012VGOM Verteiler Splitter
  • Universal encoder interface, applicable
    as level converter, encoder splitter and encoder cross switch
  • Two encoder inputs A, B, Z and /A, /B, /Z,
    adjustable to either TTL/RS422 level or
    to HTL (10 volts up to 30 volts) level
  • Two signal outputs A, B, Z and /A, /B, /Z,
    likewise adjustable to either TTL/RS422 or
    HTL (10 volts up to 30 volts) level
  • High frequency range ( 1 MHz )
  • Contactless and bounce-free switch-over between the encoder channels,
    by remote control signals
  • Power supply 12 volts up to 30 volts DC,
    auxiliary output 5 volts for encoder supply
