WDG 24C

Shaft Encoder, incremental, magnetic,
resolution: up to 1024 ppr,
Synchro flange: Ø 24 mm

Shaft: Ø 6 mm,
protection rating: up to IP67 all around,
Signal shape: square-wave.

Data sheetGeneral technical data incremental encoders (PDF 551 kB)
Drehgeber WDG24C
Highlights
  • very compact construction for use in harsh conditions
  • permissible bearing loads similar to our “big encoders”
  • up to IP67 all around
  • Hall effect based signal generation
Product details
Flange
synchro flange
Pulses per revolution PPR
up to 1024 PPR
Housing
Ø 24 mm
aluminum
Shaft
Ø 6 mm
Shaft length: L: 12 mm
Max. Permissible shaft loading radial: 80 N
Max. Permissible shaft loading axial: 50 N
Max. operating speed
12000 rpm
Output circuit
TTL, RS422 compatible, inv.
TTL
HTL (TTL at 5 VDC)
HTL, inv. (TTL/RS422 comp. at 5 VDC)
Output frequency
≤ 64 ppr, max. 20 kHz
≤ 1024 ppr, max. 200 kHz
Power supply
4,75 VDC up to 5,5 VDC
Current consumption: typ. 40 mA
5 VDC up to 30 VDC
Current consumption: typ. 40 mA

Environmental data

ESD (DIN EN 61000-4-2):

8 kV

Burst (DIN EN 61000-4-4):

2 kV

includes EMC:

DIN EN 61000-6-2
DIN EN 61000-6-3

Vibration:
(DIN EN 60068-2-6)

50 m/s2 (10 Hz up to 2000 Hz)

Shock:
(DIN EN 60068-2-27)

1000 m/s2 (6 ms)

Design:

according DIN VDE 0160

Duty information

Customs tariff number:

90318020

Country of origin:

Germany

Operating temperature
-20 °C up to +80 °C
Protection class
IP65 all around with SK6, housing IP40 with K7, L7
STEP viewer / STEP data:

Your desired STEP file is not listed:
Request STEP file here

DescriptionABN inv. poss.
K7radial, shield not connected (IP40)
L7radial, shield connected to encoder housing (IP40)
Assignments
 K7, L7K7, L7
CircuitN05, N30M05, M30
GNDWHWH
(+) VccBNBN
AGNGN
BYEYE
NGYGY
Light reserve warning--
A inv.-RD
B inv.-PK, (BK at ACA)
N inv.-BU, (VT at ACA)
Shieldflexflex
STEP viewer / STEP data:

Your desired STEP file is not listed:
Request STEP file here

DescriptionABN inv. poss.
SK6axial, 6-pin, Connector connected to encoder housing-
Assignments
SK6
 6-pin
connector drawing
CircuitN05, N30
GND3
(+) Vcc2
A4
B5
N1
Light reserve warning-
A inv.-
B inv.-
N inv.-
n. c.6
Shield-
STEP viewer / STEP data:

Your desired STEP file is not listed:
Request STEP file here

DescriptionABN inv. poss.

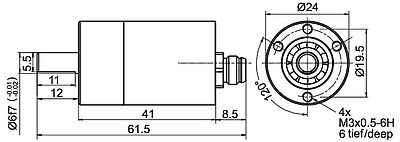

SK8axial, 8-pin, Connector connected to encoder housing
Assignments
SK8SK8
 8-pin8-pin
connector drawing
CircuitN05, N30M05, M30
GND11
(+) Vcc22
A33
B44
N55
Light reserve warning--
A inv.-6
B inv.-7
N inv.-8
n. c.6, 7, 8-
Shield--
16, 32, 64 PPR
Power supply VDC
4.75 - 5.5 VDC
Current consumption
typ. 40 mA
Signal shape
square-wave
Output circuit
TTL, RS422 comp., inverted
Channels
AB, ABN, and inverted signals
Output
push-pull
Load
max. 30 mA / channel
Signal level mA
at 20 mA
Signal level H>
H > 2.5 VDC
Signal level L<
L < 0.5 VDC
Output frequency
max. 20 kHz
Circuit protection
no
Light reserve warning
no
Power supply VDC
4.75 - 5.5 VDC
Current consumption
typ. 40 mA
Signal shape
square-wave
Output circuit
TTL
Channels
AB, ABN
Output
push-pull
Load
max. 30 mA / channel
Signal level mA
at 20 mA
Signal level H>
H > 2.5 VDC
Signal level L<
L < 0.5 VDC
Output frequency
max. 20 kHz
Circuit protection
no
Light reserve warning
no
1-1024 PPR
Power supply VDC
5 - 30 VDC
Current consumption
typ. 40 mA
Signal shape
square-wave
Output circuit
HTL, inv. (TTL/RS422 comp. at 5 VDC)
Channels
AB, ABN, and inverted signals
Output
push-pull
Load
max. 30 mA / channel
Signal level mA
at 20 mA
Signal level H>
H > Vcc - 10 % Vcc
Signal level L<
L < 2.5 VDC
Output frequency
max. 200 kHz
Circuit protection
no
Light reserve warning
no
Power supply VDC
5 - 30 VDC
Current consumption
typ. 40 mA
Signal shape
square-wave
Output circuit
HTL (TTL at 5 VDC)
Channels
AB, ABN
Output
push-pull
Load
max. 30 mA / channel
Signal level mA
at 20 mA
Signal level H>
H > Vcc - 10 % Vcc
Signal level L<
L < 2.5 VDC
Output frequency
max. 200 kHz
Circuit protection
no
Light reserve warning
no
The encoder WDG 24C is also available as a particularly smooth- running low-friction encoder. The starting torque is thereby changed to ≤ 0.1 Ncm and the protection class at the shaft input to IP50.
The encoder WDG 24C can be supplied in a full IP67 version. Resistance to salt mist (IEC 60068-2-11) after 672 hours
Max. RPM: 3500 rpm
Permitted Shaft-Loading, axial:30 N
Permitted Shaft-Loading, radial:45 N
Max. PPR: 1024 ppr
Starting-torque:approx. 1.2 Ncm at ambient temperature
The encoder WDG 24C with the output circuit types M05, N05, M30, N30 is also available with the extended temperature range -40 °C up to +80 °C (measured at the flange).
The encoder WDG 24C can be supplied with more than 2 m cable. The max. permissible cable length is 10 metres with the output circuit M05 and N05.
With output circuit M30 and N30 max. 25 m. The maximum cable length depends on the supply voltage and the frequency; see 'General Technical Data'
Please extend the standard order code with a three figure number, specifying the cable length in decimetres.
Example: 5 m cable = 050
