Shaft Encoder incremental, magnetic,
Resolution: up to 16384 ppr,
Synchro flange: Ø 58 mm
Shaft: Ø 6 mm, Ø 10 mm,
Signal shape: square-wave.
![Drehgeber encoder WDGP58A Drehgeber encoder WDGP58A](/fileadmin/pim/WA/Produktbilder/DB_Drehgeber/WDGP58A.jpg)
- Due to high quality electronics any number of pulses up to 16384
- Protection class IP67, at shaft input IP65
- High output frequency up to 1 MHz
- Reverse polarity protection and short-circuit protection at 4.75 VDC to 32 VDC
Advice: Attention: No option AAO = full IP67 version
Shaft length: L: 12 mm
Max. Permissible shaft loading radial: 125 N
Max. Permissible shaft loading axial: 120 N
Shaft length: L: 20 mm
Max. Permissible shaft loading radial: 220 N
Max. Permissible shaft loading axial: 120 N
Current consumption: typ. 80 mA
Set zero pulse:
Set: SET = +UB for 2 s
Deaktivate: SET = GND
Environmental data
ESD (DIN EN 61000-4-2):
8 kV
Burst (DIN EN 61000-4-4):
2 kV
includes EMC:
DIN EN 61000-6-2
DIN EN 61000-6-3
Vibration:
(DIN EN 60068-2-6)
50 m/s2 (10 Hz up to 2000 Hz)
Shock:
(DIN EN 60068-2-27)
1000 m/s2 (6 ms)
Design:
According DIN VDE 0160
Duty information
Customs tariff number:
90318020
Country of origin:
Germany
Description | ABN inv. poss. | |
---|---|---|
L2 | axial, shield connected to encoder housing | ● |
L2 | L2 | L2 | L2 | |
Circuit | M11, M12 | M13, M14 | N11, N12 | N13, N14 |
GND | WH | WH | WH | WH |
(+) Vcc | BN | BN | BN | BN |
A | GN | GN | GN | GN |
B | YE | YE | YE | YE |
N | GY | GY | GY | GY |
SET | - | PK | - | PK |
A inv. | RD | RD | - | - |
B inv. | BK | BK | - | - |
N inv. | VT | VT | - | - |
Shield | flex | flex | flex | flex |
Description | ABN inv. poss. | |
---|---|---|
L3 | radial, shield connected to encoder housing | ● |
L3 | L3 | L3 | L3 | |
Circuit | M11, M12 | M13, M14 | N11, N12 | N13, N14 |
GND | WH | WH | WH | WH |
(+) Vcc | BN | BN | BN | BN |
A | GN | GN | GN | GN |
B | YE | YE | YE | YE |
N | GY | GY | GY | GY |
SET | - | PK | - | PK |
A inv. | RD | RD | - | - |
B inv. | BK | BK | - | - |
N inv. | VT | VT | - | - |
Shield | flex | flex | flex | flex |
Description | ABN inv. poss. | |
---|---|---|

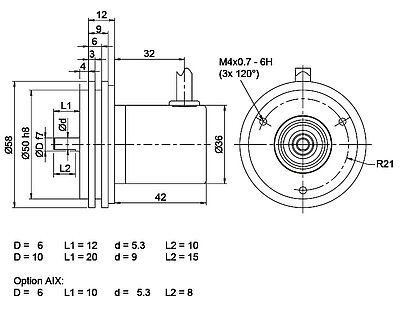

K1 | radial, shield not connected (IP40) | ● |
K1 | K1 | K1 | K1 | |
Circuit | M11, M12 | M13, M14 | N11, N12 | N13, N14 |
GND | WH | WH | WH | WH |
(+) Vcc | BN | BN | BN | BN |
A | GN | GN | GN | GN |
B | YE | YE | YE | YE |
N | GY | GY | GY | GY |
SET | - | PK | - | PK |
A inv. | RD | RD | - | - |
B inv. | BK | BK | - | - |
N inv. | VT | VT | - | - |
Shield | flex | flex | flex | flex |
Description | ABN inv. poss. | |
---|---|---|
SB5 | axial, 5-pin, Connector connected to encoder housing | - |
SB8 | axial, 8-pin, Connector connected to encoder housing | ● |
SB12 | axial, 12-pin, Connector connected to encoder housing | ● |
Description | ABN inv. poss. | |
---|---|---|
SC5 | radial, 5-pin, Connector connected to encoder housing | - |
SC8 | radial, 8-pin, Connector connected to encoder housing | ● |
SC12 | radial, 12-pin, Connector connected to encoder housing | ● |
1-16384 PPR
The encoder WDGP 58A can be supplied in a IP67 version.
(full IP67 only connection SB, SC, L2 or L3 version; not cable connection K1 = IP40).
Max. RPM: 3500 min'-1
Permitted Shaft-Loading: axial 100 N; radial 110 N
Starting-torque: approx. 4 Ncm at ambient temperature
The encoder WDGP 58A shaft: Ø 6 mm is also available with a shortened shaft L = 10 mm.
Please extend the standard order code with a three figure number, specifying the cable length in decimetres.
Example: 5 m cable = 050
![KI567 Drehgeber Kabeldose KI567 Drehgeber Kabeldose](/fileadmin/pim/WA/Produktbilder/Zubehoer/KI567_Drehgeber_Kabeldose.jpg)
Female connector KI-5-67:
Suitable for encoder with sensor connector outlet SB5 and SC5, 5 pin, IP67
Ready-made shielded connection cable with female cable connector straight,
shield connected.
![KIA567 Drehgeber Kabeldose KIA567 Drehgeber Kabeldose](/fileadmin/pim/WA/Produktbilder/Zubehoer/KIA567_Drehgeber_Kabeldose.jpg)
Female connector KIA-5-67:
Suitable for encoder with sensor connector outlet SB5 and SC5, 5 pin, IP67
Ready-made shielded connection cable with female cable connector angular,
shield connected.
![KI867 Drehgeber Kabeldose KI867 Drehgeber Kabeldose](/fileadmin/pim/WA/Produktbilder/Zubehoer/KI867_Drehgeber_Kabeldose.jpg)
Female connector KI-8-67:
Suitable for encoder with sensor connector outlet SB8 and SC8, 8 pin, IP67
Ready-made shielded connection cable with female cable connector straight,
shield connected.
![KIA867 Drehgeber Kabeldose KIA867 Drehgeber Kabeldose](/fileadmin/pim/WA/Produktbilder/Zubehoer/KIA867_Drehgeber_Kabeldose.jpg)
Female connector KIA-8-67:
Suitable for encoder with sensor connector outlet SB8 and SC8, 8 pin, IP67
Ready-made shielded connection cable with female cable connector angular,
shield connected.
![KI1267 Drehgeber Kabeldose KI1267 Drehgeber Kabeldose](/fileadmin/pim/WA/Produktbilder/Zubehoer/KI1267_Drehgeber_Kabeldose.jpg)
Female connector KI-12-67:
Suitable for encoder with sensor connector outlet SB12 and SC12, 12 pin, IP67
Ready-made shielded connection cable with female cable connector straight,
shield connected.
![KIA1267 Drehgeber Kabeldose KIA1267 Drehgeber Kabeldose](/fileadmin/pim/WA/Produktbilder/Zubehoer/KIA1267_Drehgeber_Kabeldose.jpg)
Female connector KIA-12-67:
Suitable for encoder with sensor connector outlet SB12 and SC12, 12 pin, IP67
Ready-made shielded connection cable with female cable connector angular,
shield connected.
![WK24 Kupplung Drehgeber WK24 Kupplung Drehgeber](/fileadmin/_processed_/b/f/csm_WK24_Kupplung_Drehgeber_237b82aa6f.jpg)
Helical coupling WK24
for encoder with shaft Ø 6 mm, 8 mm, 10 mm or 12 mm.
![BK29 Kupplung Drehgeber BK29 Kupplung Drehgeber](/fileadmin/_processed_/f/6/csm_BK29_Kupplung_Drehgeber_991358a998.jpg)
Bellows coupling BK29
for encoder with shaft Ø 6 mm, 8 mm, 10 mm or 12 mm*.
Max. offset of shafts radial: ± 0,25 mm or ± 0,30 mm*
Torsion spring stiffness: 150 Nm/rad or 130 Nm/rad*
![DSK29 Kupplung Drehgeber DSK29 Kupplung Drehgeber](/fileadmin/_processed_/d/2/csm_DSK29_Kupplung_Drehgeber_d9bc94dae5.jpg)
Double loop coupling DSK29
for encoder with shaft Ø 6 mm, 8 mm or 10 mm.
No moving parts, thermally and electrically insulating, smooth running, maintenance-free.
Good resistance to
Gasoline, oil, benzene, toluene, aromatic and non aromatic hydrocarbons, alcohols, glycols, solvents and many chemicals.
![DSK38 Kupplung Drehgeber DSK38 Kupplung Drehgeber](/fileadmin/_processed_/1/b/csm_DSK38_Kupplung_Drehgeber_2340e391d9.jpg)
Double loop coupling DSK38
for encoder with shaft Ø 6 mm, 8 mm, 10 mm or 12 mm.
No moving parts, thermally and electrically insulating, smooth running, maintenance-free.
Good resistance to
Gasoline, oil, benzene, toluene, aromatic and non aromatic hydrocarbons, alcohols, glycols, solvents and many chemicals.
![MR200KR Messrad Drehgeber MR200KR Messrad Drehgeber](/fileadmin/_processed_/3/8/csm_MR200KR_Messrad_Drehgeber_8d8888d28b.jpg)
Measuring wheels MR200KR
Circumference 200 mm,
Surface finish: Metal, knurled
Fields of application: Pasteboard, wood, certain textiles.
For encoder with shaft Ø 6 mm or 10 mm.
![MRA200KR Messrad Drehgeber MRA200KR Messrad Drehgeber](/fileadmin/_processed_/f/c/csm_MRA200KR_Messrad_Drehgeber_ed6b1ffb18.jpg)
Measuring wheels MRA200KR
Circumference 200 mm,
Surface finish: Metal, knurled
Fields of application: Pasteboard, wood, textiles, rubber, soft plastic.
For encoder with shaft Ø 6 mm, Ø 10 mm or Ø 12 mm.
![MR200KH Messrad Drehgeber MR200KH Messrad Drehgeber](/fileadmin/_processed_/1/b/csm_MR200KH_Messrad_Drehgeber_be2ee6b7df.jpg)
Measuring wheels MR200KH
Circumference 200 mm,
Surface finish: Synthetic (Hytrel, even)
Fields of application: Plastic, painted surfaces, paper, pasteboard, wood, metal, textiles.
For encoder with shaft Ø 6 mm or 10 mm.
![MRA200KH Messrad Drehgeber MRA200KH Messrad Drehgeber](/fileadmin/_processed_/e/1/csm_MRA200KH_Messrad_Drehgeber_68cd3d6fa1.jpg)
Measuring wheels MRA200KH
Circumference 200 mm,
Surface finish: Synthetic (Polyurethan, even)
Fields of application: greased metal, steal profiles, painted surfaces, plastic, paper, pasteboard, wood, textiles, wire, leather.
For encoder with shaft Ø 6 mm, Ø 10 mm or Ø 12 mm.
![MR200NG Messrad Drehgeber MR200NG Messrad Drehgeber](/fileadmin/_processed_/0/c/csm_MR200NG_Messrad_Drehgeber_361e86090a.jpg)
Measuring wheels MR200NG
Circumference 200 mm,
Surface finish: Synthetic (pimpled rubber)
Fields of application: Textiles.
For encoder with shaft Ø 6 mm or 10 mm.
![MRA200NG Messrad Drehgeber MRA200NG Messrad Drehgeber](/fileadmin/_processed_/8/6/csm_MRA200NG_Messrad_Drehgeber_804d6be46c.jpg)
Measuring wheels MRA200NG
Circumference 200 mm,
Surface finish: Synthetic (pimpled Polyurethan)
Fields of application: rough textiles, carpet, cable measuring, fleece, paper, pasteboard, wood, plastic.
For encoder with shaft Ø 6 mm, Ø 10 mm or Ø 12 mm.
![MR200KG Messrad Drehgeber MR200KG Messrad Drehgeber](/fileadmin/_processed_/9/3/csm_MR200KG_Messrad_Drehgeber_90b3867395.jpg)
Measuring wheels MR200KG
Circumference 200 mm,
Surface finish: Synthetic (Hytrel, fluted)
Fields of application: Plastic, painted surfaces, paper, pasteboard, wood, metal, textiles.
For encoder with shaft Ø 6 mm or 10 mm.
![MRA200KG Messrad Drehgeber MRA200KG Messrad Drehgeber](/fileadmin/_processed_/5/a/csm_MRA200KG_Messrad_Drehgeber_7a96ac7b2d.jpg)
Measuring wheels MRA200KG
Circumference 200 mm,
Surface finish: Synthetic (Polyurethan, fluted)
Fields of application: metal ungreased, painted surfaces, plastic, paper, pasteboard, wood, textiles, glas, floor coverings.
For encoder with shaft Ø 6 mm, Ø 10 mm or Ø 12 mm.
