WDGA 36A RS485

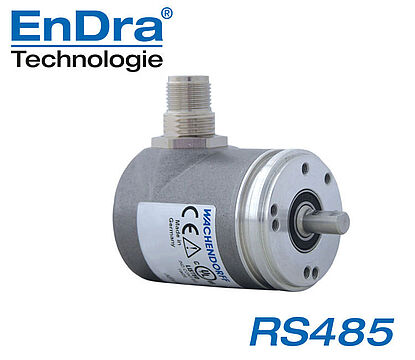

Absolute shaft encoder, magnetic, RS485 WDGA 36A
Synchro flange;
Housing: Ø 36 mm

16/32-bit Single-turn/Multi-turn;
Shaft: Ø 6 mm, 8 mm;
CRC checksum

Data sheet General technical data absolute encoders RS485 (PDF 592 kB)
Drehgeber WDGA36ARS485
Highlights
  • EnDra multiturn technology: maintenance-free and environmentally friendly
  • Compact industrial model
  • Interface: RS485
  • Preset input
  • Direction of counting changeable
  • Status indicator LED
  • EMC: EN 61000-6-2, EN 61000-6-3
Product details
Flange
synchro flange
Housing
Ø 36 mm
steel case chrome-plated, magnetic shielding
Resolution
Single-turn Resolution

up to 65,536 steps/360° (16 bit)

Multi-turn Resolution

up to 32 bit.

Shaft
Ø 6 mm
Shaft length: L: 11.5 mm
Max. Permissible shaft loading radial: 80 N
Max. Permissible shaft loading axial: 50 N
Ø 8 mm
Shaft length: L: 18 mm
Max. Permissible shaft loading radial: 50 N
Max. Permissible shaft loading axial: 50 N
Max. operating speed
12000 rpm
Power supply
10 VDC up to 32 VDC
Current consumption: typ. 50 mA
Power consumption: max. 0.5 W
4,75 VDC up to 5,5 VDC
Current consumption: typ. 80 mA
Power consumption: max. 0.44 W
Operating temperature
-40 °C up to +85 °C
Storage temperature
-40 °C up to +100 °C
Protection class
Housing: IP65, IP67; shaft sealed: IP65; (IP40 for K1)
STEP data:

Your desired STEP file is not listed:
Request STEP file here

Description

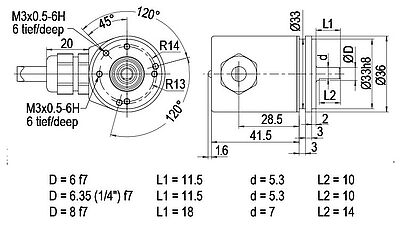

L2 axial, shield connected to encoder housing
Assignments
S- (GND)WH
S+ (DCin)BN
A (DATA+)GY
B (DATA-)PK
PRESETBU
DIRRD
Shieldhousing
STEP data:

Your desired STEP file is not listed:
Request STEP file here

Description
K1 radial, shield not connected
Assignments
S- (GND)WH
S+ (DCin)BN
A (DATA+)GY
B (DATA-)PK
PRESETBU
DIRRD
Shieldhousing n. c.
STEP data:

Your desired STEP file is not listed:
Request STEP file here

Description

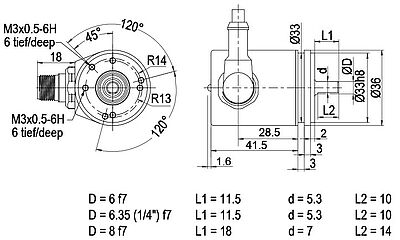

CB8 axial, 8-pin, shield connected to encoder housing
Assignments
S- (GND)1
S+ (DCin)2
A (DATA+)5
B (DATA-)6
PRESET7
DIR8
Shieldhousing
KI867EIA Drehgeber Kabeldose
KI-8-67-EIA

Female connector KI-8-67-EIA:
Suitable for encoder absolute WDGA RS485
with connector outlet CB8 and CC8, 8 pin, IP67

Ready-made shielded connection cable
with female cable connector straight, shield connected.

KIA867EIA Drehgeber Kabeldose
KIA-8-67-EIA

Female connector KIA-8-67-EIA:
Suitable for encoder absolute WDGA RS485
with sensor connector outlet CB8 and CC8, 8 pin, IP67

Ready-made shielded connection cable
with female cable connector angular, shield connected.

SP300 Drehgeber Spannexzenter
SP-3-00

Clamping claw SP-3-00

suitable for incremental encoder WDG 40A, 50B, 58T, WDGI 58A, 58B, 58C, 58D, 58K, 63B and absolute encoder WDGA 36A, WDGA 58A, WDGA 58B.

ST27 Kupplung Drehgeber
ST27

Jointed coupling ST27

for encoder with shaft Ø 6 mm or 10 mm

PK20 Kupplung Drehgeber
PK20

Slit coupling PK20

for encoder with shaft Ø 6 mm.

PK24 Kupplung Drehgeber
PK24

Slit coupling PK24

for encoder with shaft Ø 6 mm, 8 mm or 10 mm.

FSK22 Kupplung Drehgeber
FSK22

Spring disc coupling FSK22

for encoder with shaft Ø 6 mm, 10 mm or 12 mm.

WK22 Kupplung Drehgeber
WK22

Helical coupling WK22

for encoder with shaft Ø 6 mm.

WK24 Kupplung Drehgeber
WK24

Helical coupling WK24

for encoder with shaft Ø 6 mm, 8 mm, 10 mm or 12 mm.

WK32 Kupplung Drehgeber
WK32

Helical coupling WK32

for encoder with shaft Ø 6 mm or 10 mm.

BK29 Kupplung Drehgeber
BK29

Bellows coupling BK29

for encoder with shaft Ø 6 mm, 8 mm, 10 mm or 12 mm*.
Max. offset of shafts radial: ± 0,25 mm or ± 0,30 mm*
Torsion spring stiffness: 150 Nm/rad or 130 Nm/rad*

FB29B Kupplung Drehgeber
FB29B

Bellows coupling FB29B

for encoder with shaft Ø 4 mm, 6 mm, 8 mm, 10 mm or 12 mm.

DSK29 Kupplung Drehgeber
DSK29

Double loop coupling DSK29

for encoder with shaft Ø 6 mm, 8 mm or 10 mm.
No moving parts, thermally and electrically insulating, smooth running, maintenance-free.
Good resistance to
Gasoline, oil, benzene, toluene, aromatic and non aromatic hydrocarbons, alcohols, glycols, solvents and many chemicals.

DSK38 Kupplung Drehgeber
DSK38

Double loop coupling DSK38

for encoder with shaft Ø 6 mm, 8 mm, 10 mm or 12 mm.
No moving parts, thermally and electrically insulating, smooth running, maintenance-free.
Good resistance to
Gasoline, oil, benzene, toluene, aromatic and non aromatic hydrocarbons, alcohols, glycols, solvents and many chemicals.

Generally encoder specifications

Absolute encoder specifications

Electrical connection

Cable outlet
Connector
Connection cover
###field_abs_ah_bestcode###

Your configured order code

ShaftSingleturnMultiturnInterfaceSoftwareCodeSupplyGalv.Connection
WDGA 36AEIAB0
