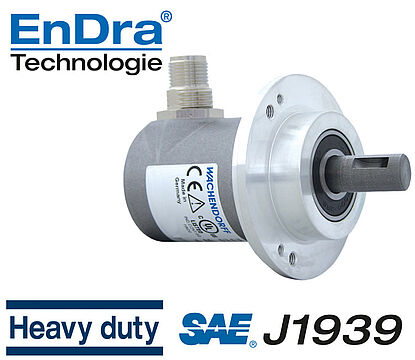

Absolute shaft encoder, magnetic, CAN SAE J1939 WDGA 58D
clamping flange;
Housing: Ø 58 mm
16/32-bit Single-turn/Multi-turn;
Shaft: Ø 12 mm
High shaft load: radial 500 N, axial 500 N
- EnDra® Multiturn Technology: maintenance-free and environmentally friendly
- CAN SAE J1939 protocol
- Forward-looking technology with 32 Bit processor
- 2-colour-LED as indicator for operating condition
- High shaft load up to 500 N radial, 500 N axial
65.536 steps/360° (16 bit)
Multi-turn Resolutionup to 32 bit
Shaft length: L: 25 mm
Max. Permissible shaft loading radial: 500 N
Max. Permissible shaft loading axial: 500 N
Current consumption: typ. 50 mA
Power consumption: max. 0.5 W
LED signaling
Demonstration of the LED status signaling
| Description | |
|---|---|
| CB5 | axial, 5-pin, shield connected to encoder housing |
| Description | |
|---|---|
| CC5 | radial, 5-pin, shield connected to encoder housing |
| Description | |
|---|---|
| L1 | radial, shield connected to encoder housing (IP40) |
| (+) Vcc | BN |
| GND | WH |
| CANHigh | GN |
| CANLow | YE |
| CANGND shield | shield |
| Description | |
|---|---|
| L2 | axial, shield connected to encoder housing |
| (+) Vcc | BN |
| GND | WH |
| CANHigh | GN |
| CANLow | YE |
| CANGND shield | shield |
| Description | |
|---|---|
| L3 | radial, shield connected to encoder housing |
| (+) Vcc | BN |
| GND | WH |
| CANHigh | GN |
| CANLow | YE |
| CANGND shield | shield |
- Absolute encoders with flange Ø 36 mm / Ø 58 mm
- Single-/Multiturn (16/43)
- Ground-breaking technology 32 Bit processor
- Very high shaft loading, IP67
- EnDra® Multiturn technology: No gears, no battery
- QuattroMag® Singleturn technology: High precision +/- 0,0878°
Download (1.34 MB)
- Incremental and absolute encoders
- Digital shaft copying
- Made in Germany
- Motorfeedback
- Position Measurement Systems
Download (4.24 MB)
Mounting angle MW58B
suitable for inkremental encoder WDGI 58B, 58K, 58D, 58N, WDG 58T and
absolute encoder WDGA 58B, WDGA 58D.
Square flange QF58B
suitable for incremental encoder WDGI 58B, 58K, 58D, 58N, WDG 58T and
absolute encoder WDGA 58B, WDGA 58D.
Square flange WDGQF58B04
suitable for incremental encoder WDGI 58B, 58K, 58D, 58N, WDG 58T and
absolute encoder WDGA 58B, WDGA 58D.
Helical coupling WK24
for encoder with shaft Ø 6 mm, 8 mm, 10 mm or 12 mm.
Bellows coupling BK29
for encoder with shaft Ø 6 mm, 8 mm, 10 mm or 12 mm*.
Max. offset of shafts radial: ± 0,25 mm or ± 0,30 mm*
Torsion spring stiffness: 150 Nm/rad or 130 Nm/rad*
Double loop coupling DSK38
for encoder with shaft Ø 6 mm, 8 mm, 10 mm or 12 mm.
No moving parts, thermally and electrically insulating, smooth running, maintenance-free.
Good resistance to
Gasoline, oil, benzene, toluene, aromatic and non aromatic hydrocarbons, alcohols, glycols, solvents and many chemicals.
Double loop coupling DSK48
for encoder with shaft Ø 10 mm, 12 mm or 14 mm.
No moving parts, thermally and electrically insulating, smooth running, maintenance-free.
Good resistance to
Gasoline, oil, benzene, toluene, aromatic and non aromatic hydrocarbons, alcohols, glycols, solvents and many chemicals.
Spring-loaded arm for encoder types
58B, 58D, 58K, 58N and 58T
for length determination
Spring-loaded arm for encoder types
58B, 58D, 58K, 58N and 58T
for length determination
STEP download WDGMA51052_01
STEP download WDGMA51052_02
STEP download WDGMA51052_03
Spring-loaded arm for encoder types
58B, 58D, 58K, 58N and 58T
for length determination
STEP download WDGMA10000_A
STEP download WDGMA10000_B
STEP download WDGMA10000_C
Linear equilization shaft encoder holder for encoder types 58B, 58D, 58K, 58N and 58T
for lenght determination
Measuring wheels MRA200KR
Circumference 200 mm,
Surface finish: Metal, knurled
Fields of application: Pasteboard, wood, textiles, rubber, soft plastic.
For encoder with shaft Ø 6 mm, Ø 10 mm or Ø 12 mm.
Measuring wheels MRA200KH
Circumference 200 mm,
Surface finish: Synthetic (Polyurethan, even)
Fields of application: greased metal, steal profiles, painted surfaces, plastic, paper, pasteboard, wood, textiles, wire, leather.
For encoder with shaft Ø 6 mm, Ø 10 mm or Ø 12 mm.
Measuring wheels MRA200NG
Circumference 200 mm,
Surface finish: Synthetic (pimpled Polyurethan)
Fields of application: rough textiles, carpet, cable measuring, fleece, paper, pasteboard, wood, plastic.
For encoder with shaft Ø 6 mm, Ø 10 mm or Ø 12 mm.
Measuring wheels MRA200KG
Circumference 200 mm,
Surface finish: Synthetic (Polyurethan, fluted)
Fields of application: metal ungreased, painted surfaces, plastic, paper, pasteboard, wood, textiles, glas, floor coverings.
For encoder with shaft Ø 6 mm, Ø 10 mm or Ø 12 mm.
Measuring wheels MRA500KR
Circumference 500 mm,
Surface finish: Metal, knurled
Fields of application: Pasteboard, wood, textiles, rubber, soft plastic.
For encoder with shaft Ø 10 mm or Ø 12 mm.
Measuring wheels MRA500KH
Circumference 500 mm,
Surface finish: Synthetic (Polyurethan, even)
Fields of application: greased metal, steal profiles, painted surfaces, plastic, paper, pasteboard, wood, textiles, wire, leather.
For encoder with shaft Ø 10 mm or Ø 12 mm.
Measuring wheels MRA500NG
Circumference 500 mm,
Surface finish: Synthetic (pimpled Polyurethan)
Fields of application: rough textiles, carpet, cable measuring, fleece, paper, pasteboard, wood, plastic.
For encoder with shaft Ø 10 mm or Ø 12 mm.
Measuring wheels MRA500KG
Circumference 500 mm,
Surface finish: Synthetic (Polyurethan, fluted)
Fields of application: metal ungreased, painted surfaces, plastic, paper, pasteboard, wood, textiles, glas, floor coverings.
For encoder with shaft Ø 10 mm or Ø 12 mm.
The encoder WDGA 58D CAN SAE J1939 is also available with fixed 120 Ohm terminating resistor.
