WDGA 36A CAN SAE J1939

Absolute shaft encoder, magnetic, CAN SAE J1939 WDGA 36A
Servo flange;
Housing: Ø 36 mm

16/32-bit Single-turn/Multi-turn;
Shaft: Ø 6 mm, 1/4", 8 mm

Data sheet

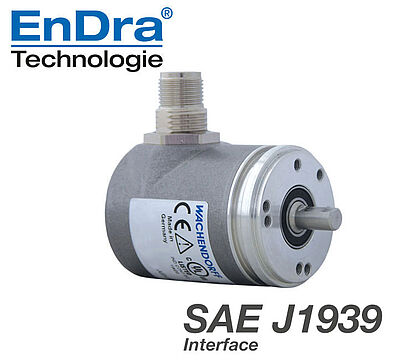

Drehgeber WDGA36ASAEJ1939
Highlights
  • EnDra® Multiturn Technology:
  • maintenance-free and environmentally friendly
  • CAN SAE J1939 protocol
  • Forward-looking technology with 32 Bit processor
  • 2-colour-LED as indicator for operating condition
Product details
Flange
servo flange
Housing
Ø 36 mm
stainless steel
Resolution
Single-turn Resolution

65.536 steps/360° (16 bit)

Multi-turn Resolution

up to 32 bit

Shaft
Ø 6 mm
Shaft length: L: 11.5 mm
Max. Permissible shaft loading radial: 80 N
Max. Permissible shaft loading axial: 50 N
Ø 6.35 mm
Shaft length: L: 11.5 mm
Max. Permissible shaft loading radial: 80 N
Max. Permissible shaft loading axial: 50 N
Ø 8 mm
Shaft length: L: 18 mm
Max. Permissible shaft loading radial: 50 N
Max. Permissible shaft loading axial: 50 N
Max. operating speed
12000 rpm
Power supply
4,75 VDC up to 32 VDC
Current consumption: typ. 50 mA
Power consumption: max. 0.5 W
Operating temperature
-40 °C up to +85 °C
Storage temperature
-40 °C up to +100 °C
Protection class
Housing: IP65, IP67; shaft sealed: IP65; cable outlet L1: IP40
STEP viewer / STEP data:

Your desired STEP file is not listed:
Request STEP file here

Description

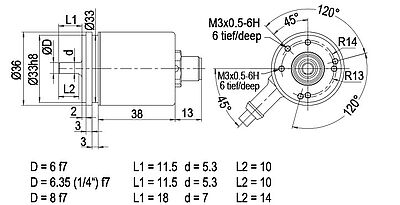

CB5 axial, 5-pin, shield connected to encoder housing
Assignments
(+) Vcc2
GND3
CANHigh4
CANLow5
CANGND shield1
STEP viewer / STEP data:

Your desired STEP file is not listed:
Request STEP file here

Description

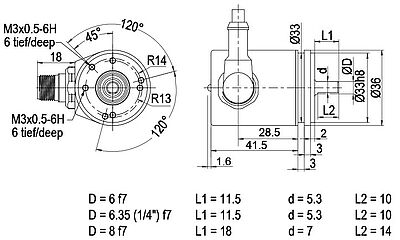

CC5 radial, 5-pin, shield connected to encoder housing
Assignments
(+) Vcc2
GND3
CANHigh4
CANLow5
CANGND shield1
STEP viewer / STEP data:

Your desired STEP file is not listed:
Request STEP file here

Description
L1 radial, shield connected to encoder housing (IP40)
Assignments
(+) VccBN
GNDWH
CANHighGN
CANLowYE
CANGND shieldshield
STEP viewer / STEP data:

Your desired STEP file is not listed:
Request STEP file here

Description
L2 axial, shield connected to encoder housing
Assignments
(+) VccBN
GNDWH
CANHighGN
CANLowYE
CANGND shieldshield
STEP viewer / STEP data:

Your desired STEP file is not listed:
Request STEP file here

Description
L3 radial, shield connected to encoder housing
Assignments
(+) VccBN
GNDWH
CANHighGN
CANLowYE
CANGND shieldshield
