WDGA 58D SAEJ1939 galv. isolation

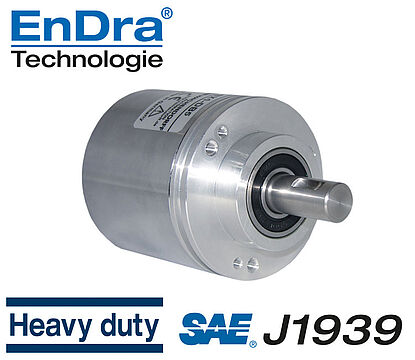

Absolute shaft encoder, magnetic, CAN SAE J1939 WDGA 58D
Galvanic isolation

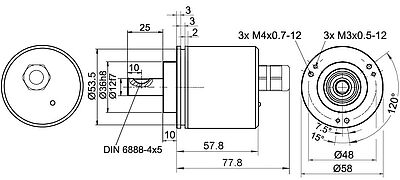

Clamping flange;
Housing: Ø 58 mm

16/32-bit Single-turn/Multi-turn;
Shaft: Ø 12 mm

Data sheet
Drehgeber WDGA58D SAEJ1939 galv
Highlights
  • EnDra® Multiturn Technology: maintenance-free and environmentally friendly
  • CAN SAE J1939 protocol
  • Forward-looking technology with 32 Bit processor
  • 2-colour-LED as indicator for operating condition
  • High shaft load up to 400 N radial, 400 N axial
Product details
Flange
clamping flange
Housing
steel case chrome-plated, magnetic shielding
Resolution
Single-turn Resolution

65.536 steps/360° (16 bit)

Multi-turn Resolution

up to 32 bit

Shaft
Ø 12 mm
Shaft length: L: 25 mm
Max. Permissible shaft loading radial: 400 N
Max. Permissible shaft loading axial: 400 N
Max. operating speed
8000 rpm
Power supply
10 VDC up to 32 VDC
Current consumption: typ. 100 mA
Power consumption: max. 1 W
Operating temperature
-40 °C up to +85 °C
Storage temperature
-40 °C up to +100 °C
Protection class
Housing: IP65, IP67; shaft sealed: IP65

Your desired STEP file is not listed:
Request STEP file here

Description
CB5 axial, 5-pin, shield connected to encoder housing
Assignments
(+) Vcc2
GND3
CANHigh4
CANLow5
CANGND shield1

Your desired STEP file is not listed:
Request STEP file here

Description
CC5 radial, 5-pin, shield connected to encoder housing
Assignments
(+) Vcc2
GND3
CANHigh4
CANLow5
CANGND shield1

Your desired STEP file is not listed:
Request STEP file here

Description
DB5 axial, 5-pin, shield connected to encoder housing
Assignments
Female connectorM12x1, 5-pin
(+) Vcc2
GND3
CANHigh4
CANLow5
CANGND shield1
ConnectorM12x1, 5-pin
(+) Vcc2
GND3
CANHigh4
CANLow5
CANGND shield1
MW58B Drehgeber Montagewinkel
MW58B

Mounting angle MW58B

suitable for inkremental encoder WDGI 58B, 58K, 58D, WDG 58T and
absolute encoder WDGA 58B, WDGA 58D.

QF58B Drehgeber Quadratflansch
QF58B

Square flange QF58B

suitable for incremental encoder WDG 58B and
absolute encoder WDGA 58B.

SP300 Drehgeber Spannexzenter
SP-3-00

Clamping claw SP-3-00

suitable for incremental encoder WDG 40A, 50B, 58T, WDGI 58A, 58B, 58C, 58D, 58K, 63B and absolute encoder WDGA 36A, WDGA 58A, WDGA 58B.

FSK22 Kupplung Drehgeber
FSK22

Spring disc coupling FSK22

for encoder with shaft Ø 6 mm, 10 mm or 12 mm.

WK24 Kupplung Drehgeber
WK24

Helical coupling WK24

for encoder with shaft Ø 6 mm, 8 mm, 10 mm or 12 mm.

BK29 Kupplung Drehgeber
BK29

Bellows coupling BK29

for encoder with shaft Ø 6 mm, 8 mm, 10 mm or 12 mm*.
Max. offset of shafts radial: ± 0,25 mm or ± 0,30 mm*
Torsion spring stiffness: 150 Nm/rad or 130 Nm/rad*

FB29B Kupplung Drehgeber
FB29B

Bellows coupling FB29B

for encoder with shaft Ø 4 mm, 6 mm, 8 mm, 10 mm or 12 mm.

DSK38 Kupplung Drehgeber
DSK38

Double loop coupling DSK38

for encoder with shaft Ø 6 mm, 8 mm, 10 mm or 12 mm.
No moving parts, thermally and electrically insulating, smooth running, maintenance-free.
Good resistance to
Gasoline, oil, benzene, toluene, aromatic and non aromatic hydrocarbons, alcohols, glycols, solvents and many chemicals.

DSK48 Kupplung Drehgeber
DSK48

Double loop coupling DSK48

for encoder with shaft Ø 10 mm, 12 mm or 14 mm.
No moving parts, thermally and electrically insulating, smooth running, maintenance-free.
Good resistance to
Gasoline, oil, benzene, toluene, aromatic and non aromatic hydrocarbons, alcohols, glycols, solvents and many chemicals.

The encoder WDGA 58D CAN SAE J1939 galv. is also available with fixed 120 Ohm terminating resistor.

Generally encoder specifications

Absolute encoder specifications

Electrical connection

Cable outlet
Connector
Connection cover
###field_abs_ah_bestcode###

Your configured order code

ShaftSingleturnMultiturnInterfaceSoftwareCodeSupplyGalv.ConnectionOption
WDGA 58DCJAB01
