WDGA 36J IO-Link

Absolute shaft encoder, magnetic, IO-Link WDGA 36J
Protection rating: IP67 + IP69K,
(high pressure / steam cleaning)
High shaft load: 300 N axial / radial

Servo flange;
Housing: Ø 36 mm

16/43-bit Single-turn/Multi-turn;
Shaft: Ø 10 mm;
Device Profile for encoder Smart Sensor Profile (SSP);
binary code

Data sheet General technical Data and safety instructions absolute encoders WDGA IO-Link (PDF 585 kB)
Drehgeber Encoder WDGA36J IO-Link
Highlights
  • Protection rating: IP67 + IP69K, (high pressure / steam cleaning)
  • EnDra®: maintenance-free and environmentally friendly
  • IO-Link, Single-turn and Multi-turn
  • Device Profile for encoder Smart Sensor Profile (SSP)
  • Single-turn/Multi-turn (16 bit / 43 bit)
  • Forward-looking technology with 32 Bit processor
  • LED as indicator for operating condition and Error message
  • Monitoring the power supply
  • Cam switches for position and velocity with hysterese
Product details
Flange
servo flange
Housing
Ø 36 mm
stainless steel
Resolution
Single-turn Resolution

65,536 steps/360° (16 bit)

Multi-turn Resolution

up to 32 bit with high precision value up to 43 bit.

Shaft
Ø 10 mm
Shaft length: L: 20 mm
Max. Permissible shaft loading radial: 300 N
Max. Permissible shaft loading axial: 300 N
Max. operating speed
12000 rpm
Power supply
18 VDC up to 30 VDC
Current consumption: typ. 20 mA
Power consumption: max. 0.5 W
Operating temperature
-40 °C up to +85 °C
Storage temperature
-40 °C up to +100 °C
Protection class
IP67+IP69K all around
STEP viewer / STEP data:

Your desired STEP file is not listed:
Request STEP file here

Description

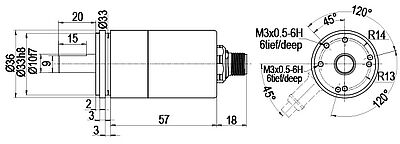

IB5 axial, 5-pin, shield connected to encoder housing
Assignments
L+1
L-3
C/Q4
I2
n. c.5
STEP viewer / STEP data:

Your desired STEP file is not listed:
Request STEP file here

Description

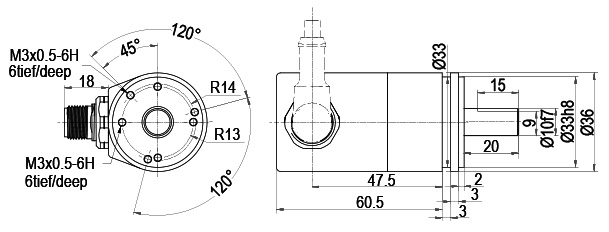

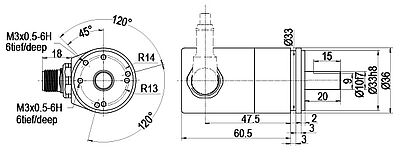

IC5 radial, 5-pin, shield connected to encoder housing
Assignments
L+1
L-3
C/Q4
I2
n. c.5
