WDGI 115T

Shaft Encoder incremental, optical,
resolution: up to 25000 ppr,
Tacho flange: Ø 115 mm

Shaft: Ø 10 mm,
Ø 7 mm / Ø 8 mm / Ø 12 mm on request,
protection rating: up to IP67 all around,
Signal shape: square-wave or sine/cosine.

Data sheetGeneral technical data incremental encoders (PDF 855 kB)
Drehgeber WDGI115T
Highlights
  • Digital Tachogenerator with robust Standard-flange
  • Housing cap die cast aluminum,
    with particularly eco-friendly powder coating
  • Up to 25000 PPR by use of high grad electronics
  • High noise immunity against frequency inverters
  • Protection to IP67, shaft sealed to IP65
  • 10 mm shaft
  • Full connection protection with 10 VDC up to 30 VDC
  • High output frequency 600 kHz/2 MHz
  • Optional:
    -40 °C up to +85 °C,
    Protection to IP67 all around,
    Pressure equalising membrane
Product details
Flange
tacho flange
Pulses per revolution PPR
up to 25000 PPR
Housing
Ø 115 mm
die cast aluminum, powder coated
Shaft
Ø 10 mm
Shaft length: L: 25 mm
Max. Permissible shaft loading radial: 200 N
Max. Permissible shaft loading axial: 120 N
Advice: Ø 7 mm / Ø 8 mm / Ø 12 mm on request
Max. operating speed
8000 rpm
Output circuit
TTL
TTL, RS422 compatible, inv.
HTL
HTL, inv.
1 Vpp sin/cos
Output frequency
TTL ≤ 5000 ppr, max. 200 kHz
HTL ≤ 5000 ppr, max. 200 kHz
TTL more than 1200 ppr, max. 2 MHz
HTL more than 1200 ppr, max. 600 kHz
1 Vpp sin/cos, max. 100 kHz
Power supply
4,75 VDC up to 5,5 VDC
Current consumption: typ. 100 mA
5 VDC up to 30 VDC
Current consumption: typ. 70 mA
10 VDC up to 30 VDC
Current consumption: typ. 100 mA

Environmental data

ESD (DIN EN 61000-4-2):

8 kV

Burst (DIN EN 61000-4-4):

2 kV

includes EMC:

DIN EN 61000-6-2
DIN EN 61000-6-3

Vibration:
(DIN EN 60068-2-6)

50 m/s2 (10 Hz up to 2000 Hz)

Shock:
(DIN EN 60068-2-27)

1000 m/s2 (6 ms)

Design:

according DIN VDE 0160

Duty information

Customs tariff number:

90318020

Country of origin:

Germany

Operating temperature
Connector: -40 °C up to +85 °C, cable: -20 °C up to +80 °C, (Option ACA: -40 °C up to +85 °C)
1 Vpp: -10 °C up to +70 °C
Protection class
Housing: IP65, IP67; shaft sealed: IP65

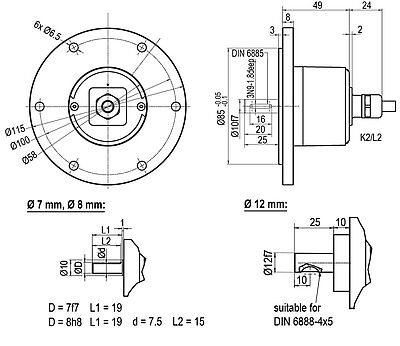

STEP viewer / STEP data:

Your desired STEP file is not listed:
Request STEP file here

DescriptionABN inv. poss.
K2axial, shield not connected
L2axial, shield connected to encoder housing
Assignments
 K2, L2K2, L2K2, L2K2, L2L2
CircuitG05, G24F05, H05, F24, H24, H30I05, I24, 524P05, R05, P24, R24, 245, 645, R30SIN
GNDWHWHWHWHWH
(+) VccBNBNBNBNBN
AGNGNGNGNGN
BYEYEYEYEGY
NGYGYGYGY-
Light reserve warningPK-PK--
A inv.--RDRDYE
B inv.--BK, (BU at ACA)BK, (BU at ACA)PK
N inv.--VTVT-
Shieldflexflexflexflexflex
STEP viewer / STEP data:

Your desired STEP file is not listed:
Request STEP file here

DescriptionABN inv. poss.
K3radial, shield not connected
L3radial, shield connected to encoder housing
Assignments
 K3, L3K3, L3K3, L3K3, L3L3
CircuitG05, G24F05, H05, F24, H24, H30I05, I24, 524P05, R05, P24, R24, 245, 645, R30SIN
GNDWHWHWHWHWH
(+) VccBNBNBNBNBN
AGNGNGNGNGN
BYEYEYEYEGY
NGYGYGYGY-
Light reserve warningPK-PK--
A inv.--RDRDYE
B inv.--BK, (BU at ACA)BK, (BU at ACA)PK
N inv.--VTVT-
Shieldflexflexflexflexflex
STEP viewer / STEP data:

Your desired STEP file is not listed:
Request STEP file here

DescriptionABN inv. poss.
SI5axial, 5-pin, Connector connected to encoder housing-
SI6axial, 6-pin, Connector connected to encoder housing-
SI8axial, 8-pin, Connector connected to encoder housing
SI12axial, 12-pin, Connector connected to encoder housing
Assignments
SI5SI6SI6SI8SI8SI8SI12SI12SI12SI12SI12
 5-pin6-pin6-pin8-pin8-pin8-pin12-pin12-pin12-pin12-pin12-pin
connector drawing
CircuitF05, H05, F24, H24, H30G05, G24F05, H05, F24, H24, H30F05, H05, F24, H24, H30P05, R05, P24, R24, R30, 245, 645SING05, G24F05, H05, F24, H24, H30I05, I24, 524P05, R05, P24, R24, 245, 645, R30SIN
GND166111K, LK, LK, LK, LK, L
(+) Vcc211222M, BM, BM, BM, BM, B
A322333EEEEE
B444444HHHHH
N53355-CCCC-
Light reserve warning-5----G-G--
A inv.----66--FFF
B inv.----77--AAA
N inv.----8---DD-
n. c.--56, 7, 8-5, 8A, D, F, JA, D, F, G, JJG, JD, G, J
Shield-----------
STEP viewer / STEP data:

Your desired STEP file is not listed:
Request STEP file here

DescriptionABN inv. poss.
SH5radial, 5-pin, Connector connected to encoder housing-
SH6radial, 6-pin, Connector connected to encoder housing-
SH8radial, 8-pin, Connector connected to encoder housing
SH12radial, 12-pin, Connector connected to encoder housing
Assignments
SH5SH6SH6SH8SH8SH8SH12SH12SH12SH12SH12
 5-pin6-pin6-pin8-pin8-pin8-pin12-pin12-pin12-pin12-pin12-pin
connector drawing
CircuitF05, H05, F24, H24, H30G05, G24F05, H05, F24, H24, H30F05, H05, F24, H24, H30P05, R05, P24, R24, R30, 245, 645SING05, G24F05, H05, F24, H24, H30I05, I24, 524P05, R05, P24, R24, 245, 645, R30SIN
GND166111K, LK, LK, LK, LK, L
(+) Vcc211222M, BM, BM, BM, BM, B
A322333EEEEE
B444444HHHHH
N53355-CCCC-
Light reserve warning-5----G-G--
A inv.----66--FFF
B inv.----77--AAA
N inv.----8---DD-
n. c.--56, 7, 8-5, 8A, D, F, JA, D, F, G, JJG, JD, G, J
Shield-----------
STEP viewer / STEP data:

Your desired STEP file is not listed:
Request STEP file here

DescriptionABN inv. poss.
S2axial, 7-pin, Connector connected to encoder housing-
Assignments
S2S2
 7-pin7-pin
connector drawing
CircuitG05, G24F05, H05, F24, H24, H30
GND11
(+) Vcc22
A33
B44
N55
Light reserve warning6-
A inv.--
B inv.--
N inv.--
n. c.76, 7
Shield--
STEP viewer / STEP data:

Your desired STEP file is not listed:
Request STEP file here

DescriptionABN inv. poss.
S3radial, 7-pin, Connector connected to encoder housing-
Assignments
S3S3
 7-pin7-pin
connector drawing
CircuitG05, G24F05, H05, F24, H24, H30
GND11
(+) Vcc22
A33
B44
N55
Light reserve warning6-
A inv.--
B inv.--
N inv.--
n. c.76, 7
Shield--
STEP viewer / STEP data:

Your desired STEP file is not listed:
Request STEP file here

DescriptionABN inv. poss.
S4axial, 12-pin, Connector connected to encoder housing
Assignments
S4S4S4S4S4
 12-pin12-pin12-pin12-pin12-pin
connector drawing
CircuitG05, G24F05, H05, F24, H24, H30I05, I24, 524P05, R05, P24, R24, 245, 645, R30SIN
GND1010101010
(+) Vcc1212121212
A55555
B88888
N3333-
Light reserve warning11-11--
A inv.--666
B inv.--111
N inv.--44-
n. c.1, 2, 4, 6, 7, 91, 2, 4, 6, 7, 9, 112, 7, 92, 7, 9, 112, 3, 4, 7, 9, 11
Shield-----
STEP viewer / STEP data:

Your desired STEP file is not listed:
Request STEP file here

DescriptionABN inv. poss.
S5radial, 12-pin, Connector connected to encoder housing
Assignments
S5S5S5S5S5
 12-pin12-pin12-pin12-pin12-pin
connector drawing
CircuitG05, G24F05, H05, F24, H24, H30I05, I24, 524P05, R05, P24, R24, 245, 645, R30SIN
GND1010101010
(+) Vcc1212121212
A55555
B88888
N3333-
Light reserve warning11-11--
A inv.--666
B inv.--111
N inv.--44-
n. c.1, 2, 4, 6, 7, 91, 2, 4, 6, 7, 9, 112, 7, 92, 7, 9, 112, 3, 4, 7, 9, 11
Shield-----
STEP viewer / STEP data:

Your desired STEP file is not listed:
Request STEP file here

DescriptionABN inv. poss.
S4Raxial, 12-pin, Connector connected to encoder housing
Assignments
S4RS4RS4RS4RS4R
 12-pin12-pin12-pin12-pin12-pin
connector drawing
CircuitG05, G24F05, H05, F24, H24, H30I05, I24, 524P05, R05, P24, R24, 245, 645, R30SIN
GND1010101010
(+) Vcc1212121212
A55555
B88888
N3333-
Light reserve warning11-11--
A inv.--666
B inv.--111
N inv.--44-
n. c.1, 2, 4, 6, 7, 91, 2, 4, 6, 7, 9, 112, 7, 92, 7, 9, 112, 3, 4, 7, 9, 11
Shield-----
STEP viewer / STEP data:

Your desired STEP file is not listed:
Request STEP file here

DescriptionABN inv. poss.
S5Rradial, 12-pin, Connector connected to encoder housing
Assignments
S5RS5RS5RS5RS5R
 12-pin12-pin12-pin12-pin12-pin
connector drawing
CircuitG05, G24F05, H05, F24, H24, H30I05, I24, 524P05, R05, P24, R24, 245, 645, R30SIN
GND1010101010
(+) Vcc1212121212
A55555
B88888
N3333-
Light reserve warning11-11--
A inv.--666
B inv.--111
N inv.--44-
n. c.1, 2, 4, 6, 7, 91, 2, 4, 6, 7, 9, 112, 7, 92, 7, 9, 112, 3, 4, 7, 9, 11
Shield-----
STEP viewer / STEP data:

Your desired STEP file is not listed:
Request STEP file here

DescriptionABN inv. poss.
SB4axial, 4-pin, Connector connected to encoder housing-
SB5axial, 5-pin, Connector connected to encoder housing-
SB8axial, 8-pin, Connector connected to encoder housing
SB12axial, 12-pin, Connector connected to encoder housing
Assignments
SB4SB5SB8SB8SB8SB12SB12SB12SB12
 4-pin5-pin8-pin8-pin8-pin12-pin12-pin12-pin12-pin
connector drawing
CircuitF05, H05, F24, H24, H30F05, H05, F24, H24, H30F05, H05, F24, H24, H30P05, R05, P24, R24, R30, 245, 645SING05, G24F05, H05, F24, H24, H30I05, I24, 524P05, R05, P24, R24, 245, 645, R30
GND331113333
(+) Vcc112221111
A243334444
B424456666
N-555-8888
Light reserve warning-----5-5-
A inv.---64--99
B inv.---76--77
N inv.---8---1010
n. c.--6, 7, 8-7, 82, 7, 9, 10, 11, 122, 5, 7, 9, 10, 11, 122, 11, 122, 5, 11, 12
Shield---------
STEP viewer / STEP data:

Your desired STEP file is not listed:
Request STEP file here

DescriptionABN inv. poss.
SC4radial, 4-pin, Connector connected to encoder housing-
SC5radial, 5-pin, Connector connected to encoder housing-
SC8radial, 8-pin, Connector connected to encoder housing
SC12radial, 12-pin, Connector connected to encoder housing
Assignments
SC4SC5SC8SC8SC8SC12SC12SC12SC12
 4-pin5-pin8-pin8-pin8-pin12-pin12-pin12-pin12-pin
connector drawing
CircuitF05, H05, F24, H24, H30F05, H05, F24, H24, H30F05, H05, F24, H24, H30P05, R05, P24, R24, R30, 245, 645SING05, G24F05, H05, F24, H24, H30I05, I24, 524P05, R05, P24, R24, 245, 645, R30
GND331113333
(+) Vcc112221111
A243334444
B424456666
N-555-8888
Light reserve warning-----5-5-
A inv.---64--99
B inv.---76--77
N inv.---8---1010
n. c.--6, 7, 8-7, 82, 7, 9, 10, 11, 122, 5, 7, 9, 10, 11, 122, 11, 122, 5, 11, 12
Shield---------
up to 2500 PPR
Power supply VDC
5 - 30 VDC
Current consumption
typ. 70 mA
Signal shape
square-wave
Output circuit
HTL (TTL at 5 VDC)
Channels
AB, ABN
Output
push-pull
Load
max. 40 mA / channel
Signal level mA
at 20 mA
Signal level H>
H > Vcc -10% Vcc
Signal level L<
L < 2.5 VDC
Output frequency
max. 200 kHz
Circuit protection
inverse-polarity protection only
Light reserve warning
no
Power supply VDC
5 - 30 VDC
Current consumption
typ. 70 mA
Signal shape
square-wave
Output circuit
HTL, inv. (TTL/RS422 comp. at 5 VDC)
Channels
AB, ABN, and inverted signals
Output
push-pull
Load
max. 40 mA / channel
Signal level mA
at 20 mA
Signal level H>
H > Vcc -10% Vcc
Signal level L<
L < 2.5 VDC
Output frequency
max. 200 kHz
Circuit protection
inverse-polarity protection only
Light reserve warning
no
up to 5000 PPR
Power supply VDC
4.75 - 5.5 VDC
Current consumption
typ. 70 mA
Signal shape
square-wave
Output circuit
TTL
Channels
ABN
Output
push-pull
Load
max. 40 mA / channel
Signal level mA
at 20 mA
Signal level H>
H > 2.5 VDC
Signal level L<
L < 0.5 VDC
Output frequency
max. 200 kHz
Circuit protection
no
Light reserve warning
yes
Power supply VDC
4.75 - 5.5 VDC
Current consumption
typ. 70 mA
Signal shape
square-wave
Output circuit
TTL
Channels
AB, ABN
Output
push-pull
Load
max. 40 mA / channel
Signal level mA
at 20 mA
Signal level H>
H > 2.5 VDC
Signal level L<
L < 0.5 VDC
Output frequency
max. 200 kHz
Circuit protection
no
Light reserve warning
no
Power supply VDC
4.75 - 5.5 VDC
Current consumption
typ. 70 mA
Signal shape
square-wave
Output circuit
TTL, RS422 comp., inverted
Channels
AB, ABN, and inverted signals
Output
push-pull
Load
max. 40 mA / channel
Signal level mA
at 20 mA
Signal level H>
H > 2.5 VDC
Signal level L<
L < 0.5 VDC
Output frequency
max. 200 kHz
Circuit protection
no
Light reserve warning
yes
Power supply VDC
4.75 - 5.5 VDC
Current consumption
typ. 70 mA
Signal shape
square-wave
Output circuit
TTL, RS422 comp., inverted
Channels
AB, ABN, and inverted signals
Output
push-pull
Load
max. 40 mA / channel
Signal level mA
at 20 mA
Signal level H>
H > 2.5 VDC
Signal level L<
L < 0.5 VDC
Output frequency
max. 200 kHz
Circuit protection
no
Light reserve warning
no
Power supply VDC
10 - 30 VDC
Current consumption
typ. 70 mA
Signal shape
square-wave
Output circuit
HTL
Channels
AB, ABN
Output
push-pull
Load
max. 40 mA / channel
Signal level mA
at 20 mA
Signal level H>
H > Vcc -2.5 VDC
Signal level L<
L < 2.5 VDC
Output frequency
max. 200 kHz
Circuit protection
yes
Light reserve warning
yes
Power supply VDC
10 - 30 VDC
Current consumption
typ. 70 mA
Signal shape
square-wave
Output circuit
HTL
Channels
AB, ABN
Output
push-pull
Load
max. 40 mA / channel
Signal level mA
at 20 mA
Signal level H>
H > Vcc -2.5 VDC
Signal level L<
L < 2.5 VDC
Output frequency
max. 200 kHz
Circuit protection
yes
Light reserve warning
no
Power supply VDC
10 - 30 VDC
Current consumption
typ. 70 mA
Signal shape
square-wave
Output circuit
HTL inverted
Channels
AB, ABN, and inverted signals
Output
push-pull
Load
max. 40 mA / channel
Signal level mA
at 20 mA
Signal level H>
H > Vcc -2.5 VDC
Signal level L<
L < 2.5 VDC
Output frequency
max. 200 kHz
Circuit protection
yes
Light reserve warning
yes
Power supply VDC
10 - 30 VDC
Current consumption
typ. 70 mA
Signal shape
square-wave
Output circuit
HTL inverted
Channels
AB, ABN, and inverted signals
Output
push-pull
Load
max. 40 mA / channel
Signal level mA
at 20 mA
Signal level H>
H > Vcc -2.5 VDC
Signal level L<
L < 2.5 VDC
Output frequency
max. 200 kHz
Circuit protection
yes
Light reserve warning
no
Power supply VDC
10 - 30 VDC
Current consumption
typ. 70 mA
Signal shape
square-wave
Output circuit
TTL, RS422 comp., inverted
Channels
AB, ABN, and inverted signals
Output
push-pull
Load
max. 40 mA / channel
Signal level mA
at 20 mA
Signal level H>
H > 2.5 VDC
Signal level L<
L < 1.2 VDC
Output frequency
max. 200 kHz
Circuit protection
inverse-polarity protection only
Light reserve warning
yes
Power supply VDC
10 - 30 VDC
Current consumption
typ. 70 mA
Signal shape
square-wave
Output circuit
TTL, RS422 comp., inverted
Channels
AB, ABN, and inverted signals
Output
push-pull
Load
max. 40 mA / channel
Signal level mA
at 20 mA
Signal level H>
H > 2.5 VDC
Signal level L<
L < 1.2 VDC
Output frequency
max. 200 kHz
Circuit protection
inverse-polarity protection only
Light reserve warning
no
(higher frequency) 1200 up to 25000 PPR
Power supply VDC
4.75 - 5.5 VDC
Current consumption
typ. 100 mA
Signal shape
square-wave
Output circuit
TTL
Channels
AB, ABN
Output
push-pull
Load
max. 40 mA / channel
Signal level mA
at 20 mA
Signal level H>
H > 2.5 VDC
Signal level L<
L < 0.5 VDC
Output frequency
max. 2 MHz
Circuit protection
no
Light reserve warning
no
Power supply VDC
4.75 - 5.5 VDC
Current consumption
typ. 100 mA
Signal shape
square-wave
Output circuit
TTL, RS422 comp., inverted
Channels
AB, ABN, and inverted signals
Output
push-pull
Load
max. 40 mA / channel
Signal level mA
at 20 mA
Signal level H>
H > 2.5 VDC
Signal level L<
L < 0.5 VDC
Output frequency
max. 2 MHz
Circuit protection
no
Light reserve warning
no
Power supply VDC
10 - 30 VDC
Current consumption
typ. 100 mA
Signal shape
square-wave
Output circuit
HTL
Channels
ABN
Output
push-pull
Load
max. 40 mA / channel
Signal level mA
at 20 mA
Signal level H>
H > Vcc -2.5 VDC
Signal level L<
L < 2.5 VDC
Output frequency
max. 600 kHz
Circuit protection
yes
Light reserve warning
no
Power supply VDC
10 - 30 VDC
Current consumption
typ. 100 mA
Signal shape
square-wave
Output circuit
HTL inverted
Channels
AB, ABN, and inverted signals
Output
push-pull
Load
max. 40 mA / channel
Signal level mA
at 20 mA
Signal level H>
H > Vcc -2.5 VDC
Signal level L<
L < 2.5 VDC
Output frequency
max. 600 kHz
Circuit protection
yes
Light reserve warning
no
Power supply VDC
10 - 30 VDC
Current consumption
typ. 100 mA
Signal shape
square-wave
Output circuit
TTL, RS422 comp., inverted
Channels
AB, ABN, and inverted signals
Output
push-pull
Load
max. 40 mA / channel
Signal level mA
at 20 mA
Signal level H>
H > 2.5 VDC
Signal level L<
L < 1.2 VDC
Output frequency
max. 2 MHz
Circuit protection
inverse-polarity protection only
Light reserve warning
no
1024, 2048 PPR
Power supply VDC
4.75 - 5.5 VDC
Current consumption
typ. 100 mA without load
Signal shape
sinus
Output circuit
1 Vpp sin/cos
Channels
AB
Output
Sinus, Cosinus
Load
@ 1 Vpp sin/cos: min. 120 Ohm
Signal level
1 Vpp +/- 25 %
Output frequency
max. 100 kHz
Circuit protection
no
Cabel lenght max.
max. 150 m at <260 pF/m
Light reserve warning
no
The encoder WDGI 115T can be supplied in a full IP67 version.
Max. RPM: 3500 rpm
Permitted Shaft-Loading, axial:80 N
Permitted Shaft-Loading, radial:110 N
Max. PPR: 25000 ppr
Starting-torque:approx. 4 Ncm at ambient temperature
The encoder WDGI 115T with the output circuit types F24, G24, H24, I24, P24, R24, F05, G05, H05, I05, P05, R05, 245, 524, 645 is also available with the extended temperature range -40 °C up to +85 °C [-40 °F up to +185 °F] (measured at the flange).

The WDGI 115T shaft encoder is also optionally available with a pressure equalising membrane. This prevents water from penetrating into the encoder housing in the case of high air humidity.
The IP67 protection level, temperature range and salt spray resistance are maintained. Resistant to chemicals and solvents in accordance with DIN EN ISO 2812-1.

The encoder WDGI 115T can be supplied with more than 2 m cable. The maximum cable length depends on the supply voltage and the frequency; see 'General Technical Data'
Please extend the standard order code with a three figure number, specifying the cable length in decimetres.
Example: 5 m cable = 050
General technical Data and safety instructions incremental encoders
General technical Data and safety instructions incremental encoders WDG/WDGI

Flyer Drehgeber Encoder WDGI
WDGI encoder - the new incremental industry standard

  • Die-cast aluminium housing, powder coated
  • Maximum bearing loads of up to 500 N, axial / radial
  • Self-adhesive membrane
  • High output frequency 600 kHz / 2 MHz
  • Extended operating temperature -40 °C to +85 °C

Kurzkatalog Drehgeber - Short catalogue encoders
Short-Catalogue Encoders and systems

  • Incremental and absolute encoders
  • Digital shaft copying
  • Made in Germany
  • Motorfeedback
  • Position Measurement Systems

Delivery times and service
Delivery times and service

of Wachendorff Automation GmbH & Co. KG

Assembly instructions shaft encoders
Assembly instructions shaft encoders WDG/WDGI

Whitepaper optisch und magnetisch Inkremental
Whitepaper


Comparison of optical and magnetic incremental encoders

CE Konformitätserklärungen WDG / WDGI
EC declaration of conformity incremental encoder WDG / WDGI

for Wachendorff Automation GmbH & Co. KG.

UKCA-Declaration of conformity WDG/WDGI
UKCA declaration of conformity incremental encoder WDG / WDGI

for Wachendorff Automation GmbH & Co. KG.

UL Certificates for Wachendorff Automation Products 2014-03-28
UL Certificates

for Wachendorff Automation products.

REACH regulation
REACH- and RoHS regulation of the EU

Information

ISO Zertifikat DIN EN 9001:2015
ISO Certificate DIN EN 9001:2015

KI467 Drehgeber Kabeldose
KI-4-67

Female connector KI-4-67:
Suitable for encoder with sensor connector outlet SB4 and SC4, 4 pin, IP67

Ready-made shielded connection cable with female cable connector straight,
shield connected.

KIA467 Drehgeber Kabeldose
KIA-4-67

Female connector KIA-4-67:
Suitable for encoder with sensor connector outlet SB4 and SC4, 4 pin, IP67

Ready-made shielded connection cable with female cable connector angular,
shield connected.

KI567 Drehgeber Kabeldose
KI-5-67

Female connector KI-5-67:
Suitable for encoder with sensor connector outlet SB5 and SC5, 5 pin, IP67

Ready-made shielded connection cable with female cable connector straight,
shield connected.

KIA567 Drehgeber Kabeldose
KIA-5-67

Female connector KIA-5-67:
Suitable for encoder with sensor connector outlet SB5 and SC5, 5 pin, IP67

Ready-made shielded connection cable with female cable connector angular,
shield connected.

KD540 Drehgeber Kabeldose
KD-5-40

Female connector KD-5-40:
Suitable for encoder with connector outlet SI/SH, 5 pin, IP40

Straight female connector or
straight connector with ready made cable.
With female thread M16 x 0.75.

KD567 Kabeldose Drehgeber
KD-5-67

Female connector KD-5-67:
Suitable for encoder with connector outlet SI/SH, 5 pin, IP67

Straight female connector or
straight connector with ready made cable.
With female thread M16 x 0.75.

KDA667 Drehgeber Kabeldose
KDA-6-67

Female connector KDA-6-67:
Suitable for encoder with connector outlet SI/SH, 6 pin, IP67

Angular female connector or
angular connector with ready made cable.

KD740 Drehgeber Kabeldose
KD-7-40

Female connector KD-7-40:
Suitable for encoder with connector outlet S2/S3,, 7 pin, IP40

Straight female connector or
straight connector with ready made cable.
With female thread M16 x 0.75.

KDA740 Drehgeber Kabeldose
KDA-7-40

Female connector KDA-7-40:
Suitable for encoder with connector outlet S2/S3, 7 pin, IP40

Angular female connector or
angular connector with ready made cable.
With female thread M16 x 0.75.

KD767 Drehgeber Kabeldose
KD-7-67

Female connector KD-7-67:
Suitable for encoder with connector outlet S2/S3, 7 pin, IP67

Straight female connector or
straight connector with ready made cable.
With female thread M16 x 0.75.

KDA767 Drehgeber Kabeldose
KDA-7-67

Female connector KDA-7-67:
Suitable for encoder with connector outlet S2/S3, 7 pin, IP67

Angular female connector or
angular connector with ready made cable.
With female thread M16 x 0.75.

KI867 Drehgeber Kabeldose
KI-8-67

Female connector KI-8-67:
Suitable for encoder with sensor connector outlet SB8 and SC8, 8 pin, IP67

Ready-made shielded connection cable with female cable connector straight,
shield connected.

KIA867 Drehgeber Kabeldose
KIA-8-67

Female connector KIA-8-67:
Suitable for encoder with sensor connector outlet SB8 and SC8, 8 pin, IP67

Ready-made shielded connection cable with female cable connector angular,
shield connected.

KD840 Drehgeber Kabeldose
KD-8-40

Female connector KD-8-40:
Suitable for encoder with connector outlet SI/SH, 8 pin, IP40

Straight female connector or
straight female connector with ready made cable.

KD867 Drehgeber Kabeldose
KD-8-67

Female connector KD-8-67:
Suitable for encoder with connector outlet SI/SH, 8 pin, IP67

Straight female connector or
straight female connector with ready made cable.

Drehgeber KDA867
KDA-8-67

Female connector KDA-8-67:
Suitable for encoder with connector outlet SI/SH, 8 pin, IP67

Angular female connector or
angular connector with ready made cable.
With female thread M16 x 0.75.

Drehgeber KDA867S
KDA-8-67-S

Female connector KDA-8-67-S:
Suitable for encoder with connector outlet SI/SH, 8 pin, IP67

Angular female connector, shieldable or
angular connector with ready made cable, shield connected.

KI1267 Drehgeber Kabeldose
KI-12-67

Female connector KI-12-67:
Suitable for encoder with sensor connector outlet SB12 and SC12, 12 pin, IP67

Ready-made shielded connection cable with female cable connector straight,
shield connected.

KIA1267 Drehgeber Kabeldose
KIA-12-67

Female connector KIA-12-67:
Suitable for encoder with sensor connector outlet SB12 and SC12, 12 pin, IP67

Ready-made shielded connection cable with female cable connector angular,
shield connected.

KDSH1267 Drehgeber Kabeldose
KD-SH12-67

Female connector KD-SH12-67:
Suitable for encoder with connector outlet SI/SH, 12 pin, IP67

Straight female connector or
straight connector with ready made cable.

KD1267 Drehgeber Kabeldose
KD-12-67

Female connector KD-12-67:
Suitable for encoder with connector outlet S4/S5, S4R/S5R, 12 pin, IP67

Straight female connector or
straight connector with ready made cable.
clockwise or anti-clockwise.

external link STEP-file

KDA1267 Drehgeber Kabeldose
KDA-12-67

Female connector KDA-12-67:
Suitable for encoder with connector outlet S4/S5, S4R/S5R, 12 pin, IP67

Angular female connector or
angular connector with ready made cable.
Clockwise or anti-clockwise.
Insert any mountable.

KD84015S DIZ Drehgeber Kabeldose
KD-8-40-15-S-DIZ

Female connector KD-8-40-15-S-DIZ:
For frequency inverters: Emotron

Suitable for encoder with connector outlet SI8 and SH8, 8 pin, IP40.
Connector (Sub-D 15 pin, 2 rows).
Ready-made shielded connection cable with female cable connector straight and Sub-D connector.
Female connector/ housing / connector housing electrically connected.

KD84015S RST Drehgeber Kabeldose
KD-8-40-15-S-RST

Female connector KD-8-40-15-S-RST:
For frequency inverters: RST

Suitable for encoder with connector outlet SI8 and SH8, 8 pin, IP40.
Connector (Sub-D 15 pin, 2 rows).
Ready-made shielded connection cable with female cable connector straight and Sub-D connector.
Female connector/ housing / connector housing electrically connected.

KD84015S SDR Drehgeber Kabeldose
KD-8-40-15-S-SDR

Female connector KD-8-40-15-S-SDR:
For controller: Schindler MX

Suitable for encoder with connector outlet SI8 and SH8, 8 pin, IP40.
Connector (Sub-D 15 pin, 2 rows).
Ready-made shielded connection cable with female cable connector straight and Sub-D connector
Female connector/ housing / connector housing electrically connected.

KD84015S CTF Drehgeber Kabeldose
KD-8-40-15-S-CTF

Female connector KD-8-40-15-S-CTF:
For frequency inverters: Control Techniques

Suitable for encoder with connector outlet SI8 and SH8, 8 pin, IP40.
Connector (Sub-D 15 pin, 3 rows).
Ready-made shielded connection cable with female cable connector straight and Sub-D connector
Female connector/ housing / connector housing electrically connected.

KD84015S KEB Drehgeber Kabeldose
KD-8-40-15-S-KEB

Female connector KD-8-40-15-S-KEB:
For frequency inverters: KEB

Suitable for encoder with connector outlet SI8 and SH8, 8 pin, IP40.
connector (Sub-D 15 pin, 3 rows).
Ready-made shielded connection cable with female cable connector straight and Sub-D connector
Female connector/ housing / connector housing electrically connected.

KD84015S LOH Drehgeber Kabeldose
KD-8-40-15-S-LOH

Female connector KD-8-40-15-S-LOH:
For frequency inverters: Flender Loher, type Dynavert L

Suitable for encoder with connector outlet SI8 and SH8, 8 pin, IP40.
connector (Sub-D 15 pin, 3 rows).
Ready-made shielded connection cable with female cable connector straight and Sub-D connector
Female connector/ housing / connector housing electrically connected.

KD84015S LIF Drehgeber Kabeldose
KD-8-40-15-S-LIF

Female connector KD-8-40-15-S-LIF:
For frequency inverters: Liftequip

Suitable for encoder with connector outlet SI8 and SH8, 8 pin, IP40.
Connector (Sub-D 9 pin, 2 rows).
Ready-made shielded connection cable with female cable connector straight and Sub-D connector.
Female connector/ housing / connector housing electrically connected.

KD84015S ZIL Drehgeber Kabeldose
KD-8-40-15-S-ZIL

Female connector KD-8-40-15-S-ZIL:
For frequency inverters: Ziehl-Abegg

Suitable for encoder with connector outlet SI8 and SH8, 8 pin, IP40.
connector (Sub-D 9 pin, 2 rows).
Ready-made shielded connection cable with female cable connector straight and Sub-D connector.
Female connector/ housing / connector housing electrically connected.

ST27 Kupplung Drehgeber
ST27

Jointed coupling ST27

for encoder with shaft Ø 6 mm or 10 mm

PK24 Kupplung Drehgeber
PK24

Slit coupling PK24

for encoder with shaft Ø 6 mm, 8 mm or 10 mm.

FSK22 Kupplung Drehgeber
FSK22

Spring disc coupling FSK22

for encoder with shaft Ø 6 mm, 10 mm or 12 mm.

WK24 Kupplung Drehgeber
WK24

Helical coupling WK24

for encoder with shaft Ø 6 mm, 8 mm, 10 mm or 12 mm.

external link STEP-Download WK240610

WK32 Kupplung Drehgeber
WK32

Helical coupling WK32

for encoder with shaft Ø 6 mm or 10 mm.

BK29 Kupplung Drehgeber
BK29

Bellows coupling BK29

for encoder with shaft Ø 6 mm, 8 mm, 10 mm or 12 mm*.
Max. offset of shafts radial: ± 0,25 mm or ± 0,30 mm*
Torsion spring stiffness: 150 Nm/rad or 130 Nm/rad*

FB29B Kupplung Drehgeber
FB29B

Bellows coupling FB29B

for encoder with shaft Ø 4 mm, 6 mm, 8 mm, 10 mm or 12 mm.

DSK29 Kupplung Drehgeber
DSK29

Double loop coupling DSK29

for encoder with shaft Ø 6 mm, 8 mm or 10 mm.
No moving parts, thermally and electrically insulating, smooth running, maintenance-free.
Good resistance to
Gasoline, oil, benzene, toluene, aromatic and non aromatic hydrocarbons, alcohols, glycols, solvents and many chemicals.

external link STEP Download DSK290606

external link STEP Download DSK290610

DSK38 Kupplung Drehgeber
DSK38

Double loop coupling DSK38

for encoder with shaft Ø 6 mm, 8 mm, 10 mm or 12 mm.
No moving parts, thermally and electrically insulating, smooth running, maintenance-free.
Good resistance to
Gasoline, oil, benzene, toluene, aromatic and non aromatic hydrocarbons, alcohols, glycols, solvents and many chemicals.

external link STEP-Datei DSK380606

DSK48 Kupplung Drehgeber
DSK48

Double loop coupling DSK48

for encoder with shaft Ø 10 mm, 12 mm or 14 mm.
No moving parts, thermally and electrically insulating, smooth running, maintenance-free.
Good resistance to
Gasoline, oil, benzene, toluene, aromatic and non aromatic hydrocarbons, alcohols, glycols, solvents and many chemicals.

external link STEP download DSK481012

distributors
For further information please contact our local distributor.
Here you find a list of our distributors worldwide
You want to get an offer or want a recall. Request
