KD-8-40-15-S-CTF

Female connector KD-8-40-15-S-CTF:
For frequency inverters: Control Techniques

Suitable for encoder with connector outlet SI8 and SH8, 8 pin, IP40.
Connector (Sub-D 15 pin, 3 rows).
Ready-made shielded connection cable with female cable connector straight and Sub-D connector
Female connector/ housing / connector housing electrically connected.

KD84015S CTF Drehgeber Kabeldose
Construction
straight with ready made cable
No. of contacts
8-pin and 15-pin
Termination by
Soldering
Finish of contact
8-pin: silver; 15-pin: gold
Connection
8 pin: screw connection; 15 pin: locking screws
Gland bushing
Cable clamp
Protection
8 pin: only when mated max. IP40; 15 pin: only when mated max. IP20
Advice

Frequency inverters:
Control Techniques type: Unidrive SP

Order number(s)
KD-8-40-15-S-CTF
For frequency inverter Control Techniques
All dimensional specifications in mm

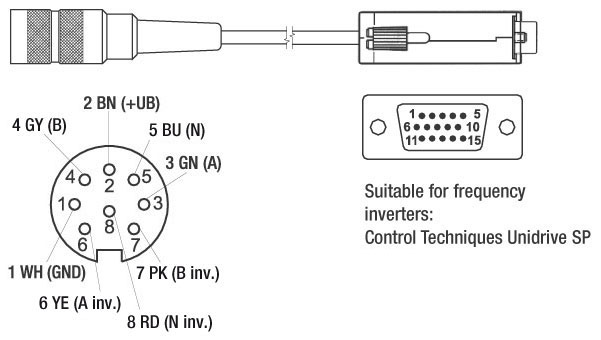

Z KD84015S-CTF female connector encoder
