WDGI 58E

Hollow Bore (blind) Encoder incremental, magnetic,
Resolution: up to 1024 ppr,

WDGI 58E: Ø 58 mm
Bore size Ø 12 mm;
Ø 6, 6.35 (1/4''), 7, 8, 9.525 (3/8''), 10 mm with adapter sleeve;
Protection rating: IP67, shaft sealed to IP65,
Signal shape: square-wave

Data sheetGeneral technical data incremental encoders (PDF 838 kB)
Drehgeber WDGI58E
Highlights
  • Rugged industrial standard end hollow shaft encoder
  • Housing cap die cast aluminum,
    with particularly eco-friendly powder coating
  • Maximum mechanical and electrical safety
  • High protection accordingt IP67, shaft sealed to IP65, high noise immunity
  • Hollow bore (blind)
  • Optional: -40 °C up to +85 °C,
                   Pressure equalising membrane
Product details
Flange
hollow shaft (blind-bored)
Pulses per revolution PPR
up to 1024 PPR
Housing
Ø 58 mm
die cast aluminum, powder coated
Shaft
Ø 6 mm
Advice: with adapter sleeve
Shaft length: L: 16 mm
Insertion depth min.: 11 mm
Insertion depth max.: 19 mm
Max. Permissible shaft loading radial: 80 N
Max. Permissible shaft loading axial: 50 N
Ø 6.35 mm, Ø 1/4"
Advice: with adapter sleeve
Shaft length: L: 16 mm
Insertion depth min.: 11 mm
Insertion depth max.: 19 mm
Max. Permissible shaft loading radial: 80 N
Max. Permissible shaft loading axial: 50 N
Ø 7 mm
Advice: with adapter sleeve
Shaft length: L: 16 mm
Insertion depth min.: 11 mm
Insertion depth max.: 19 mm
Max. Permissible shaft loading radial: 80 N
Max. Permissible shaft loading axial: 50 N
Ø 8 mm
Advice: with adapter sleeve
Shaft length: L: 16 mm
Insertion depth min.: 11 mm
Insertion depth max.: 19 mm
Max. Permissible shaft loading radial: 80 N
Max. Permissible shaft loading axial: 50 N
Ø 9.525 mm, Ø 3/8"
Advice: with adapter sleeve
Shaft length: L: 16 mm
Insertion depth min.: 11 mm
Insertion depth max.: 19 mm
Max. Permissible shaft loading radial: 80 N
Max. Permissible shaft loading axial: 50 N
Ø 10 mm
Advice: with adapter sleeve
Shaft length: L: 16 mm
Insertion depth min.: 11 mm
Insertion depth max.: 19 mm
Max. Permissible shaft loading radial: 80 N
Max. Permissible shaft loading axial: 50 N
Ø 12 mm
Shaft length: L: 16 mm
Insertion depth min.: 11 mm
Insertion depth max.: 19 mm
Max. Permissible shaft loading radial: 80 N
Max. Permissible shaft loading axial: 50 N
Max. operating speed
6000 rpm
Output circuit
HTL (TTL at 5 VDC)
HTL, inv. (TTL/RS422 comp. at 5 VDC)
Output frequency
≤ 1024 ppr, max. 200 kHz
Power supply
5 VDC up to 30 VDC
Current consumption: typ. 40 mA

Environmental data

ESD (DIN EN 61000-4-2):

8 kV

Burst (DIN EN 61000-4-4):

2 kV

includes EMC:

DIN EN 61000-6-2
DIN EN 61000-6-3

Vibration:
(DIN EN 60068-2-6)

50 m/s2 (10 Hz up to 2000 Hz)

Shock:
(DIN EN 60068-2-27)

1000 m/s2 (6 ms)

Design:

according DIN VDE 0160

Duty information

Customs tariff number:

90318020

Country of origin:

Germany

Operating temperature
Connector: -40 °C up to +85 °C, cable: -20 °C up to +80 °C, (Option ACA: -40 °C up to +85 °C)
Protection class
Housing: IP65, IP67; shaft sealed: IP65
STEP viewer / STEP data:

Your desired STEP file is not listed:
Request STEP file here

DescriptionABN inv. poss.
K3radial, shield not connected●
L3radial, shield connected to encoder housing●
Assignments
 K3, L3K3, L3
CircuitN35M35
GNDWHWH
(+) VccBNBN
AGNGN
BYEYE
NGYGY
Light reserve warning--
A inv.-RD
B inv.-BK, (BU at ACA)
N inv.-VT
Shieldflexflex
STEP viewer / STEP data:

Your desired STEP file is not listed:
Request STEP file here

DescriptionABN inv. poss.
SH5radial, 5-pin, Connector connected to encoder housing-
SH6radial, 6-pin, Connector connected to encoder housing-
SH8radial, 8-pin, Connector connected to encoder housing●
SH12radial, 12-pin, Connector connected to encoder housing●
Assignments
SH5SH6SH8SH8SH12SH12
 5-pin6-pin8-pin8-pin12-pin12-pin
connector drawing
CircuitN35N35N35M35N35M35
GND1611K, LK, L
(+) Vcc2122M, BM, B
A3233EE
B4444HH
N5355CC
Light reserve warning------
A inv.---6-F
B inv.---7-A
N inv.---8-D
n. c.-56, 7, 8-A, D, F, G, JG, J
Shield------
STEP viewer / STEP data:

Your desired STEP file is not listed:
Request STEP file here

DescriptionABN inv. poss.

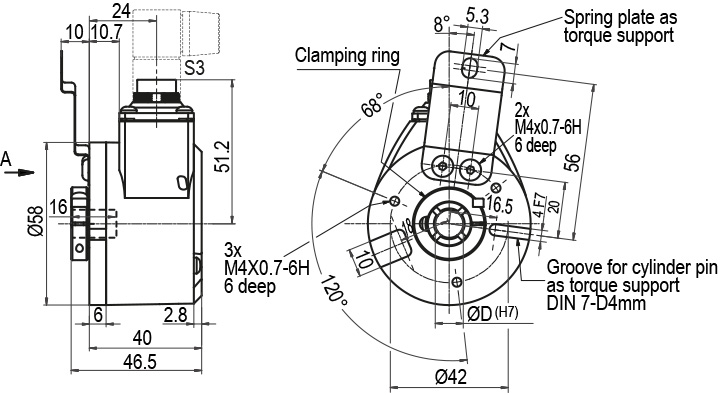

S3radial, 7-pin, Connector connected to encoder housing-
Assignments
S3
 7-pin
connector drawing
CircuitN35
GND1
(+) Vcc2
A3
B4
N5
Light reserve warning-
A inv.-
B inv.-
N inv.-
n. c.6, 7
Shield-
STEP viewer / STEP data:

Your desired STEP file is not listed:
Request STEP file here

DescriptionABN inv. poss.
S5radial, 12-pin, Connector connected to encoder housing●
Assignments
S5S5
 12-pin12-pin
connector drawing
CircuitN35M35
GND1010
(+) Vcc1212
A55
B88
N33
Light reserve warning--
A inv.-6
B inv.-1
N inv.-4
n. c.1, 2, 4, 6, 7, 9, 112, 7, 9, 11
Shield--
STEP viewer / STEP data:

Your desired STEP file is not listed:
Request STEP file here

DescriptionABN inv. poss.
S5Rradial, 12-pin, Connector connected to encoder housing●
Assignments
S5RS5R
 12-pin12-pin
connector drawing
CircuitN35M35
GND1010
(+) Vcc1212
A55
B88
N33
Light reserve warning--
A inv.-6
B inv.-1
N inv.-4
n. c.1, 2, 4, 6, 7, 9, 112, 7, 9, 11
Shield--
STEP viewer / STEP data:

Your desired STEP file is not listed:
Request STEP file here

DescriptionABN inv. poss.
SC4radial, 4-pin, Connector connected to encoder housing-
SC5radial, 5-pin, Connector connected to encoder housing-
SC8radial, 8-pin, Connector connected to encoder housing●
SC12radial, 12-pin, Connector connected to encoder housing●
Assignments
SC4SC5SC8SC8SC12SC12
 4-pin5-pin8-pin8-pin12-pin12-pin
connector drawing
CircuitN35N35N35M35N35M35
GND331133
(+) Vcc112211
A243344
B424466
N-55588
Light reserve warning------
A inv.---6-9
B inv.---7-7
N inv.---8-10
n. c.--6, 7, 8-2, 5, 7, 9, 10, 11, 122, 5, 11, 12
Shield------
up to 1024 PPR
Power supply VDC
5 - 30 VDC
Current consumption
typ. 40 mA
Signal shape
square-wave
Output circuit
HTL, inv. (TTL/RS422 comp. at 5 VDC)
Channels
AB, ABN, and inverted signals
Output
push-pull
Load
max. 40 mA / channel
Signal level mA
at 20 mA
Signal level H>
H > Vcc - 10 % Vcc
Signal level L<
L < 2.5 VDC
Output frequency
max. 200 kHz
Circuit protection
no
Light reserve warning
no
Power supply VDC
5 - 30 VDC
Current consumption
typ. 40 mA
Signal shape
square-wave
Output circuit
HTL (TTL at 5 VDC)
Channels
AB, ABN
Output
push-pull
Load
max. 40 mA / channel
Signal level mA
at 20 mA
Signal level H>
H > Vcc - 10 % Vcc
Signal level L<
L < 2.5 VDC
Output frequency
max. 200 kHz
Circuit protection
no
Light reserve warning
no
The encoder WDGI 58E with the output circuit types M35, N35 is also available with the extended temperature range -40 °C up to +85 °C [-40 °F up to +185 °F] (measured at the flange).

The WDGI 58E shaft encoder is also optionally available with a pressure equalising membrane. This prevents water from penetrating into the encoder housing in the case of high air humidity.
The IP67 protection level, temperature range and salt spray resistance are maintained. Resistant to chemicals and solvents in accordance with DIN EN ISO 2812-1.



The encoder WDGI 58E can be supplied with more than 2 m cable. The maximum cable length depends on the supply voltage and the frequency; see 'General Technical Data'
Please extend the standard order code with a three figure number, specifying the cable length in decimetres.
Example: 5 m cable = 050
