WDGN 58E

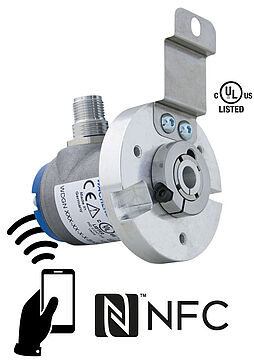

Shaft Encoder configurable via Smartphone (NFC), WDGN 58E,
incremental quadrature, magnetic,
Housing: Ø 58 mm

Hollow bore blind: Ø 12 mm, Ø 14, Ø 15 mm;
Ø 6, 8, 10 mm with adapter sleeve;
resolution up to 16384 ppr and HTL/TTL configurable via NFC,
Signal shape: square-wave.

Data sheetGeneral technical Data and safety instructions incremental encoders WDGN (PDF 778 kB)
NFC Drehgeber - encoder WDGN 58E radial
Highlights
  • Due to high quality electronics any number of pulses up to 16384 configurable via NFC
  • HTL/TTL configurable via NFC
  • Protection class IP67, at shaft input IP65
  • High output frequency up to 1 MHz
  • Reverse polarity protection and short-circuit protection at 4.75 VDC to 32 VDC
Product details
Flange
hollow shaft (blind-bored)
Pulses per revolution PPR
1 PPR up to 16384 PPR
Housing
Ø 58 mm
Stainless steel, NFC cover: Thermoplastic polyamide
Shaft
Ø 6 mm
Advice: with adapter sleeve
Shaft length: L: 12 mm
Insertion depth min.: 11 mm
Insertion depth max.: 15 mm
Max. Permissible shaft loading radial: 80 N
Max. Permissible shaft loading axial: 50 N
Ø 8 mm
Advice: with adapter sleeve
Shaft length: L: 12 mm
Insertion depth min.: 11 mm
Insertion depth max.: 15 mm
Max. Permissible shaft loading radial: 80 N
Max. Permissible shaft loading axial: 50 N
Ø 10 mm
Advice: with adapter sleeve
Shaft length: L: 12 mm
Insertion depth min.: 11 mm
Insertion depth max.: 15 mm
Max. Permissible shaft loading radial: 80 N
Max. Permissible shaft loading axial: 50 N
Ø 12 mm
Shaft length: L: 12 mm
Insertion depth min.: 11 mm
Insertion depth max.: 15 mm
Max. Permissible shaft loading radial: 80 N
Max. Permissible shaft loading axial: 50 N
Ø 14 mm
Shaft length: L: 12 mm
Insertion depth min.: 11 mm
Insertion depth max.: 15 mm
Max. Permissible shaft loading radial: 80 N
Max. Permissible shaft loading axial: 50 N
Ø 15 mm
Shaft length: L: 12 mm
Insertion depth min.: 11 mm
Insertion depth max.: 15 mm
Max. Permissible shaft loading radial: 80 N
Max. Permissible shaft loading axial: 50 N
Max. operating speed
6000 rpm
Output circuit
HTL
HTL, inv.
TTL
TTL, RS422 compatible, inv.
Output frequency
HTL up to 16384 ppr, max. 600 kHz
TTL up to 16384 ppr, max. 1 MHz
Power supply
4,75 VDC up to 32 VDC
Current consumption: typ. 80 mA

Nullimpuls setzen:

Setzen: SET = +UB für 2 s
Deaktiviert: SET = GND

Configurable via NFC:

BASIC: (BAS)

Channels:

ABN and inverted

HTL / TTL

freely selectable

Pulses / revolution:

1 ppr up to 16384 ppr freely selectable

Advanced (ADV):

Channels:

4 channels configurable + inv. signals (ABN possible)

HTL / TTL:

freely selectable

Pulses / revolution:

1 ppr up to 16384 ppr freely selectable

Number of pulses for each channel:

individually selectable

Set zero pulse:

yes

Pulse width and position:

Width and position adjustable

Operating temperature
Connector: -40 °C up to +85 °C, cable: -20 °C up to +80 °C
Protection class
Housing: IP65, IP67; shaft sealed: IP65

Your desired STEP file is not listed:
Request STEP file here

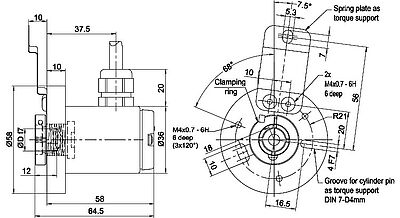

DescriptionABN inv. poss.
L3radial, shield connected to encoder housing
Assignments
 L3
CircuitBAS
GNDWH
(+) VccBN
AGN
BYE
NGY
A inv.RD
B inv.BK
N inv.VT
Shieldflex

Your desired STEP file is not listed:
Request STEP file here

DescriptionABN inv. poss.
L3radial, shield connected to encoder housing
Assignments
 L3
CircuitADV
GNDWH
(+) VccBN
CH1GN
CH2YE
CH3GY
CH4GYPK
SETPK
CH1 inv.RD
CH2 inv.BK
CH3 inv.VT
CH4 inv.RDBU
Shieldflex

Your desired STEP file is not listed:
Request STEP file here

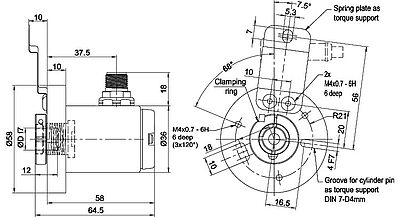

DescriptionABN inv. poss.
SC8radial, 8-pin, Connector connected to encoder housing
Assignments
SC8
 8-pin
connector drawing
CircuitBAS
GND1
(+) Vcc2
A3
B4
N5
A inv.6
B inv.7
N inv.8

Your desired STEP file is not listed:
Request STEP file here

DescriptionABN inv. poss.
SC12radial, 12-pin, Connector connected to encoder housing
Assignments
SC12
 12-pin
connector drawing
CircuitADV
GND3
(+) Vcc1
CH14
CH26
CH38
CH411
SET5
CH1 inv.9
CH2 inv.7
CH3 inv.10
CH4 inv.12
n. c.2
configurable 1-16384 PPR
Power supply VDC
4.75 - 32 VDC
Current consumption
typ. 80 mA
Signal shape
square-wave
Output circuit
configurable HTL, TTL (A,B,N + inv.)
Channels
AB, ABN, and inverted signals
Output
push-pull
Load
max. 40 mA / channel
Signal level mA
at 20 mA
Signal level H>
HTL: H > UB - 2.5 VDC; TTL: H > 2.5 VDC
Signal level L<
L < 2.5 VDC
Output frequency
HTL: max. 600 kHZ; TTL: max. 1 MHz
Circuit protection
no
Light reserve warning
no
Power supply VDC
4.75 - 32 VDC
Current consumption
typ. 80 mA
Signal shape
square-wave
Output circuit
configurable HTL, TTL; 4 channels+inv.
Channels
CH1, CH2, CH3, CH4, and inverted signals, (ABN poss.)
Output
push-pull
Load
max. 40 mA / channel
Signal level mA
at 20 mA
Signal level H>
HTL: H > UB - 2.5 VDC; TTL: H > 2.5 VDC
Signal level L<
L < 2.5 VDC
Output frequency
HTL: max. 600 kHZ; TTL: max. 1 MHz
Circuit protection
no
Light reserve warning
no
The encoder WDGN 58E can be supplied with more than 2 m cable. The maximum cable length depends on the supply voltage and the frequency; see 'General Technical Data'
Please extend the standard order code with a three figure number, specifying the cable length in decimetres.
Example: 5 m cable = 050
General technical Data and safety instructions incremental encoders WDGN
General technical Data and safety instructions incremental encoders WDGN
