Absolute hollow bore (blind) encoder, magnetic, RS485 WDGA 36E

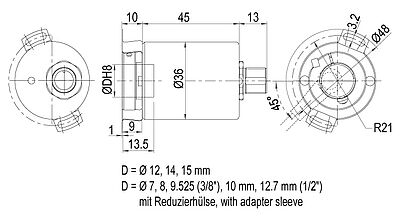

Housing: Ø 36 mm
16/32-bit Single-turn/Multi-turn;
Hollow bore blind: Ø 12 mm, Ø 14 mm, Ø 15 mm,
Ø 8 mm, 10 mm with adapter sleeve;
CRC checksum
- EnDra® multiturn technology:
maintenance-free and environmentally friendly - Compact industrial model
- Interface: RS485
- Preset input
- Direction of counting changeable
- Status indicator LED
- EMC: EN 61000-6-2, EN 61000-6-3
up to 65,536 steps/360° (16 bit)
Multi-turn Resolutionup to 32 bit.
Advice: with adapter sleeve
Insertion depth min.: 10 mm
Insertion depth max.: 14.5 mm
Max. Permissible shaft loading radial: 80 N
Max. Permissible shaft loading axial: 50 N
Advice: with adapter sleeve
Insertion depth min.: 10 mm
Insertion depth max.: 14.5 mm
Max. Permissible shaft loading radial: 80 N
Max. Permissible shaft loading axial: 50 N
Insertion depth min.: 10 mm
Insertion depth max.: 14.5 mm
Max. Permissible shaft loading radial: 80 N
Max. Permissible shaft loading axial: 50 N
Insertion depth min.: 10 mm
Insertion depth max.: 14.5 mm
Max. Permissible shaft loading radial: 80 N
Max. Permissible shaft loading axial: 50 N
Insertion depth min.: 10 mm
Insertion depth max.: 14.5 mm
Max. Permissible shaft loading radial: 80 N
Max. Permissible shaft loading axial: 50 N
Current consumption: typ. 50 mA
Power consumption: max. 0.5 W
Current consumption: typ. 80 mA
Power consumption: max. 0.44 W
| Description | |
|---|---|
| L2 | axial, shield connected to encoder housing |
| S- (GND) | WH |
| S+ (DCin) | BN |
| A (DATA+) | GY |
| B (DATA-) | PK |
| PRESET | BU |
| DIR | RD |
| Shield | housing |
| Description | |
|---|---|
| L3 | radial, shield connected to encoder housing |
| S- (GND) | WH |
| S+ (DCin) | BN |
| A (DATA+) | GY |
| B (DATA-) | PK |
| PRESET | BU |
| DIR | RD |
| Shield | housing |
| Description | |
|---|---|
| K1 | radial, shield not connected |
| S- (GND) | WH |
| S+ (DCin) | BN |
| A (DATA+) | GY |
| B (DATA-) | PK |
| PRESET | BU |
| DIR | RD |
| Shield | housing n. c. |
| Description | |
|---|---|
| CB8 | axial, 8-pin, shield connected to encoder housing |
| Description | |
|---|---|
| CC8 | radial, 8-pin, shield connected to encoder housing |
