WDGDS10021

Torque support WDGDS10021

for hollow shaft encoder 36E with hollow shaft (blind) Ø 8 mm, Ø 10 mm, Ø 12 mm, Ø 14 mm, Ø 15 mm.

Drehmomentstütze Federblech WDGDS10021
Compensation
axial ±0.2 mm
radial ±0.1 mm
Material
Stainless springsteel
Fixing
Screws for fixing to the encoder are enclosed.
Screws for fixing to the machine are not supplied.
Order number(s)
WDGDS10021
Torque support
Customs information:
Customs tariff number:
90319000
Country of origin:
Germany

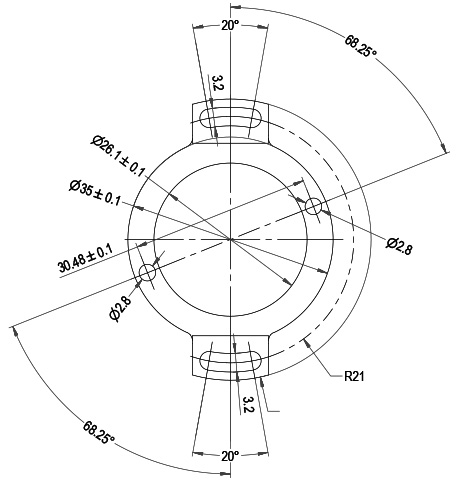

All dimensional specifications in mm
WDGDS10021 Federblech Drehmomentstütze 01

WDGDS10021 Federblech Drehmomentstütze 02
