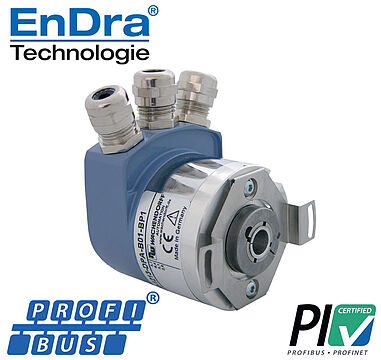

Absolute hollow bore (blind) encoder, magnetic,
PROFIBUS-DP WDGA 58E
Bus cover: connection clamps
or 3x M12 connector
hollow bore (blind);

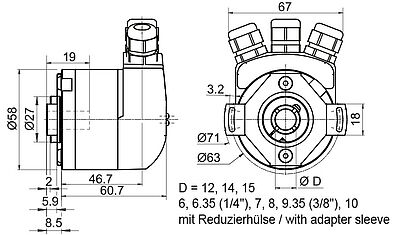

Housing: Ø 58 mm
14/39-bit Single-turn/Multi-turn;
Bore size: Ø 12 mm, Ø 14 mm, Ø 15 mm;
Ø 6, 6.35 (1/4''), 7, 8, 9.525 (3/8''), 10 mm with adapter sleeve;
Protocol: PROFIBUS-DPV2;
Device Profile: switchable, Class 3, 4;
Line-Driver: galvanic isolated
- EnDra®: maintenance-free and environmentally friendly
- PROFIBUS, Single-turn/Multi-turn
- Compact design with buscover
- Single-turn/Multi-turn (max. 14 bit/39 bit)
- Forward-looking technology with 32 Bit processor
- 2 colour-duo LED´s as indicator for operating condition
and bus status - High shaft load up to 80 N radial, 50 N axial
- Device Profile switchable, Class 3, 4
up to 16,384 steps/360° (14 bit)
Multi-turn Resolutionup to 39 bit
Advice: with adapter sleeve
Shaft length: L: 17 mm
Insertion depth min.: 10 mm
Insertion depth max.: 19 mm
Max. Permissible shaft loading radial: 80 N
Max. Permissible shaft loading axial: 50 N
Advice: with adapter sleeve
Shaft length: L: 17 mm, L: 0.669 in
Insertion depth min.: 10 mm, 0.394 in
Insertion depth max.: 19 mm, 0.748 in
Max. Permissible shaft loading radial: 80 N, 8.158 kp
Max. Permissible shaft loading axial: 50 N, 5.099 kp
Advice: with adapter sleeve
Shaft length: L: 17 mm
Insertion depth min.: 10 mm
Insertion depth max.: 19 mm
Max. Permissible shaft loading radial: 80 N
Max. Permissible shaft loading axial: 50 N
Advice: with adapter sleeve
Shaft length: L: 17 mm
Insertion depth min.: 10 mm
Insertion depth max.: 19 mm
Max. Permissible shaft loading radial: 80 N
Max. Permissible shaft loading axial: 50 N
Advice: with adapter sleeve
Shaft length: L: 17 mm, L: 0.669 in
Insertion depth min.: 10 mm, 0.394 in
Insertion depth max.: 19 mm, 0.748 in
Max. Permissible shaft loading radial: 80 N, 8.158 kp
Max. Permissible shaft loading axial: 50 N, 5.099 kp
Advice: with adapter sleeve
Shaft length: L: 17 mm
Insertion depth min.: 10 mm
Insertion depth max.: 19 mm
Max. Permissible shaft loading radial: 80 N
Max. Permissible shaft loading axial: 50 N
Shaft length: L: 17 mm
Insertion depth min.: 10 mm
Insertion depth max.: 19 mm
Max. Permissible shaft loading radial: 80 N
Max. Permissible shaft loading axial: 50 N
Shaft length: L: 17 mm
Insertion depth min.: 10 mm
Insertion depth max.: 19 mm
Max. Permissible shaft loading radial: 80 N
Max. Permissible shaft loading axial: 50 N
Shaft length: L: 17 mm
Insertion depth min.: 10 mm
Insertion depth max.: 19 mm
Max. Permissible shaft loading radial: 80 N
Max. Permissible shaft loading axial: 50 N
Current consumption: typ. 100 mA (24 VDC)
Power consumption: max. 2.5 W
Configuration software
Software download
- Compact design
- Very high shaft loading
- Can be connected flexibly
- Can be switched between class 3 and 4
Download (1.41 MB)
- Absolute encoders with flange Ø 36 mm / Ø 58 mm
- Single-/Multiturn (16/43)
- Ground-breaking technology 32 Bit processor
- Very high shaft loading, IP67
- EnDra® Multiturn technology: No gears, no battery
- QuattroMag® Singleturn technology: High precision +/- 0,0878°
Download (1.34 MB)
- Incremental and absolute encoders
- Digital shaft copying
- Made in Germany
- Motorfeedback
- Position Measurement Systems
Download (4.24 MB)
GSD file for Class4 encoder release V1.2 WDGA absolut with Profibus DP (up to DPV2).
By downloading and using software and apps
from this homepage, I agree to the GTC and
the supplementary software clause.
Download (4.79 KB)
Demo program (for S7 controllers) for Class4 encoder WDGA absolute with Profibus DP.
The demo program is just an example.
By downloading and using software and apps
from this homepage, I agree to the GTC and
the supplementary software clause.
Download (740 KB)
Declaration from the PROFIBUS-Nutzerorganisation for the WDGA PROFIBUS for Wachendorff Automation GmbH & Co. KG
Download (89 KB)
Shaft adapter WDGWA10M06
for thru-bore and hollow bore (blind) encoder Ø 10 mm
or couplings Ø 10 mm,
thread M6.
Shaft adapter WDGWA10M08
for thru-bore and hollow bore (blind) encoder Ø 10 mm
or couplings Ø 10 mm,
thread M8.
Shaft adapter WDGWA10M10
for thru-bore and hollow bore (blind) encoder Ø 10 mm
or couplings Ø 10 mm,
thread M10.
Shaft adapter WDGWA10M12
for thru-bore and hollow bore (blind) encoder Ø 10 mm
or couplings Ø 10 mm,
thread M12.
STEP file:
WDGWA10M12.stp
Shaft adapter WDGWA10M14
for thru-bore and hollow bore (blind) encoder Ø 10 mm
or couplings Ø 10 mm,
thread M14.
Shaft adapter WDGWA10M16
for thru-bore and hollow bore (blind) encoder Ø 10 mm
or couplings Ø 10 mm,
thread M16.
STEP file: WDGWA10M16.stp
Shaft adapter WDGWA10M20
for thru-bore and hollow bore (blind) encoder Ø 10 mm
or couplings Ø 10 mm,
thread M20.
Adapter sleeves for bore size Ø 12 mm
for thru-bore encoder WDGI 58H and
hollow bore (blind) encoder WDGI 58E, WDGA 58E.
