WDGA 58V CANopen

Absolute shaft encoder, magnetic, CANopen WDGA 58V
Especially for food and beverage industry
Acid- and alkaline resistance

High pressure / steam cleaning
Clamping flange;
Housing: Ø 58 mm

16/43-bit Single-turn/Multi-turn;
Shaft: Ø 10 mm;
Communication Profile according to CiA 301
Device Profile for encoder CiA 406 V3.2 class C2;
binary code

Data sheetGeneral technical data absolute encoders CANopen (PDF 632 kB)
Drehgeber WDGA58VCAN
Highlights
  • Resistance to salt mist acc. to (IEC 60068-2-11)
  • Protection rating IP67 all around and IP69k (high pressure and steam cleaning)
  • EnDra®: maintenance-free and environmentally friendly
  • Acid- and alkaline resistance
  • CANopen, Single-turn/Multi-turn
  • Communication Profile according to CiA 301
  • Device Profile for encoder CiA 406 V3.2 class C2
  • Single-turn/Multi-turn (16 bit/43 bit)
  • Forward-looking technology with 32 Bit processor
Product details
Flange
clamping flange
Housing
Ø 58 mm
stainless steel, V4A
Resolution
Single-turn Resolution

65,536 steps/360° (16 bit)

Multi-turn Resolution

up to 32 bit with high precision value up to 43 bit.

Shaft
Ø 10 mm
Shaft length: L: 18 mm
Max. Permissible shaft loading radial: 100 N
Max. Permissible shaft loading axial: 100 N
Max. operating speed
3600 rpm
Power supply
4,75 VDC up to 32 VDC
Current consumption: typ. 50 mA
Power consumption: max. 0.5 W
Operating temperature
-20 °C up to +80 °C
Storage temperature
-20 °C up to +80 °C
Protection class
IP67 all around and IP69K
Advice

Configuration software
 Software download

Manual WDGA CANopen
 Manual WDGA CANopen

STEP data:

Your desired STEP file is not listed:
Request STEP file here

Description

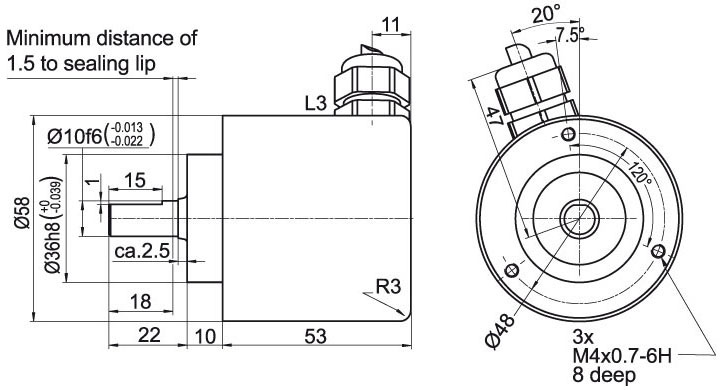

L3radial, shield connected to encoder housing
Assignments
(+) VccBN
GNDOG
CANHighGN
CANLowYE
CANGND shieldshield
General technical Data and safety instructions absolute encoders WDGA CANopen
General technical Data and safety instructions absolute encoders WDGA CANopen

Handout Absolute encoders WDGA
Handout Absolute encoders WDGA

  • Absolute encoders with flange Ø 36 mm / Ø 58 mm
  • Single-/Multiturn (16/43)
  • Ground-breaking technology 32 Bit processor
  • Very high shaft loading, IP67
  • EnDra® Multiturn technology: No gears, no battery
  • QuattroMag® Singleturn technology: High precision +/- 0,0878°

Short-Catalogue Encoders and systems
Short-Catalogue Encoders and systems

  • Incremental and absolute encoders
  • Digital shaft copying
  • Made in Germany
  • Motorfeedback
  • Position Measurement Systems

HALT Test
The HALT-Test

Web-processing industry
Web-processing industry

Quality assurance in the ongoing process

Delivery times and service
Delivery times and service

of Wachendorff Automation GmbH & Co. KG

Handbuch WDGA CANopen
Manual WDGA CANopen

Assembly instructions for WDGA absolute encoder CANopen
Assembly instructions for WDGA absolute encoder CANopen, CANopen LIFT

Technical Note deutsch
Technical Note WDGA CANopen

deutsch

Technical Note english
Technical Note WDGA CANopen

english

EDS File Singleturn
EDS file

EDS file for encoder absolute WDGA singleturn, CANopen.

EDS file for encoder absolute WDGA multiturn, CANopen
EDS file

EDS file for encoder absolute WDGA multiturn, CANopen

ECOLAB Certificate of the tested resistance of material
ECOLAB - Certificate of the tested resistance of material

against the detergent and desinfectants P3-topactive DES, P3-topax 19, P3-topax 56, P3-topax 66 and P3-topax 91, as well as demineralised water as zero value.

EC Konformitätserklärung Drehgeber : EC declaration of conformity encoder
EU declaration of conformity absolute encoder WDGA 2.0 CAN/SSI

for Wachendorff Automation GmbH & Co. KG.

UL Certificates for Wachendorff Automation Products 2014-03-28
UL Certificates

for Wachendorff Automation products.

REACH regulation
REACH- and RoHS regulation of the EU

Information

ISO Zertifikat DIN EN 9001:2015
ISO Certificate DIN EN 9001:2015

BGZ0000KIT-ZVK

Starter kit CANopen

for absolute encoder WDGA

CANUSBANALYZER Drehgeber Absolut CANopen
CANUSBANALYZER

PEAK CAN-USB-Analyzer

for absolute encoder WDGA

The encoder WDGA 58V CANopen is also available with fixed 120 Ohm terminating resistor.
