KDA-8-67-SSI

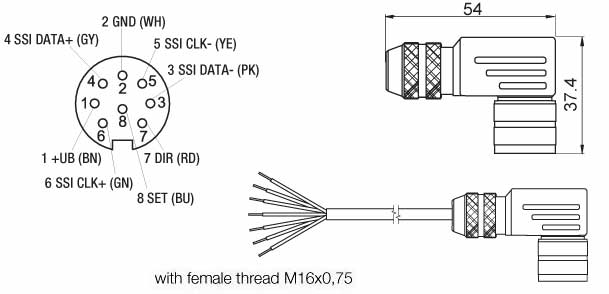

Female connector KDA-8-67-SSI:
Suitable for encoder with connector outlet CH8, 8 pin, IP67
Angular female connector or
angular connector with ready made cable.
Insert any mountable.
Housing material
Nickel-plated brass
Construction
angular or angular with ready made cable
No. of contacts
8-pin
Termination by
Soldering
Finish of contact
silver
Connection
Screw connection
Cable outlet
min. 4 mm, max. 8 mm
Gland bushing
Pinch ring
Protection
only when mated max. IP67
Order number(s)
KDA-8-67-SSI
Female connector, angular
KDA-8-67-XX-SSI
Female connector, angular, with ready made cable, shield connected
(XX = cable lenght in meters)
(XX = cable lenght in meters)
All dimensional specifications in mm
