WDGMSUZ

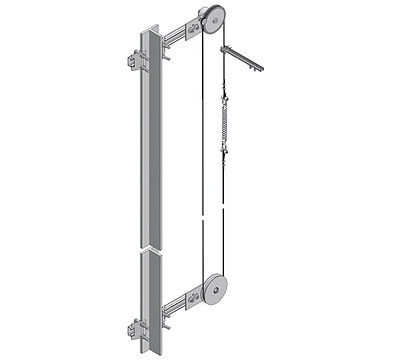

System - Circumferential belt measuring system Silent Move light WDGMSUZ
For heights up to 70 metres (230 ft)
Highlights
- Quiet and non-slip digital shaft copying for universal mounting on a lift cabin
- Use up to speeds of 4 m/sec (787.4 ft/min).
- Particularly quiet and smooth-running, thanks to special belts and low-noise suspension.
- User-friendly, reliable alternative to switches and sensors.
- Fast and flexible installation with complete set of mechanical parts.
Product details
Max. height
70 metres (230 ft)
Speed
up to 4 m/sec (787.4 ft/min)
Resolution
Incremental encoder WDGI 58B:
up to 0.08 mm/pulse (0.0031496 inch/pulse) at 5000 pulses
Absolute encoder WDGA 58B multiturn with:
CANopen interface:
4,096 steps/turn and 262,144 (18 bit multiturn) turns,
CANopen lift interface:
4,096 steps/turn and 262,144 (18 bit multiturn) turns or
SSI interface:
4,096 (12 bit) steps/turn and 8,192 (13 bit multiturn) turns
Belt/Cable
Self-guiding special belt
Handout "Silent Move light"
Quiet digital shaft copying
for heights up to 120 metres (393.70 ft).
Download (1.14 MB)
Position measurement in elevator technology
Encoder WDGA58B CANopen LIFT with 9-pin D-SUB connector
Download (1.17 MB)
Short-Catalogue Encoders and systems
- Incremental and absolute encoders
- Digital shaft copying
- Made in Germany
- Motorfeedback
- Position Measurement Systems
Download (4.24 MB)
Rotary Encoder System
How to correctly measure position and speed of low-rise residential elevators.
Download (762 KB)
