WDGA 58S RS485

Absolute shaft encoder, magnetic, RS485 WDGA 58V,
Especially for food and beverage industry
Acid- and alkaline resistance
High pressure / steam cleaning
Clamping flange;
Housing: Ø 58 mm

16/32-bit Single-turn/Multi-turn;
Shaft: Ø 10 mm
CRC checksum

Data sheetGeneral technical data absolute encoders RS485 (PDF 620 kB)

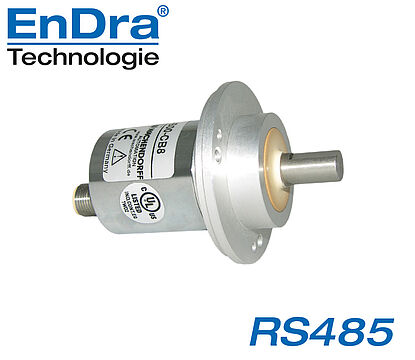

Drehgeber WDGA58SRS485
Highlights
  • Resistance to salt mist (IEC 60068-2-11) succeeded
  • Protection: IP67 + IP69k (high pressure / steam cleaning)
  • EnDra®: maintenance-free and environmentally friendly
  • RS485
  • Single-turn/Multi-turn (ST + MT max. 32 bit)
  • Forward-looking technology with 32 Bit processor
  • 2-colour-LED as indicator for operating condition
Product details
Flange
clamping flange
Housing
Ø 58 mm
steel case chrome-plated, magnetic shielding
Resolution
Single-turn Resolution

up to 65,536 steps/360° (16 bit)

Multi-turn Resolution

up to 32 bit.

Shaft
Ø 10 mm
Shaft length: L: 18 mm
Max. Permissible shaft loading radial: 100 N
Max. Permissible shaft loading axial: 100 N
Max. operating speed
3600 rpm
Power supply
4,75 VDC up to 32 VDC
Current consumption: typ. 50 mA
Power consumption: max. 0.5 W
4,75 VDC up to 5,5 VDC
Current consumption: typ. 80 mA
Power consumption: max. 0.44 W
Operating temperature
-40 °C up to +85 °C
Storage temperature
-40 °C up to +100 °C
Protection class
IP67+IP69K all around
STEP viewer / STEP data:

Your desired STEP file is not listed:
Request STEP file here

Description
CB8axial, 8-pin, shield connected to encoder housing
Assignments
S- (GND)1
S+ (DCin)2
A (DATA+)5
B (DATA-)6
PRESET7
DIR8
Shieldhousing
STEP viewer / STEP data:

Your desired STEP file is not listed:
Request STEP file here

Description
CC8radial, 8-pin, shield connected to encoder housing
Assignments
S- (GND)1
S+ (DCin)2
A (DATA+)5
B (DATA-)6
PRESET7
DIR8
Shieldhousing
