WDGAK 58E

Installation Kit for frequency controlled lifts WDGAK58E with hollow bore (blind) encoder

The following installation kits are available for fitting the encoder to a frequency controlled lift.

Data sheet
WDGAK58E
Highlights
  • Easy installation on all motor shafts
  • Flexible attachment possibilities
  • Space-saving
  • TTL, HTL or sine output
  • Threads: M8, M10, M12, M16 and M20
Product details
Description

Every installation kit consists:
1 x Encoder, 1 x with 15 m ready-made shielded cable, 5 x shaft adapter

Encoder type

Hollow bore (blind) Encoder WDG 58E
incl. torque support

Max. operating speed
6000 rpm
Pulses per revolution PPR

1024, 2048, 4096 (TTL/HTL)
1024, 2048 (sin/cos)

Output channels

H24: 3 channels, A, B and zero marker pulse N
R05: 6 channels, A, B, zero marker pulse N and inv.
SIN: 4 channels, A, B, (sin/cos)

Shaft adapters

Shaft adapters:
The shaft adapters are screwed into an appropriate thread on the lift.

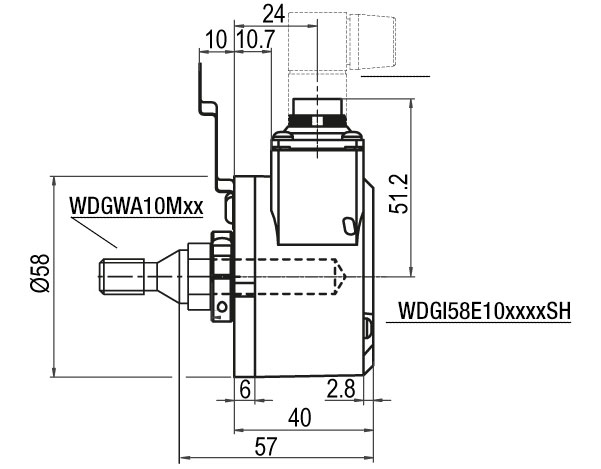

All dimensional specifications in mm
Z WDGAS58E en

Handout WDGAK58B-58E
Installation kit WDGAK58B/58E for frequency-controlled drivers

  • One set for all needs – minimum effort, maximum effect
  • Easy to mount on all motor shafts
  • Flexible and robust
  • Cost-effective solution for modernisation and servicing needs
  • Ready-to-use 15 m cable

Assembly instructions installation kit WDGAK58E with incremental encoder WDGI 58E
Assembly instructions installation kit WDGAK58E with incremental encoder WDGI 58E

General technical Data and safety instructions incremental encoders
General technical Data and safety instructions incremental encoders WDG/WDGI
