IVK-4-67
Stub / Bus cable, M12 x 1,
suitable for encoder WDGA IO-Link with connector IB5/IC5.
Connector straight - cable- female connector straight
Illustration similar
Housing material
TPU
Construction
Stub, M12 x 1 / Bus cable, M12x 1
No. of contacts
4-pin
Termination by
Connector straight - cable - female connector straight
Finish of contact
gold-plated
Cable properties
Sensor/actuator cable, PUR, halogen-free, UL, -30 °C to +90 °C
Protection
only when mated max. IP67
Order number(s)
IVK46702
Sensor/actuator cable with 2 m cable

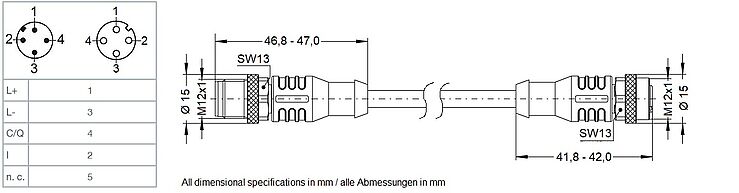

All dimensional specifications in mm
