WDGA 58V CAN SAE J1939

Absolute shaft encoder, magnetic, CAN SAE J1939 WDGA 58V,
Especially for food and beverage industry
Acid- and alkaline resistance
High pressure / steam cleaning
Clamping flange;
Housing: Ø 58 mm

16/32-bit Single-turn/Multi-turn;
Shaft: Ø 10 mm

Data sheet

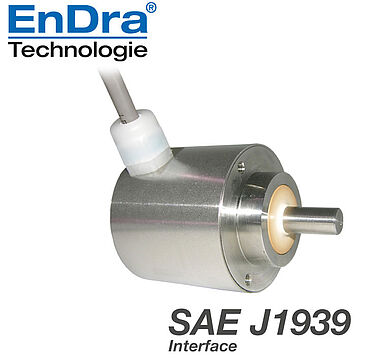

Drehgeber WDGA58VSAEJ1939
Highlights
  • Resistance to salt mist acc. to (IEC 60068-2-11)
  • Protection rating IP67 all around and IP69k (high pressure and steam cleaning)
  • EnDra® multiturn technology: maintenance-free and environmentally friendly
  • Acid- and alkaline resistance
  • CAN SAE J1939 protocol
  • Forward-looking technology with 32 Bit processor
Product details
Flange
clamping flange
Housing
Ø 58 mm
stainless steel, V4A
Resolution
Single-turn Resolution

65.536 steps/360° (16 bit)

Multi-turn Resolution

up to 32 bit

Shaft
Ø 10 mm
Shaft length: L: 18 mm
Max. Permissible shaft loading radial: 100 N
Max. Permissible shaft loading axial: 100 N
Max. operating speed
3600 rpm
Power supply
4,75 VDC up to 32 VDC
Current consumption: typ. 50 mA
Power consumption: max. 0.5 W
Operating temperature
-20 °C up to +80 °C
Storage temperature
-20 °C up to +80 °C
Protection class
IP67+IP69K all around
STEP viewer / STEP data:

Your desired STEP file is not listed:
Request STEP file here

Description
L3radial, shield connected to encoder housing
Assignments
(+) VccBN
GNDOG
CANHighGN
CANLowYE
CANGND shieldshield
Handout WDGA Encoder Drehgeber
Handout Absolute encoders WDGA

  • Absolute encoders with flange Ø 36 mm / Ø 58 mm
  • Single-/Multiturn (16/43)
  • Ground-breaking technology 32 Bit processor
  • Very high shaft loading, IP67
  • EnDra® Multiturn technology: No gears, no battery
  • QuattroMag® Singleturn technology: High precision +/- 0,0878°

Download (1.34 MB)
Kurzkatalog Drehgeber - Short catalogue encoders
Short-Catalogue Encoders and systems

  • Incremental and absolute encoders
  • Digital shaft copying
  • Made in Germany
  • Motorfeedback
  • Position Measurement Systems

Download (4.24 MB)
HALT Test
The HALT-Test

Download (1.06 MB)
Delivery times and service
Delivery times and service

of Wachendorff Automation GmbH & Co. KG

Download (543 KB)
Assembly instructions for WDGA absolute encoder SAE J1939
Assembly instructions for WDGA absolute encoder SAE J1939

Download (887 KB)
ECOLAB Certificate of the tested resistance of material
ECOLAB - Certificate of the tested resistance of material

against the detergent and desinfectants P3-topactive DES, P3-topax 19, P3-topax 56, P3-topax 66 and P3-topax 91, as well as demineralised water as zero value.

Download (110 KB)
EC Konformitätserklärung Drehgeber : EC declaration of conformity encoder
EU declaration of conformity absolute encoder WDGA 2.0 CAN/SSI

for Wachendorff Automation GmbH & Co. KG.

Download (611 KB)
UKCA declaration of conformity absolute encoder WDGA 2.0 CAN/SSI
UKCA declaration of conformity absolute encoder WDGA 2.0 CAN/SSI

for Wachendorff Automation GmbH & Co. KG.

Download (144 KB)
UL Certificates for Wachendorff Automation Products 2014-03-28
UL Certificates

for Wachendorff Automation products.

Download (556 KB)
REACH regulation
REACH- and RoHS regulation of the EU

Information

Download (179 KB)
ISO Zertifikat DIN EN 9001:2015
ISO Certificate DIN EN 9001:2015

Download (405 KB)

The encoder WDGA 58V CAN SAE J1939 is also available with fixed 120 Ohm terminating resistor.
