SZG95

Draw-wire system Robust Line SZG95

Measuring range: 0 mm up to 3000 mm
output: incremental or absolute
Rope sheave circumference = 200 mm
Housing: Aluminium, anodised, spring case PA6

Data sheet
Seilzugsystem SZG95
Highlights
  • Ball bearing drill protection
  • Measuring rope (stainless steel)
  • Bushing
  • Quick and easy mounting
Product details
Description

The draw-wire system SZG95 can be used even where space is tight, thanks to its compact dimensions.
The SZG95 can be mounted quickly and with its highly precise mechanics provides reliable accurate length measurement. The intelligent spring-suspension and the stainless-steel wire cable guarantee long-service life, even in difficult operating conditions.
The mechanics have been perfectly matched to the encoder models WDGI58B or WDGA58B encoders. The encoder is already installed.


Order No. for SZG95 without Encoder: SZG950300UZVK

Example order No. for SZG95 with Encoder: s. datasheet

Request STEP file
(Please define an encoder type and enter the corresponding order number of the SZG in your STEP file request)

Accessories: Deflection pulley

Measurement range

0 - 3000 mm

Resolution

Calculation of Resolution:
Incremental e.g. 2500 pulses and 3 m wire length

Calculation of pulses/mm:
Pulses/Rope sheave circumference = Pulses/mm
e.g. 2500 / 200 = 12.5 Pulses/mm

Absolute e.g. 12 bit single-turn and 3 m wire length

Calculation of steps/mm: (x = Single-turn resolution)
2X/Rope sheave circumference = Steps/mm
e.g. 212 / 200 = 4096 / 200 = 20.5 Steps/mm

Signals
incremental
absolute
Operating temperature
incremental: -20 °C up to +80 °C; absolute: -20 °C bis +85 °C

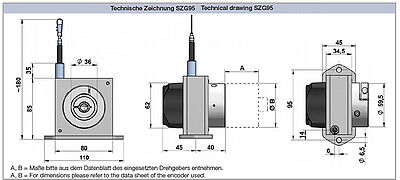

All dimensional specifications in mm
