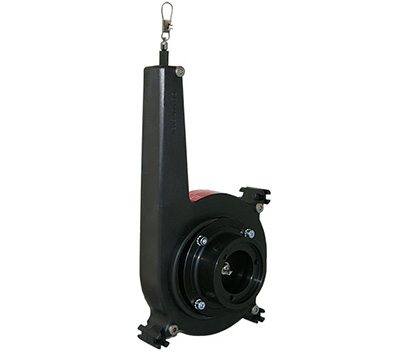

Draw-wire system Pure Line SZG107

Measuring range: 0 mm up to 7,500 mm
output: incremental or absolute
Mean distance per rotation = 333.32 mm
Housing: robust glass fibre reinforced plastic

Data sheet
Seilzugsystem Draw-wire system SZG107 Pure Line
  • Compact design
  • Simple, quick and flexible installation
  • High operational reliability
  • Long service life
Product details

The draw-wire system SZG107 can be used even where space is tight, thanks to its compact dimensions.
The SZG107 can be mounted quickly and with its highly precise mechanics provides reliable accurate length measurement. The intelligent spring-suspension and the stainless-steel wire cable guarantee long-service life, even in difficult operating conditions.

This encoders are suitable for mounting:
(All encoders only with option AIX = shaft: Ø 6 mmm, shaft length: 10 mm)

Incremental encoders:
WDGI-58A-06-AIX (optical)
Absolute encoders WDGA-58A-06-AIX

The encoder is already mounted.

Order No. for SZG107 without Encoder: SZG1070750UZVK

Example order No. for SZG107 with Encoder: s. datasheet

Request STEP file
(Please define an encoder type and enter the corresponding order number of the SZG in your STEP file request)

Accessories: Deflection pulley

Measurement range

0 - 7500 mm


Calculation of Resolution:
Incremental e.g. 2500 pulses and 7.5 m wire length
Calculation of pulses/mm:

Pulses/Mean distance per rotation = Pulses/mm
e.g. 2500 / 333.32 = approx. 7.5 Pulses/mm

Absolute e.g. 12 bit single-turn and 3.5 m wire length
Calculation of steps/mm:
(x = Single-turn resolution)
2X/Mean distance per rotation = Steps/mm
e.g. 212 / 333.32 = 4096 / 333.2 = approx. 12.29 Steps/mm

Operating temperature
-20 °C up to +80 °C
All dimensional specifications in mm

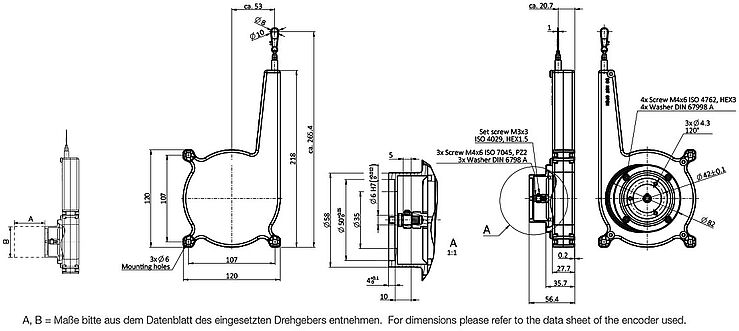

Zeichnung - drawing SZG107

Handout SZG Pure Line
Handout - Draw-wire systems SZG Pure Line

... precise length measurement from 2,400 mm up to 7,500 mm
Robust glass fibre reinforced plastic housing
