WDGA 58V RS485

Absolute shaft encoder, magnetic, RS485 WDGA 58V,
Especially for food and beverage industry
Acid- and alkaline resistance

High pressure / steam cleaning
Clamping flange;
Housing: Ø 58 mm

16/32-bit Single-turn/Multi-turn;
Shaft: Ø 10 mm
CRC checksum

Data sheet General technical data absolute encoders RS485 (PDF 594 kB)

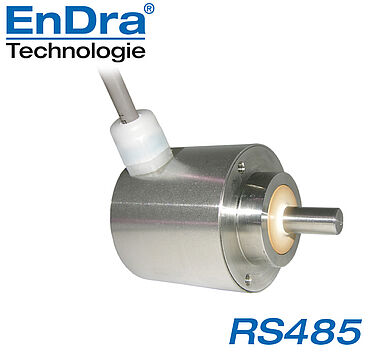

Drehgeber WDGA58VRS485
  • Resistance to salt mist acc. to (IEC 60068-2-11)
  • High protection rating IP67 all around and IP69K
    (high pressure / steam cleaning)
  • EHEDG: Tested hygienic design
  • Ecolab: Certificate on resistance to cleaning and disinfection agents
  • Acid- and alkaline resistance
  • Radial shaft sealing ring with no dead-room (PTFE)
  • EnDra® technology:
    maintenance-free and environmentally friendly
  • RS485
  • Single-turn/Multi-turn (max. 16 bit /32 bit)
  • Forward-looking technology with 32 Bit processor
Product details
clamping flange
Ø 58 mm
stainless steel, V4A
Single-turn Resolution

up to 65,536 steps/360° (16 bit)

Multi-turn Resolution

up to 32 bit.

Ø 10 mm
Shaft length: L: 18 mm
Max. Permissible shaft loading radial: 100 N
Max. Permissible shaft loading axial: 100 N
Max. operating speed
3600 rpm
Power supply
4,75 VDC up to 32 VDC
Current consumption: typ. 50 mA
Power consumption: max. 0.5 W
4,75 VDC up to 5,5 VDC
Current consumption: typ. 80 mA
Power consumption: max. 0.44 W
Operating temperature
-20 °C up to +80 °C
Storage temperature
-20 °C up to +80 °C
Protection class
IP67 all around and IP69K
STEP data:

Your desired STEP file is not listed:
Request STEP file here

L3 radial, shield connected to encoder housing
S+ (DCin)BN
