Wachendorff Automation encoders : Adpater sleeves for bore size Ø 38 mm

WDGHA38

Adapter sleeves for bore size Ø 38 mm

for thru-bore encoder WDG 100H and WDG 100G

Illustration similar

Order number(s)

WDGHA14001

Adapter sleeve 38 mm to 14 mm

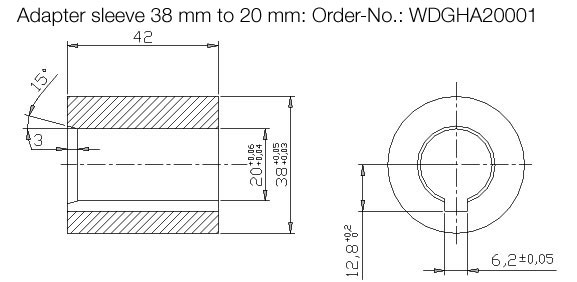

WDGHA20001

Adapter sleeve 38 mm to 20 mm

WDGHA25001

Adapter sleeve 38 mm to 25 mm

WDGHA28001

Adapter sleeve 38 mm to 28 mm

All dimensional specifications in mm

STEP viewer / STEP data:

Your desired STEP file is not listed:
Request STEP file here

All dimensional specifications in mm

STEP viewer / STEP data:

Your desired STEP file is not listed:
Request STEP file here

All dimensional specifications in mm

STEP viewer / STEP data:

Your desired STEP file is not listed:
Request STEP file here

All dimensional specifications in mm

Your desired STEP file is not listed:
Request STEP file here

For further information please contact our local distributor.
