WDGI 50V

Shaft Encoder incremental,
resolution: up to 16384 ppr,
Screw flange: Ø 50 mm [1.969"]

Shaft Ø: 6 mm [0.236"],
IP67 all around,
Signal shape: square-wave,
Operating principle: magnetic

Data sheet

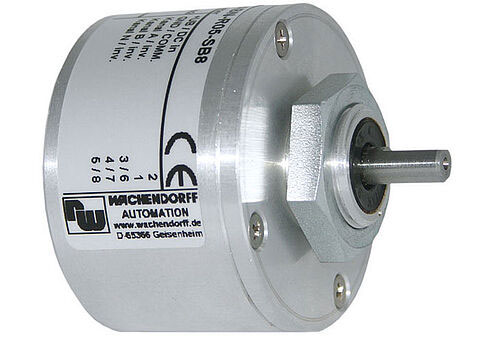

Drehgeber Encoder WDGI50V
Illustration similar
Highlights
  • Extremely rugged and economical encoder with short measurements
  • Easy screw mounting
  • Protection to IP67 all around
  • Optional: -40 °C up to +85 °C [-40 °F up to +185 °F]
Product details
Flange
screw flange
Pulses per revolution PPR
1-16384
Housing
Ø 50 mm [Ø 1.969"]
stainless steel, V2A
Shaft
Ø 6 mm [Ø 0.236"]
Shaft length: L: 13 mm [0.512"]
Max. Permissible shaft loading radial: 30 N [3.059 kp]
Max. Permissible shaft loading axial: 45 N [4.589 kp]
Max. operating speed
6000 rpm
Operating principle
magnetic
Output circuit
HTL (TTL at 5 VDC)
HTL, inv. (TTL/RS422 comp. at 5 VDC)
Output frequency
HTL up to 16384 ppr, max. 600 kHz
TTL up to 16384 ppr, max. 1 MHz
Power supply
4.75 VDC up to 30 VDC
Current consumption: typ. 40 mA

Environmental data

ESD (DIN EN 61000-4-2):

8 kV

Burst (DIN EN 61000-4-4):

2 kV

includes EMC:

DIN EN 61000-6-2
DIN EN 61000-6-3

Vibration:
(DIN EN 60068-2-6)

50 m/s2 (10 Hz up to 2000 Hz)

Shock:
(DIN EN 60068-2-27)

1000 m/s2 (6 ms)

Electrial Safety:

according DIN VDE 0160

Duty information

Customs tariff number:

90318020

Country of origin:

Germany

Operating temperature
Connector: -40 °C up to +85 °C, Cable: -20 °C up to +80 °C (Option ACA: -40 °C up to +85 °C). Connector: -40 °F up to +185 °F, Cable: -4 °F up to +176 °F, Option ACA: -40 °F up to +185 F°
Protection class
IP67 all around

Your desired STEP file is not listed:
Request STEP file here

Description ABN inv. poss.
L2 axial, shield connected to encoder housing●
Assignments
 L2L2
CircuitN35M35
GNDWHWH
(+) VccBNBN
AGNGN
BYEYE
NGYGY
---
A inv.-RD
B inv.-BK, (BU at ACA)
N inv.-VT
Shieldflexflex

Your desired STEP file is not listed:
Request STEP file here

Description ABN inv. poss.

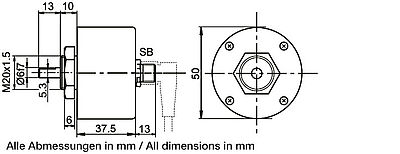

SB5 axial, 5-pin, Connector connected to encoder housing-
SB8 axial, 8-pin, Connector connected to encoder housing●
Assignments
SB5SB8
 5-pin8-pin
connector drawing
CircuitN35M35
GND31
(+) Vcc12
A43
B24
N55
---
A inv.-6
B inv.-7
N inv.-8
n. c.--
Shield--
1-16384 PPR
Power supply VDC
4.75 - 30 VDC
Current consumption
typ. 40 mA
Signal shape
square-wave
Output circuit
HTL (TTL at 5 VDC)
Channels
AB, ABN
Output
push-pull
Load
max. 40 mA / channel
Signal level mA
at 20 mA
Signal level H>
H > Vcc -10% Vcc
Signal level L<
L < 2.5 VDC
Output frequency
HTL: max. 600 kHZ; TTL: max. 1 MHz
Circuit protection
inverse-polarity and short-circuit protection
Light reserve warning
no
Power supply VDC
4.75 - 30 VDC
Current consumption
typ. 40 mA
Signal shape
square-wave
Output circuit
HTL, inv. (TTL/RS422 comp. at 5 VDC)
Channels
AB, ABN, and inverted signals
Output
push-pull
Load
max. 40 mA / channel
Signal level mA
at 20 mA
Signal level H>
H > Vcc -10% Vcc
Signal level L<
L < 2.5 VDC
Output frequency
HTL: max. 600 kHZ; TTL: max. 1 MHz
Circuit protection
inverse-polarity and short-circuit protection
Light reserve warning
no
The encoder WDGI 50V with the output circuit types N35, M35 is also available with the extended temperature range -40 °C up to +85 °C [-40 °F up to +185 °F] (measured at the flange).
The encoder WDGI 50V can be supplied with more than 2 m cable. The maximum cable length depends on the supply voltage and the frequency; see 'General Technical Data'
Please extend the standard order code with a three figure number, specifying the cable length in decimetres.
Example: 5 m cable = 050
