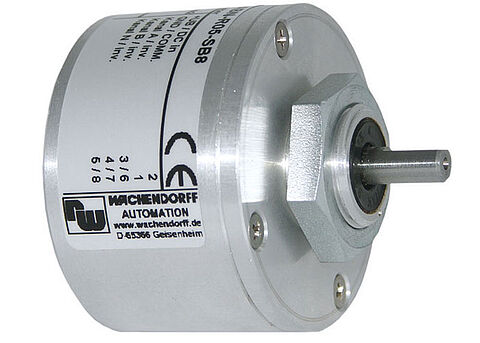

WDG 53V

Shaft Encoder incremental, optical,
resolution: up to 1500 ppr,
Screw flange: Ø 53 mm

(WDG 53V substitutes WDG 53S)
Shaft: Ø 6 mm,
protection rating: IP68 all around,
Signal shape: square-wave.

Data sheet
Drehgeber WDG53V
Highlights
  • Extremely rugged and economical encoder with short measurements
  • Easy screw mounting
  • Protection to IP68 all around
  • Optional: -40 °C up to +85 °C
Product details
Flange
screw flange
Pulses per revolution PPR
up to 1500 PPR
Housing
Ø 53 mm
stainless steel, V2A
Shaft
Ø 6 mm
Shaft length: L: 13 mm
Max. Permissible shaft loading radial: 30 N
Max. Permissible shaft loading axial: 45 N
Max. operating speed
6000 rpm
Output circuit
TTL, RS422 compatible, inv.
HTL
Output frequency
TTL ≤ 1500 ppr, max. 200 kHz
HTL ≤ 1500 ppr, max. 200 kHz
Power supply
4,75 VDC up to 5,5 VDC
Current consumption: typ. 70 mA
10 VDC up to 30 VDC
Current consumption: typ. 70 mA

Environmental data

ESD (DIN EN 61000-4-2):

8 kV

Burst (DIN EN 61000-4-4):

2 kV

includes EMC:

DIN EN 61000-6-2
DIN EN 61000-6-3

Vibration:
(DIN EN 60068-2-6)

50 m/s2 (10 Hz up to 2000 Hz)

Shock:
(DIN EN 60068-2-27)

1000 m/s2 (6 ms)

Design:

according DIN VDE 0160

Duty information

Customs tariff number:

90318020

Country of origin:

Germany

Operating temperature
-20 °C up to +80 °C
Protection class
IP68
STEP viewer / STEP data:

Your desired STEP file is not listed:
Request STEP file here

Description ABN inv. poss.
K2 axial, shield not connected
L2 axial, shield connected to encoder housing
Assignments
 K2, L2K2, L2
CircuitH05, H24R05, R24
GNDWHWH
(+) VccBNBN
AGNGN
BYEYE
NGYGY
Light reserve warning--
A inv.-RD
B inv.-BK, (BU at ACA)
N inv.-VT
Shieldflexflex
STEP viewer / STEP data:

Your desired STEP file is not listed:
Request STEP file here

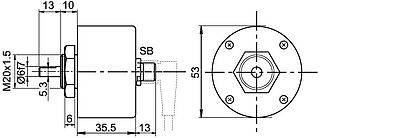

Description ABN inv. poss.
SB4 axial, 4-pin, Connector connected to encoder housing-
SB5 axial, 5-pin, Connector connected to encoder housing-
SB8 axial, 8-pin, Connector connected to encoder housing
Assignments
SB4SB5SB8SB8
 4-pin5-pin8-pin8-pin
connector drawing
CircuitH05, H24H05, H24H05, H24R05, R24
GND3311
(+) Vcc1122
A2433
B4244
N-555
Light reserve warning----
A inv.---6
B inv.---7
N inv.---8
n. c.--6, 7, 8-
Shield----
up to 2500 PPR
Power supply VDC
4.75 - 5.5 VDC
Current consumption
typ. 70 mA
Signal shape
square-wave
Output circuit
TTL
Channels
AB, ABN
Output
push-pull
Load
max. 40 mA / channel
Signal level mA
at 20 mA
Signal level H>
H > 2.5 VDC
Signal level L<
L < 0.5 VDC
Output frequency
max. 200 kHz
Circuit protection
no
Light reserve warning
no
Power supply VDC
4.75 - 5.5 VDC
Current consumption
typ. 70 mA
Signal shape
square-wave
Output circuit
TTL, RS422 comp., inverted
Channels
AB, ABN, and inverted signals
Output
push-pull
Load
max. 40 mA / channel
Signal level mA
at 20 mA
Signal level H>
H > 2.5 VDC
Signal level L<
L < 0.5 VDC
Output frequency
max. 200 kHz
Circuit protection
no
Light reserve warning
no
Power supply VDC
10 - 30 VDC
Current consumption
typ. 70 mA
Signal shape
square-wave
Output circuit
HTL
Channels
AB, ABN
Output
push-pull
Load
max. 40 mA / channel
Signal level mA
at 20 mA
Signal level H>
H > Vcc - 2.5 VDC
Signal level L<
L < 2.5 VDC
Output frequency
max. 200 kHz
Circuit protection
yes
Light reserve warning
no
Power supply VDC
10 - 30 VDC
Current consumption
typ. 70 mA
Signal shape
square-wave
Output circuit
HTL inverted
Channels
AB, ABN, and inverted signals
Output
push-pull
Load
max. 40 mA / channel
Signal level mA
at 20 mA
Signal level H>
H > Vcc - 2.5 VDC
Signal level L<
L < 2.5 VDC
Output frequency
max. 200 kHz
Circuit protection
yes
Light reserve warning
no
The encoder WDG 53V with the output circuit types H24, R24 is also available with the extended temperature range -40 °C up to +80 °C (measured at the flange).
The encoder WDG 53V can be supplied with more than 2 m cable. The maximum cable length depends on the supply voltage and the frequency; see 'General Technical Data'
Please extend the standard order code with a three figure number, specifying the cable length in decimetres.
Example: 5 m cable = 050
