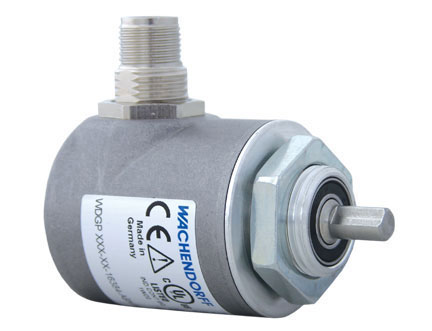

WDGP 36S

Shaft Encoder incremental, magnetic,
resolution up to 16384 ppr,
Screw flange: Ø 36 mm

Shaft: Ø 6 mm,
Signal shape: square-wave.

Data sheet General technical Data WDGP (PDF 766 kB)
Drehgeber Encoder WDGP36S
Highlights
  • Due to high quality electronics any number of pulses up to 16384
  • Protection class IP67, at shaft input IP65
  • High output frequency up to 1 MHz
  • Reverse polarity protection and short-circuit protection at 4.75 VDC to 32 VDC
Product details
Flange
screw flange
Pulses per revolution PPR
1-16384
Housing
Ø 36 mm
stainless steel
Shaft
Ø 6 mm
Shaft length: L: 11.5 mm
Max. Permissible shaft loading radial: 80 N
Max. Permissible shaft loading axial: 50 N
Max. operating speed
12000 rpm
Output circuit
HTL
HTL, inv.
TTL
TTL, RS422 compatible, inv.
Output frequency
HTL up to 16384 ppr, max. 600 kHz
TTL up to 16384 ppr, max. 1 MHz
Power supply
4,75 VDC up to 32 VDC
Current consumption: typ. 80 mA

Set zero pulse:

Set: SET = +UB for 2 s
Deaktivate: SET = GND

Environmental data

ESD (DIN EN 61000-4-2):

8 kV

Burst (DIN EN 61000-4-4):

2 kV

includes EMC:

DIN EN 61000-6-2
DIN EN 61000-6-3

Vibration:
(DIN EN 60068-2-6)

50 m/s2 (10 Hz up to 2000 Hz)

Shock:
(DIN EN 60068-2-27)

1000 m/s2 (6 ms)

Design:

According DIN VDE 0160

Duty information

Customs tariff number:

90318020

Country of origin:

Germany

Operating temperature
Connector: -40 °C up to +85 °C, cable: -20 °C up to +80 °C
Protection class
Housing: IP65, IP67; shaft sealed: IP65; cable outlet K1: IP40
STEP viewer / STEP data:

Your desired STEP file is not listed:
Request STEP file here

Description ABN inv. poss.
L2 axial, shield connected to encoder housing
Assignments
 L2L2L2L2
CircuitM11, M12M13, M14N11, N12N13, N14
GNDWHWHWHWH
(+) VccBNBNBNBN
AGNGNGNGN
BYEYEYEYE
NGYGYGYGY
SET-PK-PK
A inv.RDRD--
B inv.BKBK--
N inv.VTVT--
Shieldflexflexflexflex
STEP viewer / STEP data:

Your desired STEP file is not listed:
Request STEP file here

Description ABN inv. poss.
L3 radial, shield connected to encoder housing
Assignments
 L3L3L3L3
CircuitM11, M12M13, M14N11, N12N13, N14
GNDWHWHWHWH
(+) VccBNBNBNBN
AGNGNGNGN
BYEYEYEYE
NGYGYGYGY
SET-PK-PK
A inv.RDRD--
B inv.BKBK--
N inv.VTVT--
Shieldflexflexflexflex
STEP viewer / STEP data:

Your desired STEP file is not listed:
Request STEP file here

Description ABN inv. poss.
K1 radial, shield not connected (IP40)
Assignments
 K1K1K1K1
CircuitM11, M12M13, M14N11, N12N13, N14
GNDWHWHWHWH
(+) VccBNBNBNBN
AGNGNGNGN
BYEYEYEYE
NGYGYGYGY
SET-PK-PK
A inv.RDRD--
B inv.BKBK--
N inv.VTVT--
Shieldflexflexflexflex
STEP viewer / STEP data:

Your desired STEP file is not listed:
Request STEP file here

Description ABN inv. poss.

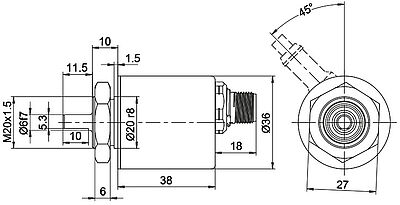

SB5 axial, 5-pin, Connector connected to encoder housing-
SB8 axial, 8-pin, Connector connected to encoder housing
SB12 axial, 12-pin, Connector connected to encoder housing
Assignments
SB5SB8SB12
 5-pin8-pin12-pin
connector drawing
CircuitN11, N12M11, M12M13, M14
GND313
(+) Vcc121
A434
B246
N558
SET--5
A inv.-69
B inv.-77
N inv.-810
n. c.--2, 11, 12
Shield---
STEP viewer / STEP data:

Your desired STEP file is not listed:
Request STEP file here

Description ABN inv. poss.
SC5 radial, 5-pin, Connector connected to encoder housing-
SC8 radial, 8-pin, Connector connected to encoder housing
SC12 radial, 12-pin, Connector connected to encoder housing
Assignments
SC5SC8SC12
 5-pin8-pin12-pin
connector drawing
CircuitN11, N12M11, M12M13, M14
GND313
(+) Vcc121
A434
B246
N558
SET--5
A inv.-69
B inv.-77
N inv.-810
n. c.--2, 11, 12
Shield---
1-16384 PPR
Power supply VDC
4.75 - 32 VDC
Current consumption
typ. 80 mA
Signal shape
square-wave
Output circuit
HTL inverted
Channels
ABN, and inverted signals
Output
push-pull
Load
max. 40 mA / channel
Signal level mA
at 20 mA
Signal level H>
H > Vcc -2.5 VDC
Signal level L<
L < 0.5 VDC
Output frequency
max. 600 kHz
Circuit protection
inverse-polarity and short-circuit protection
Light reserve warning
no
Power supply VDC
4.75 - 32 VDC
Current consumption
typ. 80 mA
Signal shape
square-wave
Output circuit
TTL, RS422 comp., inverted
Channels
ABN, and inverted signals
Output
push-pull
Load
max. 40 mA / channel
Signal level mA
at 20 mA
Signal level H>
H > 2.5 VDC
Signal level L<
L < 0.5 VDC
Output frequency
max. 1 MHz
Circuit protection
inverse-polarity and short-circuit protection
Light reserve warning
no
Power supply VDC
4.75 - 32 VDC
Current consumption
typ. 80 mA
Signal shape
square-wave
Output circuit
HTL, inv. set zero pulse
Channels
ABN, and inverted signals
Output
push-pull
Load
max. 40 mA / channel
Signal level mA
at 20 mA
Signal level H>
H > Vcc -2.5 VDC
Signal level L<
L < 0.5 VDC
Output frequency
max. 600 kHz
Circuit protection
inverse-polarity and short-circuit protection
Light reserve warning
no
Power supply VDC
4.75 - 32 VDC
Current consumption
typ. 80 mA
Signal shape
square-wave
Output circuit
TTL, RS422 compatible, inv. set zero pulse
Channels
ABN, and inverted signals
Output
push-pull
Load
max. 40 mA / channel
Signal level mA
at 20 mA
Signal level H>
H > 2.5 VDC
Signal level L<
L < 0.5 VDC

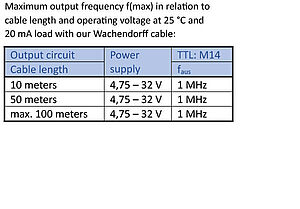

Output frequency
max. 1 MHz
Circuit protection
inverse-polarity and short-circuit protection
Light reserve warning
no
Power supply VDC
4.75 - 32 VDC
Current consumption
typ. 80 mA
Signal shape
square-wave
Output circuit
HTL
Channels
ABN, and inverted signals
Output
push-pull
Load
max. 40 mA / channel
Signal level mA
at 20 mA
Signal level H>
H > Vcc -2.5 VDC
Signal level L<
L < 0.5 VDC
Output frequency
max. 600 kHz
Circuit protection
inverse-polarity and short-circuit protection
Light reserve warning
no
Power supply VDC
4.75 - 32 VDC
Current consumption
typ. 80 mA
Signal shape
square-wave
Output circuit
TTL
Channels
ABN, and inverted signals
Output
push-pull
Load
max. 40 mA / channel
Signal level mA
at 20 mA
Signal level H>
H > 2.5 VDC
Signal level L<
L < 0.5 VDC
Output frequency
max. 1 MHz
Circuit protection
inverse-polarity and short-circuit protection
Light reserve warning
no
Power supply VDC
4.75 - 32 VDC
Current consumption
typ. 80 mA
Signal shape
square-wave
Output circuit
HTL set zero pulse
Channels
ABN, and inverted signals
Output
push-pull
Load
max. 40 mA / channel
Signal level mA
at 20 mA
Signal level H>
H > Vcc -2.5 VDC
Signal level L<
L < 0.5 VDC
Output frequency
max. 600 kHz
Circuit protection
inverse-polarity and short-circuit protection
Light reserve warning
no
Power supply VDC
4.75 - 32 VDC
Current consumption
typ. 80 mA
Signal shape
square-wave
Output circuit
TTL set zero pulse
Channels
ABN, and inverted signals
Output
push-pull
Load
max. 40 mA / channel
Signal level mA
at 20 mA
Signal level H>
H > 2.5 VDC
Signal level L<
L < 0.5 VDC
Output frequency
max. 1 MHz
Circuit protection
inverse-polarity and short-circuit protection
Light reserve warning
no
