Shaft Encoder via Smartphone (NFC) configurable, WDGN 36S,
incremental quadrature, magnetic,
Screw flange: Ø 36 mm
Shaft: Ø 6 mm,
resolution up to 16384 ppr and HTL/TTL via NFC configurable,
Signal shape: square-wave.
- Due to high quality electronics any number of pulses up to 16384 via NFC configurable
- HTL/TTL via NFC configurable
- Protection class IP67, at shaft input IP65
- High output frequency up to 1 MHz
- Reverse polarity protection and short-circuit protection at 4.75 VDC to 32 VDC
Shaft length: L: 11.5 mm
Max. Permissible shaft loading radial: 80 N
Max. Permissible shaft loading axial: 50 N
Current consumption: typ. 80 mA
Nullimpuls setzen:
Setzen: SET = +UB für 2 s
Deaktiviert: SET = GND
Configurable via NFC:
BASIC: (BAS)
Channels:
ABN and inverted
HTL / TTL
freely selectable
Pulses / revolution:
1 ppr up to 16384 ppr freely selectable
Advanced (ADV):
Channels:
4 channels configurable + inv. signals (ABN possible)
HTL / TTL:
freely selectable
Pulses / revolution:
1 ppr up to 16384 ppr freely selectable
Number of pulses for each channel:
individually selectable
Set zero pulse:
yes
Pulse width and position:
Width and position adjustable
Environmental data
Noise immunity:
ESD (DIN EN 61000-4-2):
8 kV
EMC:
(DIN EN 61000-4-3):
10 V/m
Burst (DIN EN 61000-4-4):
2 kV
High frequency fields
(DIN EN 61000-4-6):
10 V
Surge (DIN EN 61000-4-5):
2 kV
Radio interference:
According DIN EN 55011
NFC:
EMC:
According ETSI EN 301 489
RED:
According ETSI EN 300 330
Electrical safety:
According DIN EN 61010-1, UL 61010-1, CSA C22.0 No. 61010-1-12
Vibration:
(DIN EN 60068-2-6)
300 m/s2 (10 Hz up to 2000 Hz)
Shock:
(DIN EN 60068-2-27)
1000 m/s2 (6 ms)
Design:
According DIN VDE 0160
Duty information
Customs tariff number:
90318020
Country of origin:
Germany
| Description | ABN inv. poss. | |
|---|---|---|

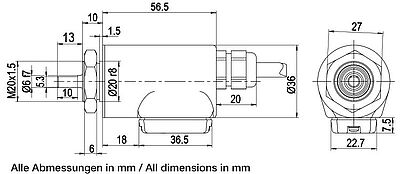

| L2 | axial, shield connected to encoder housing | ● |
| L2 | |
| Circuit | BAS |
| GND | WH |
| (+) Vcc | BN |
| A | GN |
| B | YE |
| N | GY |
| A inv. | RD |
| B inv. | BK |
| N inv. | VT |
| Shield | flex |
| Description | ABN inv. poss. | |
|---|---|---|
| L2 | axial, shield connected to encoder housing | ● |
| L2 | |
| Circuit | ADV |
| GND | WH |
| (+) Vcc | BN |
| CH1 | GN |
| CH2 | YE |
| CH3 | GY |
| CH4 | GYPK |
| SET | PK |
| CH1 inv. | RD |
| CH2 inv. | BK |
| CH3 inv. | VT |
| CH4 inv. | RDBU |
| Shield | flex |
| Description | ABN inv. poss. | |
|---|---|---|
| L3 | radial, shield connected to encoder housing | ● |
| L3 | |
| Circuit | BAS |
| GND | WH |
| (+) Vcc | BN |
| A | GN |
| B | YE |
| N | GY |
| A inv. | RD |
| B inv. | BK |
| N inv. | VT |
| Shield | flex |
| Description | ABN inv. poss. | |
|---|---|---|
| L3 | radial, shield connected to encoder housing | ● |
| L3 | |
| Circuit | ADV |
| GND | WH |
| (+) Vcc | BN |
| CH1 | GN |
| CH2 | YE |
| CH3 | GY |
| CH4 | GYPK |
| SET | PK |
| CH1 inv. | RD |
| CH2 inv. | BK |
| CH3 inv. | VT |
| CH4 inv. | RDBU |
| Shield | flex |
| Description | ABN inv. poss. | |
|---|---|---|
| K1 | radial, shield not connected (IP40) | ● |
| K1 | |
| Circuit | BAS |
| GND | WH |
| (+) Vcc | BN |
| A | GN |
| B | YE |
| N | GY |
| A inv. | RD |
| B inv. | BK |
| N inv. | VT |
| Shield | flex |
| Description | ABN inv. poss. | |
|---|---|---|
| K1 | radial, shield not connected (IP40) | ● |
| K1 | |
| Circuit | ADV |
| GND | WH |
| (+) Vcc | BN |
| CH1 | GN |
| CH2 | YE |
| CH3 | GY |
| CH4 | GYPK |
| SET | PK |
| CH1 inv. | RD |
| CH2 inv. | BK |
| CH3 inv. | VT |
| CH4 inv. | RDBU |
| Shield | flex |
| Description | ABN inv. poss. | |
|---|---|---|

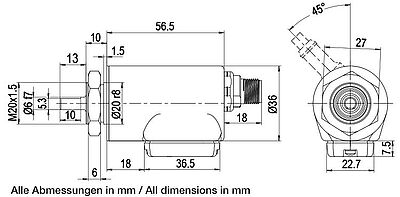

| SB8 | axial, 8-pin, Connector connected to encoder housing | ● |
| Description | ABN inv. poss. | |
|---|---|---|
| SB12 | axial, 12-pin, Connector connected to encoder housing | ● |
| Description | ABN inv. poss. | |
|---|---|---|
| SC8 | radial, 8-pin, Connector connected to encoder housing | ● |
| Description | ABN inv. poss. | |
|---|---|---|
| SC12 | radial, 12-pin, Connector connected to encoder housing | ● |
configurable 1-16384 PPR
Please extend the standard order code with a three figure number, specifying the cable length in decimetres.
Example: 5 m cable = 050
Download Wachendorff App IOS Encoder WDGN
By downloading and using software and apps
from this homepage, I agree to the GTC and
the supplementary software clause.
Downloadlink Wachendorff App Android encoder WDGN
By downloading and using software and apps
from this homepage, I agree to the GTC and
the supplementary software clause.
Downloadlink Wachendorff App Huawei Encoder WDGN
By downloading and using software and apps
from this homepage, I agree to the GTC and
the supplementary software clause.
NFC configurable via Wachendorff App (IOS, Android, Huawei)
Download (1.29 MB)
for Wachendorff Automation GmbH & Co. KG.
Download (349 KB)
Female connector KI-8-67:
Suitable for encoder with sensor connector outlet SB8 and SC8, 8 pin, IP67
Ready-made shielded connection cable with female cable connector straight,
shield connected.
Female connector KIA-8-67:
Suitable for encoder with sensor connector outlet SB8 and SC8, 8 pin, IP67
Ready-made shielded connection cable with female cable connector angular,
shield connected.
Female connector KI-12-67-ADV:
Suitable for NFC encoder WDGN configurable via NFC with sensor connector outlet SB12 and SC12, 12 pin, IP67
Ready-made shielded connection cable with female cable connector straight,
shield connected.
Female connector KIA-12-67-ADV:
Suitable for encoder WDGN configurable via NFC with sensor connector outlet SB12 and SC12, 12 pin, IP67
Ready-made shielded connection cable with female cable connector angular,
shield connected.
Mounting angle MW40S
suitable for incremental encoder WDG 40S, WDG 53V and WDGP 36S.
Helical coupling WK24
for encoder with shaft Ø 6 mm, 8 mm, 10 mm or 12 mm.
Bellows coupling BK29
for encoder with shaft Ø 6 mm, 8 mm, 10 mm or 12 mm*.
Max. offset of shafts radial: ± 0,25 mm or ± 0,30 mm*
Torsion spring stiffness: 150 Nm/rad or 130 Nm/rad*
Double loop coupling DSK29
for encoder with shaft Ø 6 mm, 8 mm or 10 mm.
No moving parts, thermally and electrically insulating, smooth running, maintenance-free.
Good resistance to
Gasoline, oil, benzene, toluene, aromatic and non aromatic hydrocarbons, alcohols, glycols, solvents and many chemicals.
Double loop coupling DSK38
for encoder with shaft Ø 6 mm, 8 mm, 10 mm or 12 mm.
No moving parts, thermally and electrically insulating, smooth running, maintenance-free.
Good resistance to
Gasoline, oil, benzene, toluene, aromatic and non aromatic hydrocarbons, alcohols, glycols, solvents and many chemicals.
Measuring wheels MR200KR
Circumference 200 mm,
Surface finish: Metal, knurled
Fields of application: Pasteboard, wood, certain textiles.
For encoder with shaft Ø 6 mm or 10 mm.
Measuring wheels MRA200KR
Circumference 200 mm,
Surface finish: Metal, knurled
Fields of application: Pasteboard, wood, textiles, rubber, soft plastic.
For encoder with shaft Ø 6 mm, Ø 10 mm or Ø 12 mm.
Measuring wheels MR200KH
Circumference 200 mm,
Surface finish: Synthetic (Hytrel, even)
Fields of application: Plastic, painted surfaces, paper, pasteboard, wood, metal, textiles.
For encoder with shaft Ø 6 mm or 10 mm.
Measuring wheels MRA200KH
Circumference 200 mm,
Surface finish: Synthetic (Polyurethan, even)
Fields of application: greased metal, steal profiles, painted surfaces, plastic, paper, pasteboard, wood, textiles, wire, leather.
For encoder with shaft Ø 6 mm, Ø 10 mm or Ø 12 mm.
Measuring wheels MR200NG
Circumference 200 mm,
Surface finish: Synthetic (pimpled rubber)
Fields of application: Textiles.
For encoder with shaft Ø 6 mm or 10 mm.
Measuring wheels MRA200NG
Circumference 200 mm,
Surface finish: Synthetic (pimpled Polyurethan)
Fields of application: rough textiles, carpet, cable measuring, fleece, paper, pasteboard, wood, plastic.
For encoder with shaft Ø 6 mm, Ø 10 mm or Ø 12 mm.
Measuring wheels MR200KG
Circumference 200 mm,
Surface finish: Synthetic (Hytrel, fluted)
Fields of application: Plastic, painted surfaces, paper, pasteboard, wood, metal, textiles.
For encoder with shaft Ø 6 mm or 10 mm.
Measuring wheels MRA200KG
Circumference 200 mm,
Surface finish: Synthetic (Polyurethan, fluted)
Fields of application: metal ungreased, painted surfaces, plastic, paper, pasteboard, wood, textiles, glas, floor coverings.
For encoder with shaft Ø 6 mm, Ø 10 mm or Ø 12 mm.
