WDGN 58B

Shaft Encoder configurable via Smartphone (NFC), WDGN 58B,
incremental quadrature, magnetic,
Clamping flange: Ø 58 mm

Shaft: Ø 6 mm, Ø 8 mm, Ø 3/8" (9.525 mm), Ø 10 mm,
resolution up to 16384 ppr and HTL/TTL configurable via NFC,
Signal shape: square-wave.

Data sheet General technical Data and safety instructions incremental encoders WDGN (PDF 791 kB)
Highlights
  • Due to high quality electronics any number of pulses up to 16384 configurable via NFC
  • HTL/TTL configurable via NFC
  • Protection class IP67, at shaft input IP65
  • High output frequency up to 1 MHz
  • Reverse polarity protection and short-circuit protection at 4.75 VDC to 32 VDC
Product details
Flange
clamping flange
Pulses per revolution PPR
1 PPR up to 16384 PPR
Housing
Ø 58 mm
Stainless steel, NFC cover: Thermoplastic polyamide
Shaft
Ø 6 mm
Advice: Attention: No option AAO = full IP67 version
Shaft length: L: 12 mm
Max. Permissible shaft loading radial: 125 N
Max. Permissible shaft loading axial: 120 N
Ø 8 mm
Advice: Attention: No option AAO = full IP67 version
Shaft length: L: 19 mm
Max. Permissible shaft loading radial: 125 N
Max. Permissible shaft loading axial: 120 N
Ø 9.525 mm, Ø 3/8"
Advice: Attention: No option AAO = full IP67 version
Shaft length: L: 20 mm, L: 0.787 in
Max. Permissible shaft loading radial: 220 N, 22.434 kp
Max. Permissible shaft loading axial: 120 N, 12.237 kp
Ø 10 mm
Shaft length: L: 20 mm
Max. Permissible shaft loading radial: 220 N
Max. Permissible shaft loading axial: 120 N
Max. operating speed
8000 rpm
Output circuit
HTL
HTL, inv.
TTL
TTL, RS422 compatible, inv.
Output frequency
HTL up to 16384 ppr, max. 600 kHz
TTL up to 16384 ppr, max. 1 MHz
Power supply
4,75 VDC up to 32 VDC
Current consumption: typ. 80 mA

Nullimpuls setzen:

Setzen: SET = +UB für 2 s
Deaktiviert: SET = GND

Configurable via NFC:

BASIC: (BAS)

Channels:

ABN and inverted

HTL / TTL

freely selectable

Pulses / revolution:

1 ppr up to 16384 ppr freely selectable

Advanced (ADV):

Channels:

4 channels configurable + inv. signals (ABN possible)

HTL / TTL:

freely selectable

Pulses / revolution:

1 ppr up to 16384 ppr freely selectable

Number of pulses for each channel:

individually selectable

Set zero pulse:

yes

Pulse width and position:

Width and position adjustable

Environmental data

Noise immunity:

ESD (DIN EN 61000-4-2):

8 kV

EMC:
(DIN EN 61000-4-3):

10 V/m

Burst (DIN EN 61000-4-4):

2 kV

High frequency fields
(DIN EN 61000-4-6):

10 V

Surge (DIN EN 61000-4-5):

2 kV

Radio interference:

According DIN EN 55011

NFC:

EMC:

According ETSI EN 301 489

RED:

According ETSI EN 300 330

Electrical safety:

According DIN EN 61010-1, UL 61010-1,  CSA C22.0 No. 61010-1-12

Vibration:
(DIN EN 60068-2-6)

300 m/s2 (10 Hz up to 2000 Hz)

Shock:
(DIN EN 60068-2-27)

1000 m/s2 (6 ms)

Design:

According DIN VDE 0160

Duty information

Customs tariff number:

90318020

Country of origin:

Germany

Operating temperature
Connector: -40 °C up to +85 °C, cable: -20 °C up to +80 °C
Protection class
Housing: IP65, IP67; shaft sealed: IP65; cable outlet K1: IP40
STEP viewer / STEP data:

Your desired STEP file is not listed:
Request STEP file here

Description ABN inv. poss.

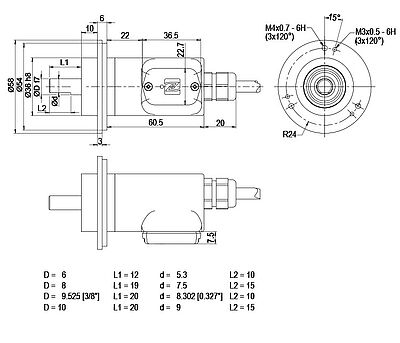

L2 axial, shield connected to encoder housing
Assignments
 L2
CircuitBAS
GNDWH
(+) VccBN
AGN
BYE
NGY
A inv.RD
B inv.BK
N inv.VT
Shieldflex
STEP viewer / STEP data:

Your desired STEP file is not listed:
Request STEP file here

Description ABN inv. poss.
L2 axial, shield connected to encoder housing
Assignments
 L2
CircuitADV
GNDWH
(+) VccBN
CH1GN
CH2YE
CH3GY
CH4GYPK
SETPK
CH1 inv.RD
CH2 inv.BK
CH3 inv.VT
CH4 inv.RDBU
Shieldflex
STEP viewer / STEP data:

Your desired STEP file is not listed:
Request STEP file here

Description ABN inv. poss.

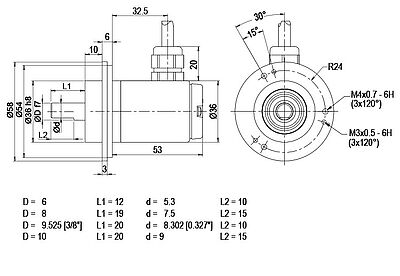

L3 radial, shield connected to encoder housing
Assignments
 L3
CircuitBAS
GNDWH
(+) VccBN
AGN
BYE
NGY
A inv.RD
B inv.BK
N inv.VT
Shieldflex
STEP viewer / STEP data:

Your desired STEP file is not listed:
Request STEP file here

Description ABN inv. poss.
L3 radial, shield connected to encoder housing
Assignments
 L3
CircuitADV
GNDWH
(+) VccBN
CH1GN
CH2YE
CH3GY
CH4GYPK
SETPK
CH1 inv.RD
CH2 inv.BK
CH3 inv.VT
CH4 inv.RDBU
Shieldflex
STEP viewer / STEP data:

Your desired STEP file is not listed:
Request STEP file here

Description ABN inv. poss.

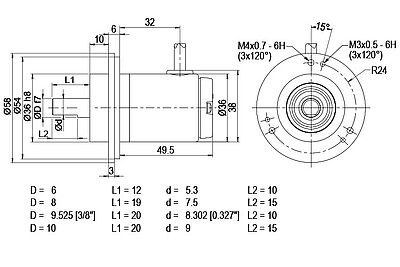

K1 radial, shield not connected (IP40)
Assignments
 K1
CircuitBAS
GNDWH
(+) VccBN
AGN
BYE
NGY
A inv.RD
B inv.BK
N inv.VT
Shieldflex
STEP viewer / STEP data:

Your desired STEP file is not listed:
Request STEP file here

Description ABN inv. poss.
K1 radial, shield not connected (IP40)
Assignments
 K1
CircuitADV
GNDWH
(+) VccBN
CH1GN
CH2YE
CH3GY
CH4GYPK
SETPK
CH1 inv.RD
CH2 inv.BK
CH3 inv.VT
CH4 inv.RDBU
Shieldflex
STEP viewer / STEP data:

Your desired STEP file is not listed:
Request STEP file here

Description ABN inv. poss.
SB8 axial, 8-pin, Connector connected to encoder housing
Assignments
SB8
 8-pin
connector drawing
CircuitBAS
GND1
(+) Vcc2
A3
B4
N5
A inv.6
B inv.7
N inv.8
STEP viewer / STEP data:

Your desired STEP file is not listed:
Request STEP file here

Description ABN inv. poss.
SB12 axial, 12-pin, Connector connected to encoder housing
Assignments
SB12
 12-pin
connector drawing
CircuitADV
GND3
(+) Vcc1
CH14
CH26
CH38
CH411
SET5
CH1 inv.9
CH2 inv.7
CH3 inv.10
CH4 inv.12
n. c.2
STEP viewer / STEP data:

Your desired STEP file is not listed:
Request STEP file here

Description ABN inv. poss.
SC8 radial, 8-pin, Connector connected to encoder housing
Assignments
SC8
 8-pin
connector drawing
CircuitBAS
GND1
(+) Vcc2
A3
B4
N5
A inv.6
B inv.7
N inv.8
STEP viewer / STEP data:

Your desired STEP file is not listed:
Request STEP file here

Description ABN inv. poss.
SC12 radial, 12-pin, Connector connected to encoder housing
Assignments
SC12
 12-pin
connector drawing
CircuitADV
GND3
(+) Vcc1
CH14
CH26
CH38
CH411
SET5
CH1 inv.9
CH2 inv.7
CH3 inv.10
CH4 inv.12
n. c.2
configurable 1-16384 PPR
Power supply VDC
4.75 - 32 VDC
Current consumption
typ. 80 mA
Signal shape
square-wave
Output circuit
configurable HTL, TTL (A,B,N + inv.)
Channels
AB, ABN, and inverted signals
Output
push-pull
Load
max. 40 mA / channel
Signal level mA
at 20 mA
Signal level H>
HTL: H > UB - 2.5 VDC; TTL: H > 2.5 VDC
Signal level L<
L < 2.5 VDC
Output frequency
HTL: max. 600 kHZ; TTL: max. 1 MHz
Circuit protection
no
Light reserve warning
no
Power supply VDC
4.75 - 32 VDC
Current consumption
typ. 80 mA
Signal shape
square-wave
Output circuit
configurable HTL, TTL; 4 channels+inv.
Channels
CH1, CH2, CH3, CH4, and inverted signals, (ABN poss.)
Output
push-pull
Load
max. 40 mA / channel
Signal level mA
at 20 mA
Signal level H>
HTL: H > UB - 2.5 VDC; TTL: H > 2.5 VDC
Signal level L<
L < 2.5 VDC
Output frequency
HTL: max. 600 kHZ; TTL: max. 1 MHz
Circuit protection
no
Light reserve warning
no

The encoder WDGN 58B can be supplied in a IP67 version.
(full IP67 only connection SB, SC, L2 or L3 version; not cable connection K1 = IP40).
Max. RPM:                        3500 min'-1
Permitted Shaft-Loading:  axial 100 N; radial 110 N
Starting-torque:                 approx. 4 Ncm at ambient temperature

The encoder WDGN 58B can be supplied with more than 2 m cable. The maximum cable length depends on the supply voltage and the frequency; see 'General Technical Data'
Please extend the standard order code with a three figure number, specifying the cable length in decimetres.
Example: 5 m cable = 050
General technical Data and safety instructions incremental encoders WDGN
General technical Data and safety instructions incremental encoders WDGN

App Icon WACHENDORFF WDGN
Wachendorff App iOS encoder WDGN

QR-Code Wachendorff WDGN App IOS

external link Download Wachendorff App IOS Encoder WDGN

By downloading and using software and apps
from this homepage, I agree to the GTC and
the supplementary software clause.

App Icon WACHENDORFF WDGN
Google Play Store Android - Wachendorff encoder App WDGN

QR-Wachendorff-WDGN-App-Adroid

external link Downloadlink Wachendorff App Android encoder WDGN

By downloading and using software and apps
from this homepage, I agree to the GTC and
the supplementary software clause.

App Icon WACHENDORFF WDGN
AppGallery Huawei - Wachendorff App encoder WDGN

Wachendorff App Huawei Drehgeber WDGN

external link Downloadlink Wachendorff App Huawei Encoder WDGN

By downloading and using software and apps
from this homepage, I agree to the GTC and
the supplementary software clause.

Manual WDGN App
Setup incremental encoder WDGN

NFC configurable via Wachendorff App (IOS, Android, Huawei)

Handout Configurable encoder WDGN

As simple and secure as contactless payment

Kurzkatalog Drehgeber - Short catalogue encoders
Short-Catalogue Encoders and systems

  • Incremental and absolute encoders
  • Digital shaft copying
  • Made in Germany
  • Motorfeedback
  • Position Measurement Systems

Delivery times and service
Delivery times and service

of Wachendorff Automation GmbH & Co. KG

Montageanleitung WDGN
Assembly instructions for encoders WDGN

Whitepaper optisch und magnetisch Inkremental
Whitepaper


Comparison of optical and magnetic incremental encoders

EU - Konformitätserklärung Inkremental-Drehimpulsgeber WDGN
EU declaration of conformity incremental encoder WDGN

UKCA declaration of conformity incremental encoder WDGN
UKCA declaration of conformity incremental encoder WDGN

for Wachendorff Automation GmbH & Co. KG.

UL Certificates for Wachendorff Automation Products 2014-03-28
UL Certificates

for Wachendorff Automation products.

REACH regulation
REACH- and RoHS regulation of the EU

Information

ISO Zertifikat DIN EN 9001:2015
ISO Certificate DIN EN 9001:2015

NFC Desktop Reader
NFCUSBREADER

NFC Desktop Reader

for parameterizing all WDGN encoders via PC/notebook

KI867 Drehgeber Kabeldose
KI-8-67

Female connector KI-8-67:
Suitable for encoder with sensor connector outlet SB8 and SC8, 8 pin, IP67

Ready-made shielded connection cable with female cable connector straight,
shield connected.

KIA867 Drehgeber Kabeldose
KIA-8-67

Female connector KIA-8-67:
Suitable for encoder with sensor connector outlet SB8 and SC8, 8 pin, IP67

Ready-made shielded connection cable with female cable connector angular,
shield connected.

KI1267 Drehgeber Kabeldose
KI-12-67-ADV

Female connector KI-12-67-ADV:
Suitable for NFC encoder WDGN configurable via NFC with sensor connector outlet SB12 and SC12, 12 pin, IP67

Ready-made shielded connection cable with female cable connector straight,
shield connected.

KIA1267 Drehgeber Kabeldose
KIA-12-67-ADV

Female connector KIA-12-67-ADV:
Suitable for encoder WDGN configurable via NFC with sensor connector outlet SB12 and SC12, 12 pin, IP67

Ready-made shielded connection cable with female cable connector angular,
shield connected.

SP300 Drehgeber Spannexzenter
SP-3-00

Clamping claw SP-3-00

suitable for incremental encoder WDG 40A, 50B, 58T, WDGI 58A, 58B, 58C, 58D, 58K, 63B, WDGP 36A, WDGP 58A, WDGP 58B and absolute encoder WDGA 36A, WDGA 58A, WDGA 58B.

external link STEP file

ST27 Kupplung Drehgeber
ST27

Jointed coupling ST27

for encoder with shaft Ø 6 mm or 10 mm

PK20 Kupplung Drehgeber
PK20

Slit coupling PK20

for encoder with shaft Ø 6 mm.

PK24 Kupplung Drehgeber
PK24

Slit coupling PK24

for encoder with shaft Ø 6 mm, 8 mm or 10 mm.

FSK22 Kupplung Drehgeber
FSK22

Spring disc coupling FSK22

for encoder with shaft Ø 6 mm, 10 mm or 12 mm.

WK22 Kupplung Drehgeber
WK22

Helical coupling WK22

for encoder with shaft Ø 6 mm.

WK24 Kupplung Drehgeber
WK24

Helical coupling WK24

for encoder with shaft Ø 6 mm, 8 mm, 10 mm or 12 mm.

external link STEP-Download WK240610

WK32 Kupplung Drehgeber
WK32

Helical coupling WK32

for encoder with shaft Ø 6 mm or 10 mm.

BK29 Kupplung Drehgeber
BK29

Bellows coupling BK29

for encoder with shaft Ø 6 mm, 8 mm, 10 mm or 12 mm*.
Max. offset of shafts radial: ± 0,25 mm or ± 0,30 mm*
Torsion spring stiffness: 150 Nm/rad or 130 Nm/rad*

FB29B Kupplung Drehgeber
FB29B

Bellows coupling FB29B

for encoder with shaft Ø 4 mm, 6 mm, 8 mm, 10 mm or 12 mm.

DSK29 Kupplung Drehgeber
DSK29

Double loop coupling DSK29

for encoder with shaft Ø 6 mm, 8 mm or 10 mm.
No moving parts, thermally and electrically insulating, smooth running, maintenance-free.
Good resistance to
Gasoline, oil, benzene, toluene, aromatic and non aromatic hydrocarbons, alcohols, glycols, solvents and many chemicals.

external link STEP Download DSK290606

external link STEP Download DSK290610

DSK38 Kupplung Drehgeber
DSK38

Double loop coupling DSK38

for encoder with shaft Ø 6 mm, 8 mm, 10 mm or 12 mm.
No moving parts, thermally and electrically insulating, smooth running, maintenance-free.
Good resistance to
Gasoline, oil, benzene, toluene, aromatic and non aromatic hydrocarbons, alcohols, glycols, solvents and many chemicals.

external link STEP-Datei DSK380606

WDGMA5005x

Spring-loaded arm for encoder types
58B, 58D, 58K, 58N and 58T

WDGMA5105x

Spring-loaded arm for encoder types
58B, 58D, 58K, 58N and 58T

WDGMA10000 Federarm Drehgeber
WDGMA10000

Spring-loaded arm for encoder types
58B, 58D, 58K, 58N and 58T

for length determination

 STEP download WDGMA10000_A
​​​​​​​ STEP download WDGMA10000_B
​​​​​​​ STEP download WDGMA10000_C

DH10000
WDGDH10000

Linear equilization shaft encoder holder for encoder types 58B, 58D, 58K, 58N and 58T

for lenght determination

 STEP download WDGDH10000.stp

MR150GR Messrad Drehgeber Measuring wheel encoder
MR150GR06

Measuring wheel MR150GR06

Circumference: 150 mm,
Surface finish: O-ring 3,5 mm, material NBR70
Fields of application: Wood, metal, conveyor belts, paper, textiles.
For encoders with shaft Ø 6 mm.

external link STEP MR150GR06.stp

MR200KR Messrad Drehgeber
MR200KR

Measuring wheels MR200KR

Circumference 200 mm,
Surface finish: Metal, knurled
Fields of application: Pasteboard, wood, certain textiles.
For encoder with shaft Ø 6 mm or 10 mm.

MRA200KR Messrad Drehgeber
MRA200KR

Measuring wheels MRA200KR

Circumference 200 mm,
Surface finish: Metal, knurled
Fields of application: Pasteboard, wood, textiles, rubber, soft plastic.
For encoder with shaft Ø 6 mm, Ø 10 mm or Ø 12 mm.

external link STEP file MRA200KR06 bore-hole Ø 6 mm

MR200KH Messrad Drehgeber
MR200KH

Measuring wheels MR200KH

Circumference 200 mm,
Surface finish: Synthetic (Hytrel, even)
Fields of application: Plastic, painted surfaces, paper, pasteboard, wood, metal, textiles.
For encoder with shaft Ø 6 mm or 10 mm.

MRA200KH Messrad Drehgeber
MRA200KH

Measuring wheels MRA200KH

Circumference 200 mm,
Surface finish: Synthetic (Polyurethan, even)
Fields of application: greased metal, steal profiles, painted surfaces, plastic, paper, pasteboard, wood, textiles, wire, leather.
For encoder with shaft Ø 6 mm, Ø 10 mm or Ø 12 mm.

external link STEP file MRA200KH10 bore hole Ø 10 mm

MR200NG Messrad Drehgeber
MR200NG

Measuring wheels MR200NG

Circumference 200 mm,
Surface finish: Synthetic (pimpled rubber)
Fields of application: Textiles.
For encoder with shaft Ø 6 mm or 10 mm.

MRA200NG Messrad Drehgeber
MRA200NG

Measuring wheels MRA200NG

Circumference 200 mm,
Surface finish: Synthetic (pimpled Polyurethan)
Fields of application: rough textiles, carpet, cable measuring, fleece, paper, pasteboard, wood, plastic.
For encoder with shaft Ø 6 mm, Ø 10 mm or Ø 12 mm.

MR200KG Messrad Drehgeber
MR200KG

Measuring wheels MR200KG

Circumference 200 mm,
Surface finish: Synthetic (Hytrel, fluted)
Fields of application: Plastic, painted surfaces, paper, pasteboard, wood, metal, textiles.
For encoder with shaft Ø 6 mm or 10 mm.

MRA200KG Messrad Drehgeber
MRA200KG

Measuring wheels MRA200KG

Circumference 200 mm,
Surface finish: Synthetic (Polyurethan, fluted)
Fields of application: metal ungreased, painted surfaces, plastic, paper, pasteboard, wood, textiles, glas, floor coverings.
For encoder with shaft Ø 6 mm, Ø 10 mm or Ø 12 mm.

MRA500KR Messrad Drehgeber
MRA500KR

Measuring wheels MRA500KR

Circumference 500 mm,
Surface finish: Metal, knurled
Fields of application: Pasteboard, wood, textiles, rubber, soft plastic.
For encoder with shaft Ø 10 mm or Ø 12 mm.

MR500KR Messrad Drehgeber
MR500KR

Measuring wheel MR500KR

Circumference 500 mm,
Surface finish: Metal, knurled
Fields of application: Pasteboard, wood, (textiles).
For encoder with shaft Ø 10 mm.

MR500KH Messrad Drehgeber
MR500KH

Measuring wheel MR500KH

Circumference 500 mm,
Surface finish: Synthetic (Hytrel, even)
Fields of application: Plastic, painted surfaces, paper, pasteboard, wood, metal, textiles.
For encoder with shaft Ø 10 mm.

MRA500KH Messrad Drehgeber
MRA500KH

Measuring wheels MRA500KH

Circumference 500 mm,
Surface finish: Synthetic (Polyurethan, even)
Fields of application: greased metal, steal profiles, painted surfaces, plastic, paper, pasteboard, wood, textiles, wire, leather.
For encoder with shaft Ø 10 mm or Ø 12 mm.

MR500KG Messrad Drehgeber
MR500KG

Measuring wheel MR500KG

Circumference 500 mm,
Surface finish: Synthetic (Hytrel, fluted)
Fields of application: Plastic, painted surfaces, paper, pasteboard, wood, metal, textiles.
For encoder with shaft Ø 10 mm.

MRA500KG Messrad Drehgeber
MRA500KG

Measuring wheels MRA500KG

Circumference 500 mm,
Surface finish: Synthetic (Polyurethan, fluted)
Fields of application: metal ungreased, painted surfaces, plastic, paper, pasteboard, wood, textiles, glas, floor coverings.
For encoder with shaft Ø 10 mm or Ø 12 mm.

MR500KV Messrad Drehgeber
MR500KV

Measuring wheel MR500KV

Circumference 500 mm,
Surface finish: Synthetic (Vulkollan®, even)
Fields of application: Plastic, painted surfaces, paper, pasteboard, wood, metal, wire .
For encoder with shaft Ø 10 mm.

external link STEP file MR500KV10 bore-hole Ø 10 mm

MR500NG Messrad Drehgeber
MR500NG

Measuring wheel MR500NG

Circumference 500 mm.
Surface finish: pimpled rubber
Fields of application: Textiles
For encoder with shaft Ø 10 mm.

MRA500NG Messrad Drehgeber
MRA500NG

Measuring wheels MRA500NG

Circumference 500 mm,
Surface finish: Synthetic (pimpled Polyurethan)
Fields of application: rough textiles, carpet, cable measuring, fleece, paper, pasteboard, wood, plastic.
For encoder with shaft Ø 10 mm or Ø 12 mm.

MRA200GR Messrad Drehgeber Measuring wheel encoder
MRA200GR10

Measuring wheel MRA200GR10

Circumference: 200 mm,
Surface finish: O-ring 3,5 mm, material NBR70
Fields of application: Wood, painted surfaces, paper, plastics.
For encoders with shaft Ø 10 mm.

external link STEP MRA200GR10.stp

Generally encoder specifications

Incremental encoder specifications

Electrical connection

Cable outlet
Connector

Your configured order code

ShaftPPRChannelsOutputConnectionOption
WDGN 58B
distributors
For further information please contact our local distributor.
Here you find a list of our distributors worldwide
You want to get an offer or want a recall. Request
