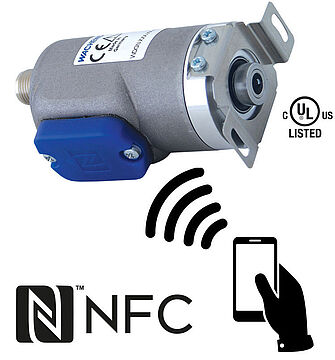

Shaft Encoder configurable via Smartphone (NFC), WDGN 36E,
incremental quadrature, magnetic,

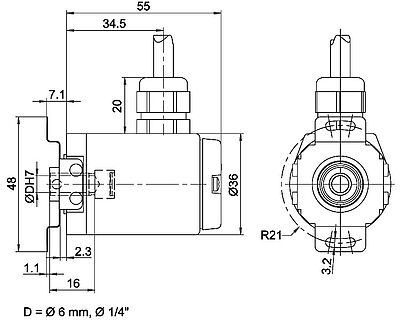

Housing: Ø 36 mm
Hollow bore blind: Ø 6 mm, Ø 1/4" (6.35 mm);
resolution up to 16384 ppr and HTL/TTL configurable via NFC,
Signal shape: square-wave.
- Due to high quality electronics any number of pulses up to 16384 configurable via NFC
- HTL/TTL configurable via NFC
- Protection class IP67, at shaft input IP65
- High output frequency up to 1 MHz
- Reverse polarity protection and short-circuit protection at 4.75 VDC to 32 VDC
Insertion depth min.: 8 mm
Insertion depth max.: 17 mm
Max. Permissible shaft loading radial: 80 N
Max. Permissible shaft loading axial: 50 N
Insertion depth min.: 8 mm
Insertion depth max.: 17 mm
Max. Permissible shaft loading radial: 80 N
Max. Permissible shaft loading axial: 50 N
Current consumption: typ. 80 mA
Nullimpuls setzen:
Setzen: SET = +UB für 2 s
Deaktiviert: SET = GND
Configurable via NFC:
BASIC: (BAS)
Channels:
ABN and inverted
HTL / TTL
freely selectable
Pulses / revolution:
1 ppr up to 16384 ppr freely selectable
Advanced (ADV):
Channels:
4 channels configurable + inv. signals (ABN possible)
HTL / TTL:
freely selectable
Pulses / revolution:
1 ppr up to 16384 ppr freely selectable
Number of pulses for each channel:
individually selectable
Set zero pulse:
yes
Pulse width and position:
Width and position adjustable
Environmental data
Noise immunity:
ESD (DIN EN 61000-4-2):
8 kV
EMC:
(DIN EN 61000-4-3):
10 V/m
Burst (DIN EN 61000-4-4):
2 kV
High frequency fields
(DIN EN 61000-4-6):
10 V
Surge (DIN EN 61000-4-5):
2 kV
Radio interference:
According DIN EN 55011
NFC:
EMC:
According ETSI EN 301 489
RED:
According ETSI EN 300 330
Electrical safety:
According DIN EN 61010-1, UL 61010-1, CSA C22.0 No. 61010-1-12
Vibration:
(DIN EN 60068-2-6)
300 m/s2 (10 Hz up to 2000 Hz)
Shock:
(DIN EN 60068-2-27)
1000 m/s2 (6 ms)
Design:
According DIN VDE 0160
Duty information
Customs tariff number:
90318020
Country of origin:
Germany
| Description | ABN inv. poss. | |
|---|---|---|
| L2 | axial, shield connected to encoder housing | ● |
| L2 | |
| Circuit | BAS |
| GND | WH |
| (+) Vcc | BN |
| A | GN |
| B | YE |
| N | GY |
| A inv. | RD |
| B inv. | BK |
| N inv. | VT |
| Shield | flex |
| Description | ABN inv. poss. | |
|---|---|---|
| L2 | axial, shield connected to encoder housing | ● |
| L2 | |
| Circuit | ADV |
| GND | WH |
| (+) Vcc | BN |
| CH1 | GN |
| CH2 | YE |
| CH3 | GY |
| CH4 | GYPK |
| SET | PK |
| CH1 inv. | RD |
| CH2 inv. | BK |
| CH3 inv. | VT |
| CH4 inv. | RDBU |
| Shield | flex |
| Description | ABN inv. poss. | |
|---|---|---|
| L3 | radial, shield connected to encoder housing | ● |
| L3 | |
| Circuit | BAS |
| GND | WH |
| (+) Vcc | BN |
| A | GN |
| B | YE |
| N | GY |
| A inv. | RD |
| B inv. | BK |
| N inv. | VT |
| Shield | flex |
| Description | ABN inv. poss. | |
|---|---|---|
| L3 | radial, shield connected to encoder housing | ● |
| L3 | |
| Circuit | ADV |
| GND | WH |
| (+) Vcc | BN |
| CH1 | GN |
| CH2 | YE |
| CH3 | GY |
| CH4 | GYPK |
| SET | PK |
| CH1 inv. | RD |
| CH2 inv. | BK |
| CH3 inv. | VT |
| CH4 inv. | RDBU |
| Shield | flex |
| Description | ABN inv. poss. | |
|---|---|---|
| K1 | radial, shield not connected (IP40) | ● |
| K1 | |
| Circuit | BAS |
| GND | WH |
| (+) Vcc | BN |
| A | GN |
| B | YE |
| N | GY |
| A inv. | RD |
| B inv. | BK |
| N inv. | VT |
| Shield | flex |
| Description | ABN inv. poss. | |
|---|---|---|
| K1 | radial, shield not connected (IP40) | ● |
| K1 | |
| Circuit | ADV |
| GND | WH |
| (+) Vcc | BN |
| CH1 | GN |
| CH2 | YE |
| CH3 | GY |
| CH4 | GYPK |
| SET | PK |
| CH1 inv. | RD |
| CH2 inv. | BK |
| CH3 inv. | VT |
| CH4 inv. | RDBU |
| Shield | flex |
| Description | ABN inv. poss. | |
|---|---|---|
| SB8 | axial, 8-pin, Connector connected to encoder housing | ● |
| Description | ABN inv. poss. | |
|---|---|---|
| SB12 | axial, 12-pin, Connector connected to encoder housing | ● |
| Description | ABN inv. poss. | |
|---|---|---|
| SC8 | radial, 8-pin, Connector connected to encoder housing | ● |
| Description | ABN inv. poss. | |
|---|---|---|
| SC12 | radial, 12-pin, Connector connected to encoder housing | ● |
configurable 1-16384 PPR
Please extend the standard order code with a three figure number, specifying the cable length in decimetres.
Example: 5 m cable = 050
Download Wachendorff App IOS Encoder WDGN
By downloading and using software and apps
from this homepage, I agree to the GTC and
the supplementary software clause.
Downloadlink Wachendorff App Android encoder WDGN
By downloading and using software and apps
from this homepage, I agree to the GTC and
the supplementary software clause.
Downloadlink Wachendorff App Huawei Encoder WDGN
By downloading and using software and apps
from this homepage, I agree to the GTC and
the supplementary software clause.
NFC configurable via Wachendorff App (IOS, Android, Huawei)
Download (1.29 MB)
for Wachendorff Automation GmbH & Co. KG.
Download (349 KB)
Female connector KI-8-67:
Suitable for encoder with sensor connector outlet SB8 and SC8, 8 pin, IP67
Ready-made shielded connection cable with female cable connector straight,
shield connected.
Female connector KIA-8-67:
Suitable for encoder with sensor connector outlet SB8 and SC8, 8 pin, IP67
Ready-made shielded connection cable with female cable connector angular,
shield connected.
Female connector KI-12-67-ADV:
Suitable for NFC encoder WDGN configurable via NFC with sensor connector outlet SB12 and SC12, 12 pin, IP67
Ready-made shielded connection cable with female cable connector straight,
shield connected.
Female connector KIA-12-67-ADV:
Suitable for encoder WDGN configurable via NFC with sensor connector outlet SB12 and SC12, 12 pin, IP67
Ready-made shielded connection cable with female cable connector angular,
shield connected.
Torque support WDGDS10016
for hollow shaft encoder 36E with hollow shaft (blind) Ø 6 mm.
Shaft adapter WDGWA10M06
for thru-bore and hollow bore (blind) encoder Ø 10 mm
or couplings Ø 10 mm,
thread M6.
Shaft adapter WDGWA10M08
for thru-bore and hollow bore (blind) encoder Ø 10 mm
or couplings Ø 10 mm,
thread M8.
Shaft adapter WDGWA10M10
for thru-bore and hollow bore (blind) encoder Ø 10 mm
or couplings Ø 10 mm,
thread M10.
Shaft adapter WDGWA10M12
for thru-bore and hollow bore (blind) encoder Ø 10 mm
or couplings Ø 10 mm,
thread M12.
STEP file: WDGWA10M12.stp
Shaft adapter WDGWA10M14
for thru-bore and hollow bore (blind) encoder Ø 10 mm
or couplings Ø 10 mm,
thread M14.
Shaft adapter WDGWA10M16
for thru-bore and hollow bore (blind) encoder Ø 10 mm
or couplings Ø 10 mm,
thread M16.
STEP file: WDGWA10M16.stp
Shaft adapter WDGWA10M20
for thru-bore and hollow bore (blind) encoder Ø 10 mm
or couplings Ø 10 mm,
thread M20.
