MR500NG

Measuring wheel MR500NG

Circumference 500 mm.
Surface finish: pimpled rubber
Fields of application: Textiles
For encoder with shaft Ø 10 mm.

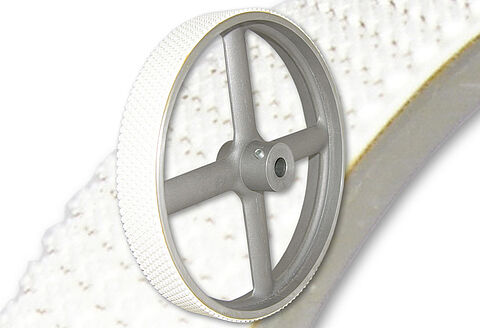

MR500NG Messrad Drehgeber
Circumference
500 mm
Surface finish
pimpled rubber (NBR Nitril)
Hardness/Shore A
50 up to 60
Wheel body material
Aluminum
Standard bore-hole
Ø 10 mm
Width
25 mm
Operating temperature
-10 °C up to +50 °C
Weight
320 g
Order number(s)
MR500NG10
Measuring wheel, bore-hole Ø 10 mm
All dimensional specifications in mm
Zeichnung Drawing MR500KR_KV_NG
