KI-8-67-SSI

Female connector KI-8-67-SSI:
Suitable for encoder absolute WDGA SSI
with connector outlet CB8 and CC8, 8 pin, IP67

Ready-made shielded connection cable
with female cable connector straight, shield connected.

KI867SSI Drehgeber Kabeldose
Construction
straight with ready made, shielded cable, shield connected
No. of contacts
8-pin
Finish of contact
Metal, CuZn, gold
Grip
Plastic, TPU
Union nut
Metal, CuZn, nickel
Protection
only when mated max. IP67
Order number(s)
KI-8-67-05-SSI
Female connector with cable (5 m)
KI-8-67-15-SSI
Female connector with cable (15 m)
KI-8-67-10-SSI
Female connector with cable (10 m)
KI-8-67-20-SSI
Female connector with cable (20 m)
KI-8-67-XX-SSI
Female connector with cable >20 m (XX=m)
Customs information:
Customs tariff number:
90319000
Country of origin:
Germany

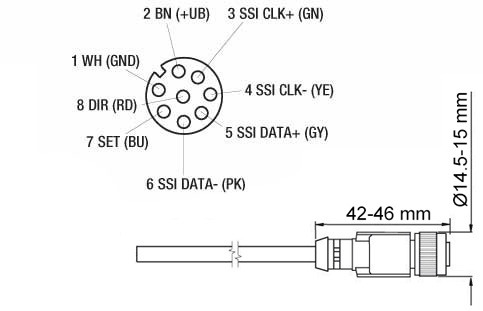

All dimensional specifications in mm
Z KI867 SSi female connector encoder
